Electrical installation
58 ─── Version: 1.0XPlanar

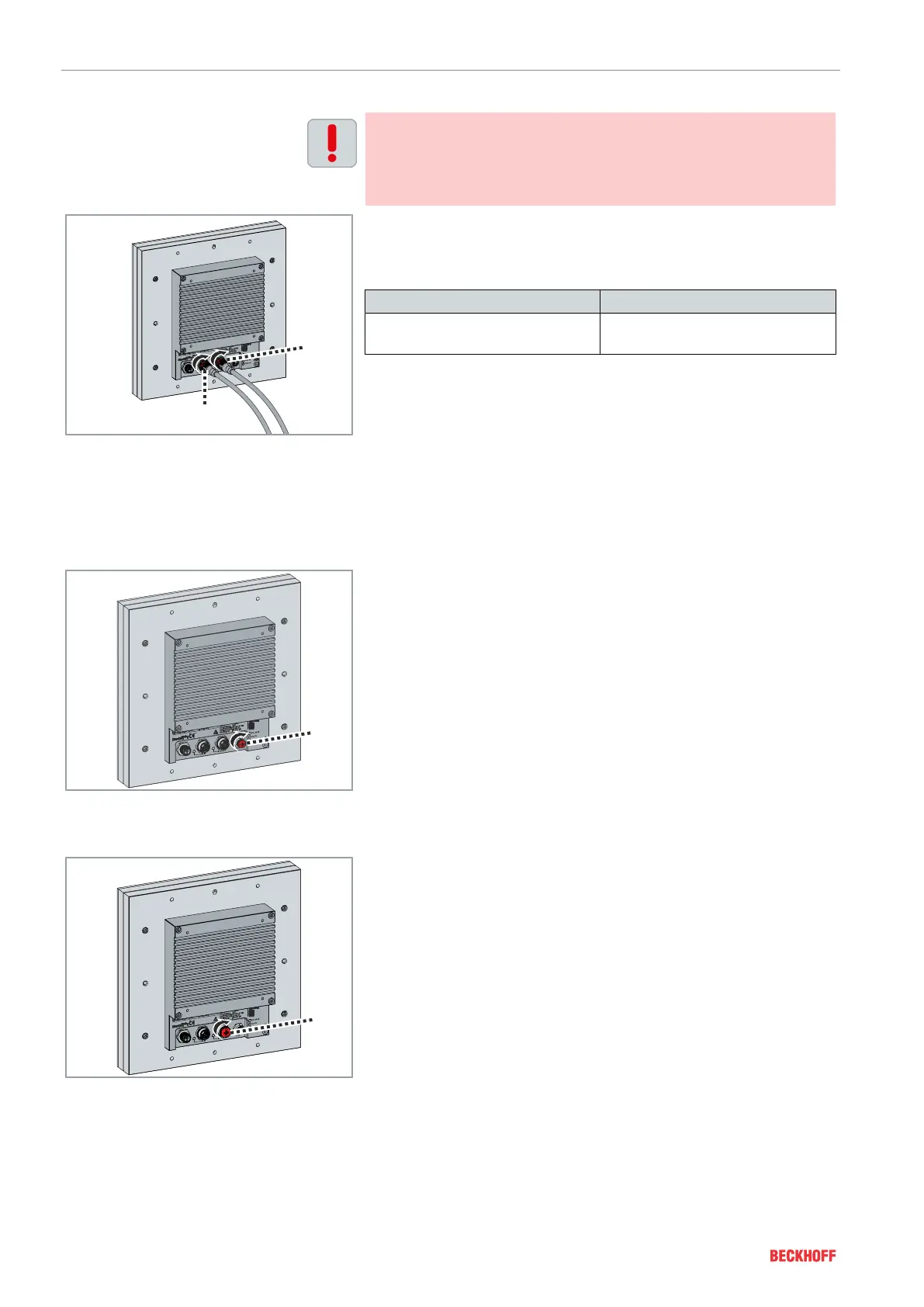

8.5.3.3Secure connector
Secure the cables correctly
The cables must be secured up to the last thread with a suitable
tool.
Cables that are not correctly secured can cause problems with the
power supply and communication.
1
2
► Screw the connector[1] to port X101IN
► If used: screw connector[2] to port X102OUT
► Observe tightening torques:
Components Tightening torque [Nm]
Connector of the EtherCATG ca-
ble
0.5
8.5.4Cover plug[+]
Beckhoff recommends terminating unused connections on the tiles
with cover plugs[+].
8.5.4.1Cover plug M8
8.5.4.1
1
► Insert cover plugM8[1] into port X103 of the tile and lock it by
turning it
8.5.4.2Cover plug M12
8.5.4.2
1
► Insert cover plugM12[1] into port X102OUT of the tile and lock
it by turning it
