Beckhoff XPlanar User Manual

Mechanical Installation – Part 2: Mover
Version: 1.0 ─── 71XPlanar
9.1.5.1.3Screws
Ensure that the screws have the correct length
Ensure that the screws have the correct length to avoid damage to
the workplace and tiles. The screws must not protrude from the
frame.
X
1
10 mm
3
2

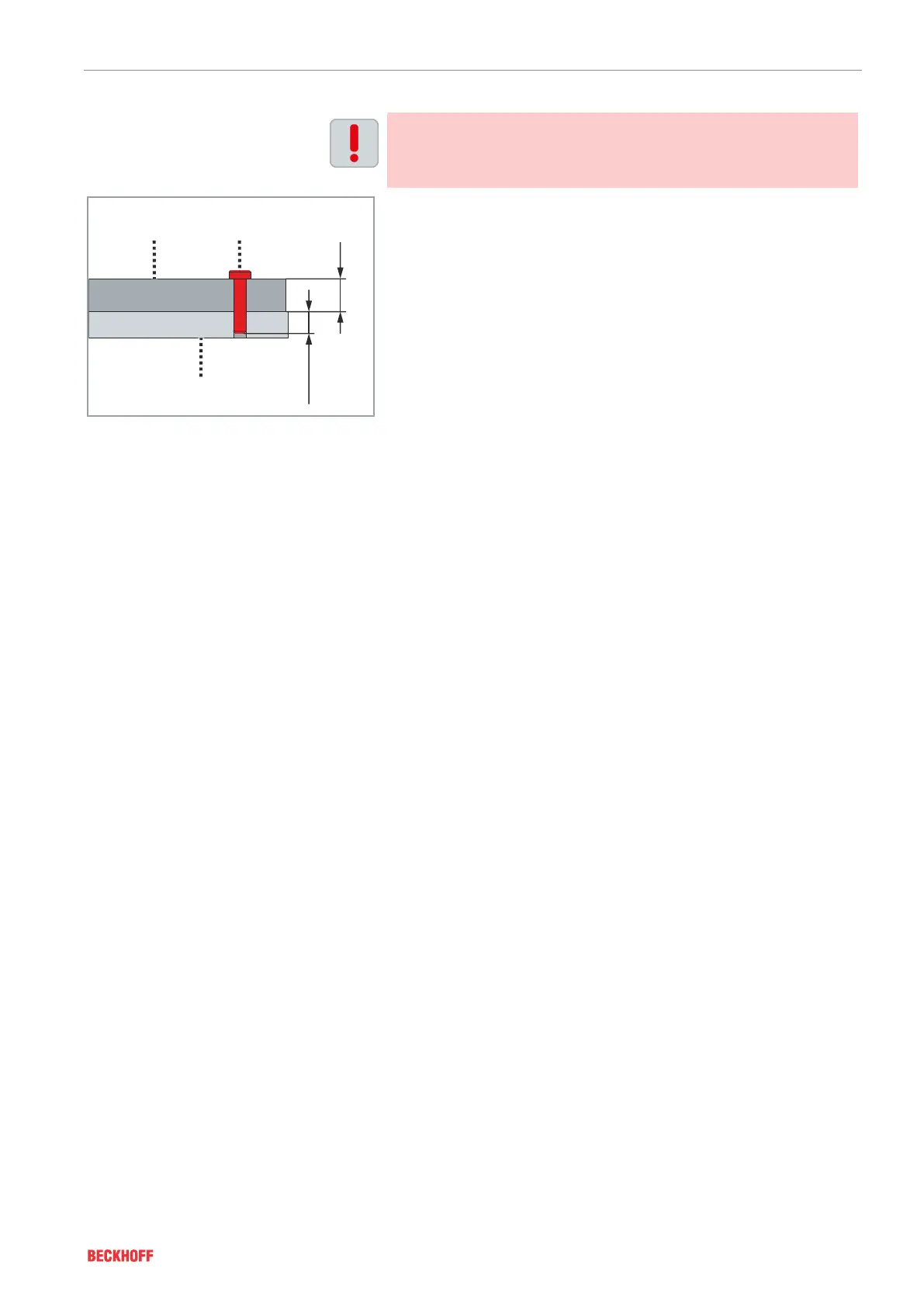

The length of the screws [1] for fastening the assembly aid [2] de-
pends on the height X of the assembly aid. Beckhoff recommends
the following screw depth in the frame[3]:
• 10mm
The M5screws must not protrude from the frame.
