Carrying out the insertion loss
measurement in compliance with
IEC 874-1, method 6.
Preparation for insertion loss
measurement, method 6
The attenuation of an optical com-
ponent has to be measured. For
this purpose a reference measure-
ment is carried out, at first. Then
the required insertion loss is deter-
mined. In the following description
a ready-made connection cable is
used as UUT.
Measurement tools required:
Multimeter 93496
Optical Power Meter OPM-110
Stabilised Light Source BEHAcom
SLS-100
2 Measurement cables
2 Measurement couplings

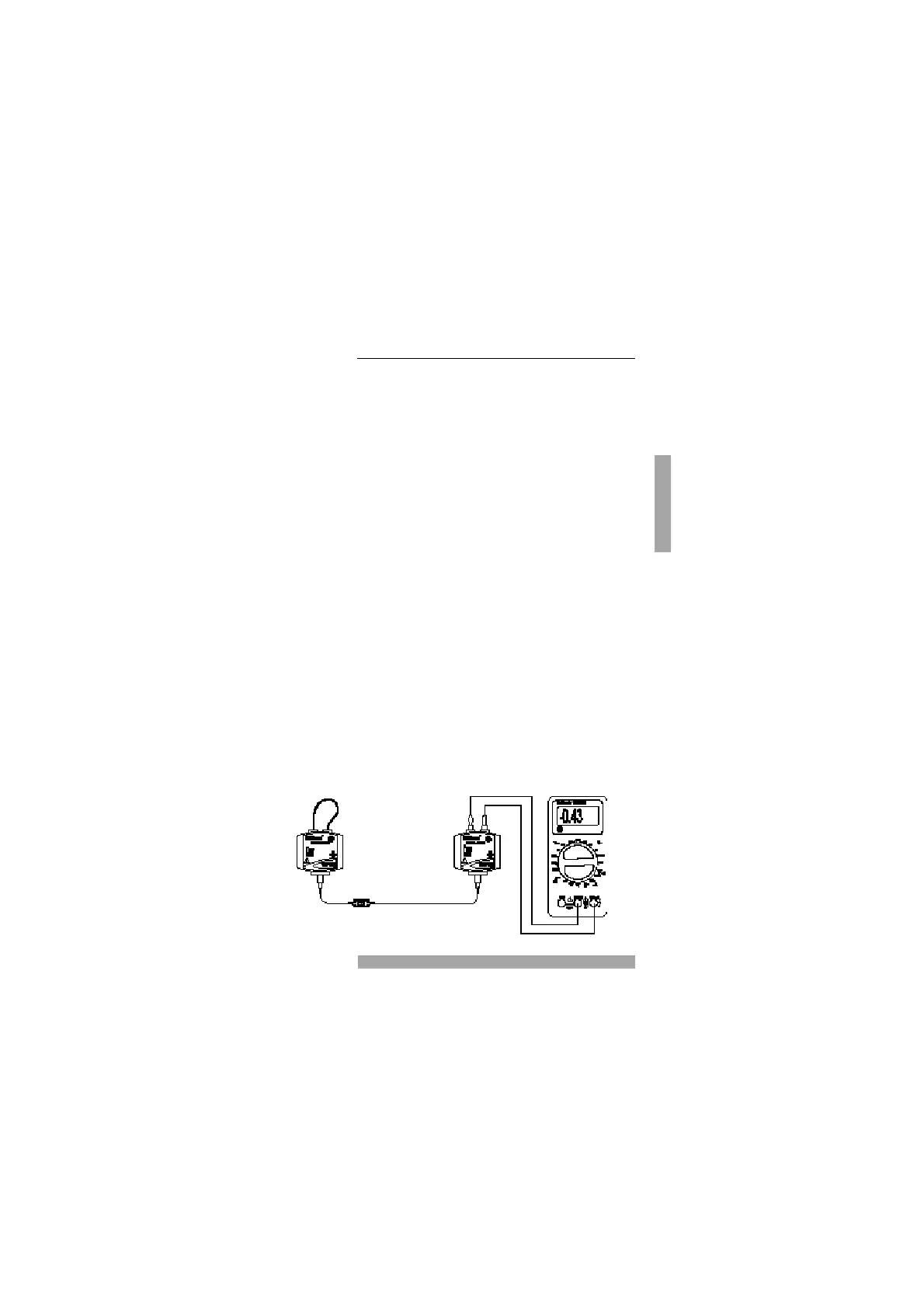

Carrying out the reference mea-
surement
The OPM and the Stabilised
Light Source SLS-100 are put
into service in compliance
with their respective instruc-
tion manuals.
