Behringer XENYX 1002B User Manual

ENGLISH
XENYX 1002B User Manual
4

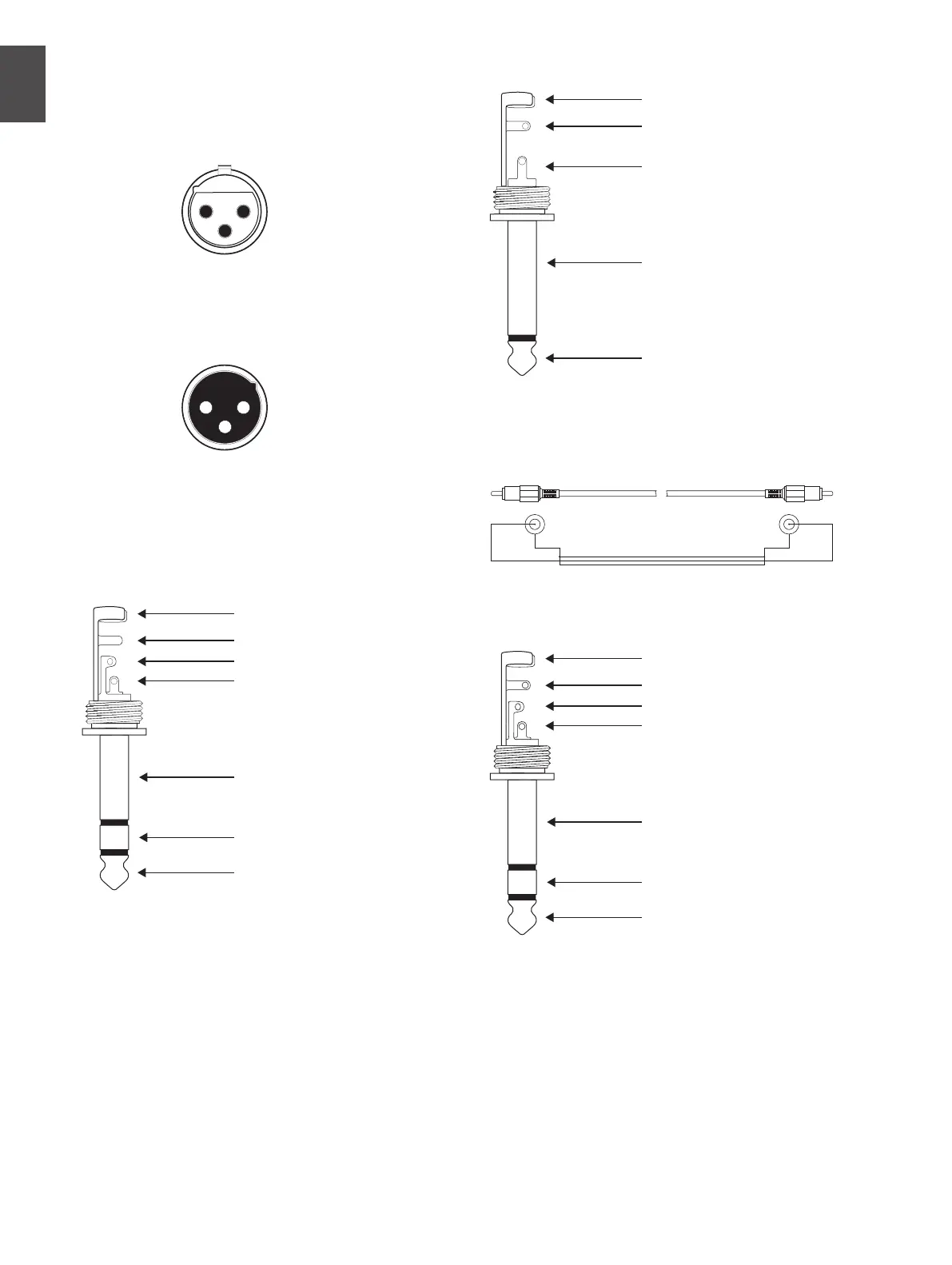

Audio Connections2.
input
output
For unbalanced use, pin 1 and pin 3 have to be bridged
1 = ground/shield
2 = hot (+ve)
3 = cold (-ve)
12
3
1
2
3
Balanced use with XLR connectors
Fig. 2.1: XLR Balanced
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
For connection of balanced and unbalanced plugs,
ring and sleeve have to be bridged at the stereo plug.
Balanced 1/4" TRS connector
ring
cold (-ve)
tip
hot (+ve)
Fig. 2.2: ¼" Balanced
Strain relief clamp
Sleeve
Tip
Sleeve
(ground/shield)
Unbalanced ¼" TS connector
Tip
(signal)
Fig. 2.3: ¼" Unbalanced
Fig. 2.4: RCA
strain relief clamp
sleeve
ring
tip
sleeve
ground/shield
Connect the insert send with the input and the
insert return with the output of the effects device.
Insert send return 1/4" TRS connector
ring
return (in)
tip
send (out)
Fig. 2.5: Insert cable
shield
sleevesleeve
tip tip

Behringer XENYX 1002B Specifications

General

Frequency range	10 - 200000 Hz
Channels quantity	10 channels
Digital sound processing	- bit
Line Signal-to-Noise Ratio (SNR)	120 dB
DJ mixer	-
Headphone out	Yes
Product color	Black

Weight and Dimensions

Depth	216 mm
Width	298 mm
Height	73 mm
Weight	2770 g
