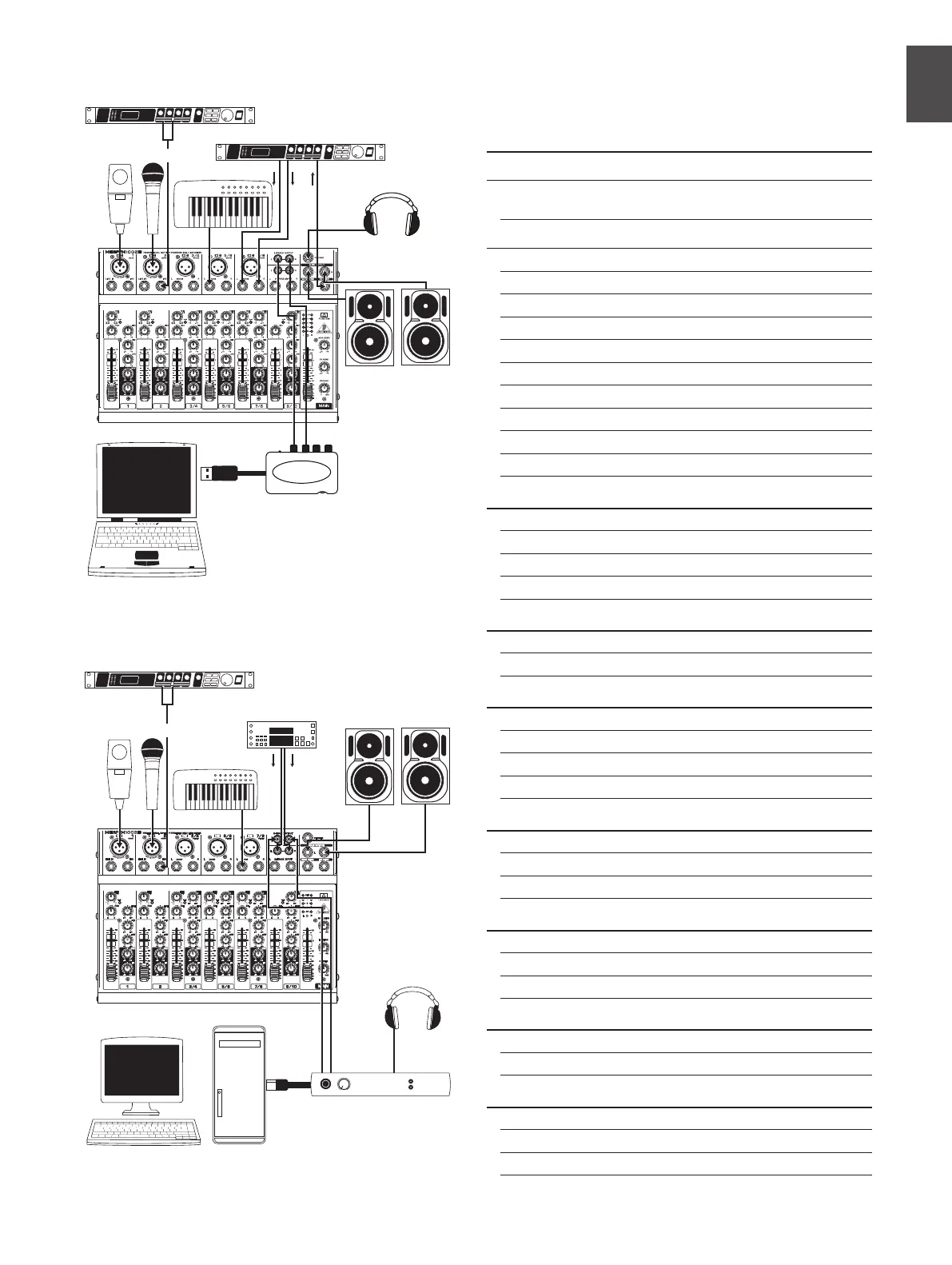

Fig.5.3: Computer Recording
Fig.5.4: Video Editing
Specifications6.
Mono inputs
Microphone inputs (XENYX Mic preamp)
Type XLR connector, electronically balanced,
discrete input circuit
Mic E.I.N.1 (20 Hz - 20 kHz)
@ 0 Ω source resistance -134 dB 135.7 dB A-weighted
@ 50 Ω source resistance -131 dB 133.3 dB A-weighted
@ 150 Ω source resistance -129 dB 130.5 dB A-weighted
Frequency response (–1 dB) <10 Hz - 160 kHz (-1 dB)
Frequency response (–3 dB) <10 Hz - 200 kHz (-3 dB)
Gain range +14 dB to +60 dB
Max. input level +12 dBu @ +10 dB GAIN
Impedance 2.6 k Ohms balanced
Signal-to-noise ratio 120 dB A-weighted (0 dBu In @ +22 dB GAIN)
Distortion (THD+N) 0.005% / 0.004% A-weighted
Line input
Type ¼" TRS jack, electronically balanced
Impedance 20 k Ohms balanced, 10 k Ohms unbalanced
Gain range -10 dB to +40 dB
Max. input level +22 dBu @ 0 dB GAIN
Frequency response (Mic In → Main Out)
<10 Hz - 90 kHz (-1 dB) +0 dB / -1 dB
<10 Hz - 160 kHz (-3 dB) +0 dB / -3 dB
Stereo inputs
Type 2 x ¼" TRS jack, balanced
Impedance 20 k Ohms balanced, 10 k Ohms unbalanced
Gain range -20 dB to +20 dB
Max. input level +22 dBu @ 0 dB GAIN
CD/Tape In
Type RCA connector
Impedance 10 k Ohms
Max. input level +22 dBu
Equalizer
LOW 50 Hz / +- 15 dB
MID 700 Hz / +- 15 dB
HIGH 10 kHz / +- 15 dB
Channel inserts
Type ¼" TRS jack, unbalanced
Max. input level +22 dBu
MON/FX send
Type ¼" mono jack, unbalanced
Impedance 120 Ohms
Max. output level +22 dBu
XENYX1002B
DSP2024P
DSP2024P
B-1
B2031A B2031A
UCA222
HPS5000
XM1800S
XENYX1002B
DSP2024P
B-1
B2031A B2031A
HPS5000
FCA202
DV Deck
XM1800S

Behringer XENYX 1002B Specifications

General

Frequency range	10 - 200000 Hz
Channels quantity	10 channels
Digital sound processing	- bit
Line Signal-to-Noise Ratio (SNR)	120 dB
DJ mixer	-
Headphone out	Yes
Product color	Black

Weight and Dimensions

Depth	216 mm
Width	298 mm
Height	73 mm
Weight	2770 g
