Behringer XENYX 1002B User Manual

ENGLISH
XENYX 1002B User Manual
8
Battery Installation4.3
The 1002B can be powered by three 9V batteries. This feature
allows you, for example, to capture a high-quality recording
while sitting on the beach with your laptop. You’re no longer
tethered by an electrical outlet. You can still record with con-
denser mics thanks to the 18V of phantom power supplied by
two of the batteries. Follow these steps to install the batteries:
Open the battery compartment located on the underside of the •
mixer. You will need to remove a small screw with a Phillips
screwdriver.
Slide the compartment cover out. There are slots for three bat-•
teries inside the compartment.
Insert the batteries so that the + and – poles are in the correct •
position.
Replace the cover and tighten the screw. •
The battery power will last approximately four hours using high-
quality alkaline batteries.

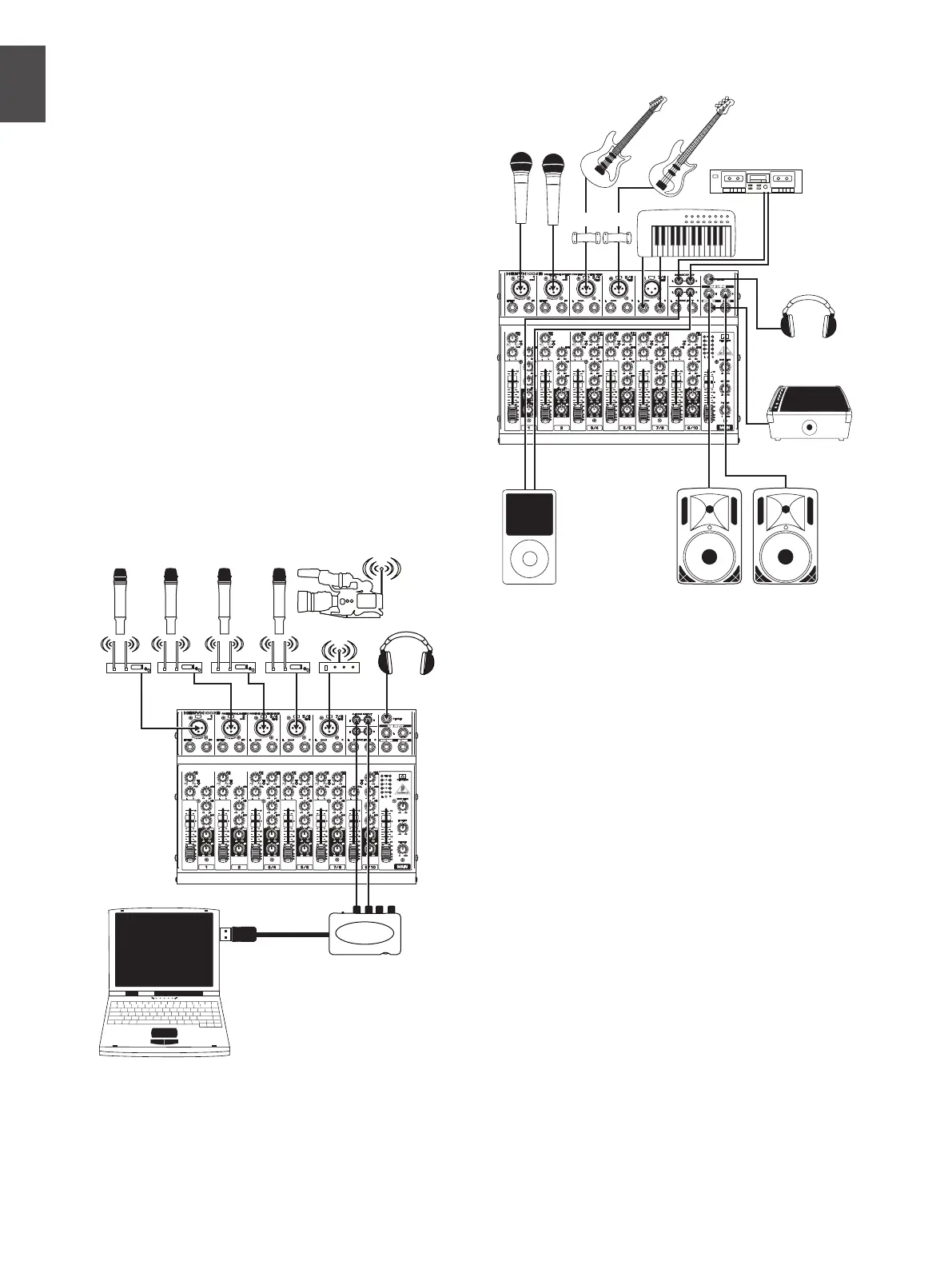

Applications 5.
Fig.5.1: Field Recording
Fig.5.2: Live Small Combo
UL2000M
UCA222
XENYX1002B
HPS5000
XENYX1002B
MP3 Player
B212A
F1220A
HPS5000
DI100 DI100
XM1800S
B212A

Behringer XENYX 1002B Specifications

General

Frequency range	10 - 200000 Hz
Channels quantity	10 channels
Digital sound processing	- bit
Line Signal-to-Noise Ratio (SNR)	120 dB
DJ mixer	-
Headphone out	Yes
Product color	Black

Weight and Dimensions

Depth	216 mm
Width	298 mm
Height	73 mm
Weight	2770 g
