Behringer XENYX 1002B User Manual

ENGLISH
XENYX 1002B User Manual
5

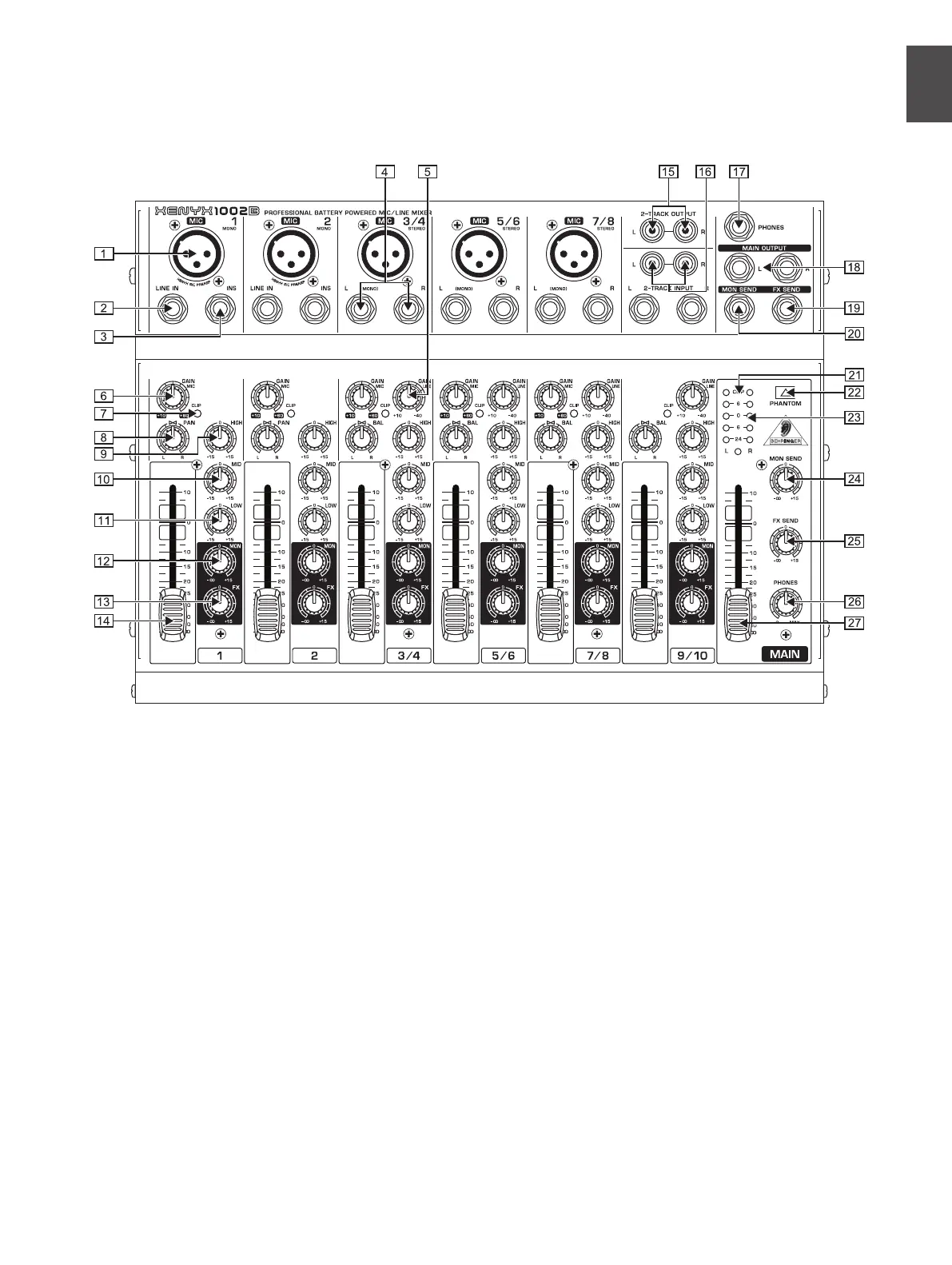

Controls and Connectors 3.
Front Panel3.1
MIC [1] – Plug a microphone into this input using an XLR cable.
LINE IN [2] – Plug a line-level source into this jack using a ¼"
TS or TRS cable.
INS(ERT) [3] – Plug an external dynamic processor into this
jack using a TRS to dual TS cable. You may also use the
INSERT jack as a pre-EQ/pre-fader send by plugging in a
¼" TS cable part way to the rst click.
STEREO LINE IN [4] – Plug in a stereo source using two ¼"
TS cables, or a single line-level source using the left input
jack only.
GAIN LINE [5] – Adjusts STEREO LINE IN sensitivity, also
known as “gain setting.”
GAIN MIC [6] – Adjusts MIC input sensitivity, also known as
“gain setting.”
CLIP [7] – Lights when preamp begins to overload.
PAN/BAL [8] – Adjusts the left-to-right positioning of the
channel in the stereo eld.
HIGH [9] – Adjusts frequencies above 10 kHz by +- 15 dB.
MID [10] – Adjusts frequencies peaking at 700 Hz by +- 15 dB.
LOW [11] – Adjusts frequencies below 50 Hz by +- 15 dB.
MON [12] – Adjusts the amount of signal sent to the MON
SEND jack. This signal is sent pre-fader.
FX [13] – Adjusts the amount of signal sent to the FX SEND
jack. This signal is sent post-fader.
CHANNEL FADER [14] – Adjusts the channel volume in the
main mix.
2-TRACK OUTPUT [15] – Connect to the inputs of recording
device using RCA cables.
2-TRACK INPUT [16] – Connect to outputs of CD, tape or MP3
player using RCA or ¼" cables.
PHONES [17] – Connect a pair of headphones with a ¼" TRS
plug.

Behringer XENYX 1002B Specifications

General

Frequency range	10 - 200000 Hz
Channels quantity	10 channels
Digital sound processing	- bit
Line Signal-to-Noise Ratio (SNR)	120 dB
DJ mixer	-
Headphone out	Yes
Product color	Black

Weight and Dimensions

Depth	216 mm
Width	298 mm
Height	73 mm
Weight	2770 g
