BEIER-Electronic MSM-1 - Pin Assignment

GB Sound module MSM-1
23 BEIER-Electronic 18.01.2024

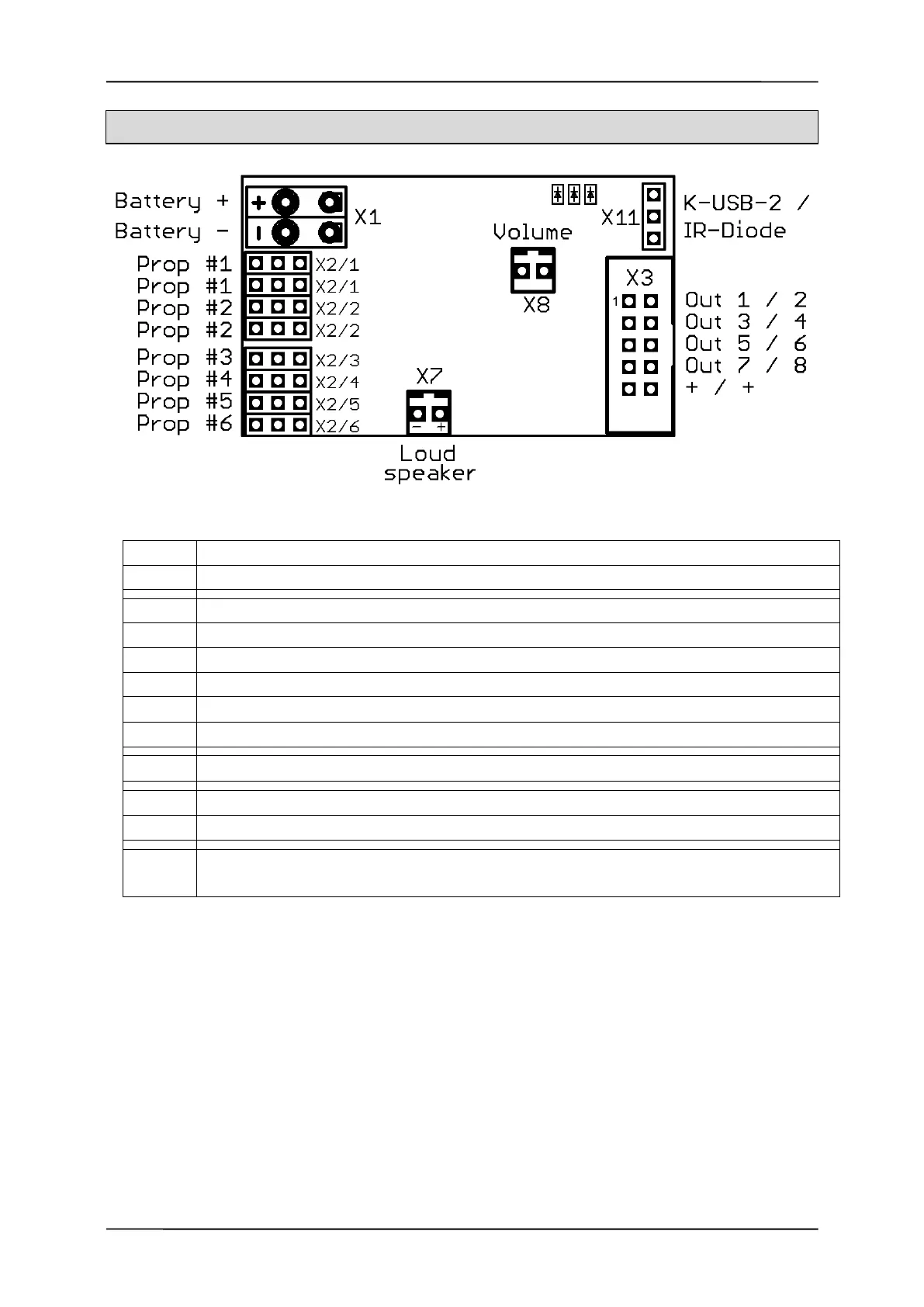

Pin assignment
X1/1
Battery + (5 – 14 V)
X1/2
Battery -
X2/1
Proportional input #1 (gas/throttle channel)
X2/2
Proportional input #2 (steering or 2nd throttle channel)
X2/3
Proportional input #3
X2/4
Proportional input #4
X2/5
Proportional input #5
X2/6
Proportional input #6
X3
Switching outputs 1 - 8
X7
Speaker
X8
Potentiometer for volume adjustment
X11
Data cable K-USB-2 (optional, currently not functional!) or IR transmitter
diode for light module LM-IR-8-1 or LM-IR-16-4
