Image and CODESYS update
2.

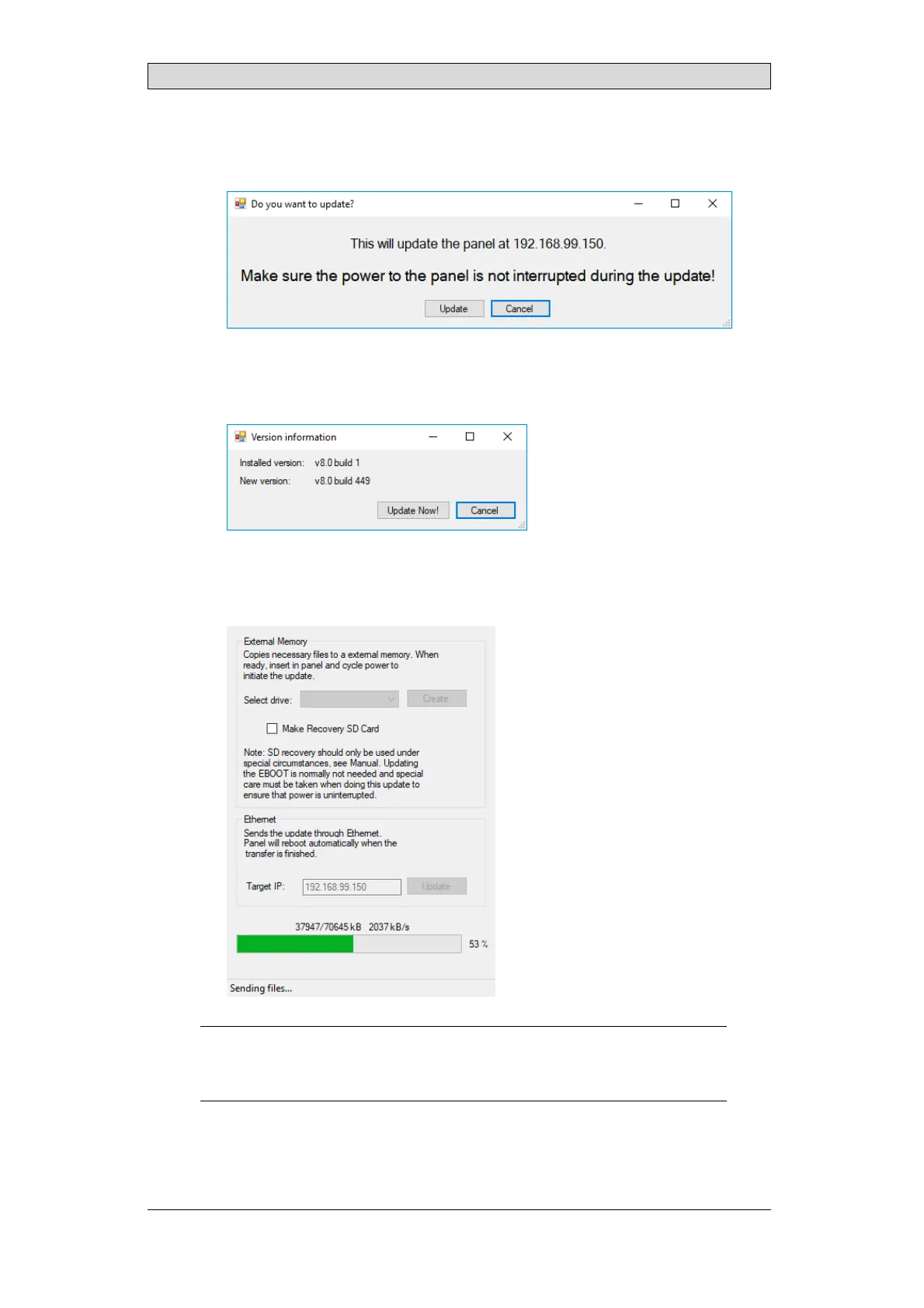

Make sure that the IP address of the panel matches the actual panel that you
want to upgrade.
3.
The dialog s hows the current installed image and the new image the panel will
be updated to after the upgrade. Click on Update now! to confirm the update.
4.
Theprogressbarshowstheupgradestatus. Whentheupgradeisdone,the
panelwillrestart.
Note:
IftheoperatorpanelcontainsaCODESYSRuntime,thentheCODESYSRuntimemustbe
downloadedonceagaintothepanelafterthepanelimagehasbeenchanged.
BeijerElectronics, MAEN205G
21
