Image and CODESYS update
Note:
Imageload erforiXTxAandX2baseonlysupportsupdatingpanelimageusingethernet.
5.1.2 Image+newiXDeveloperproject
It is possible to upgrade both the panel image and the iX Developer project on an
operator panel. This is done in two steps:
1.
Create a panel image USB flash drive or SD card using the Image Loader
utility.
2.
Export the iX Developer project from within iX Developer, to that same USB
flash drive or SD card.
5.2 Updatingthepanelimageover
ethernet
The Image Loader utility can be used to upgrade the panel image over ethernet.
Note:
Beforetryingtoupdatethepaneloverethernet,makesurethatyourPCisonthesame
IP-subnetastheoperatorpanel. IfyourpanelhasanIPaddressof192.168.1.1,and
anetmaskof255.255.255.0,thenyourPChastohaveanIPaddressintherangeof
192.168.1.2–192.168.1.254andanetmaskof255.255.255.0,inordertobeableto
communicatewiththepanel.
ToentertheupdatemodeonaiXTxAorX2base,pressafingeronthescreenandapply
powertothepanel.

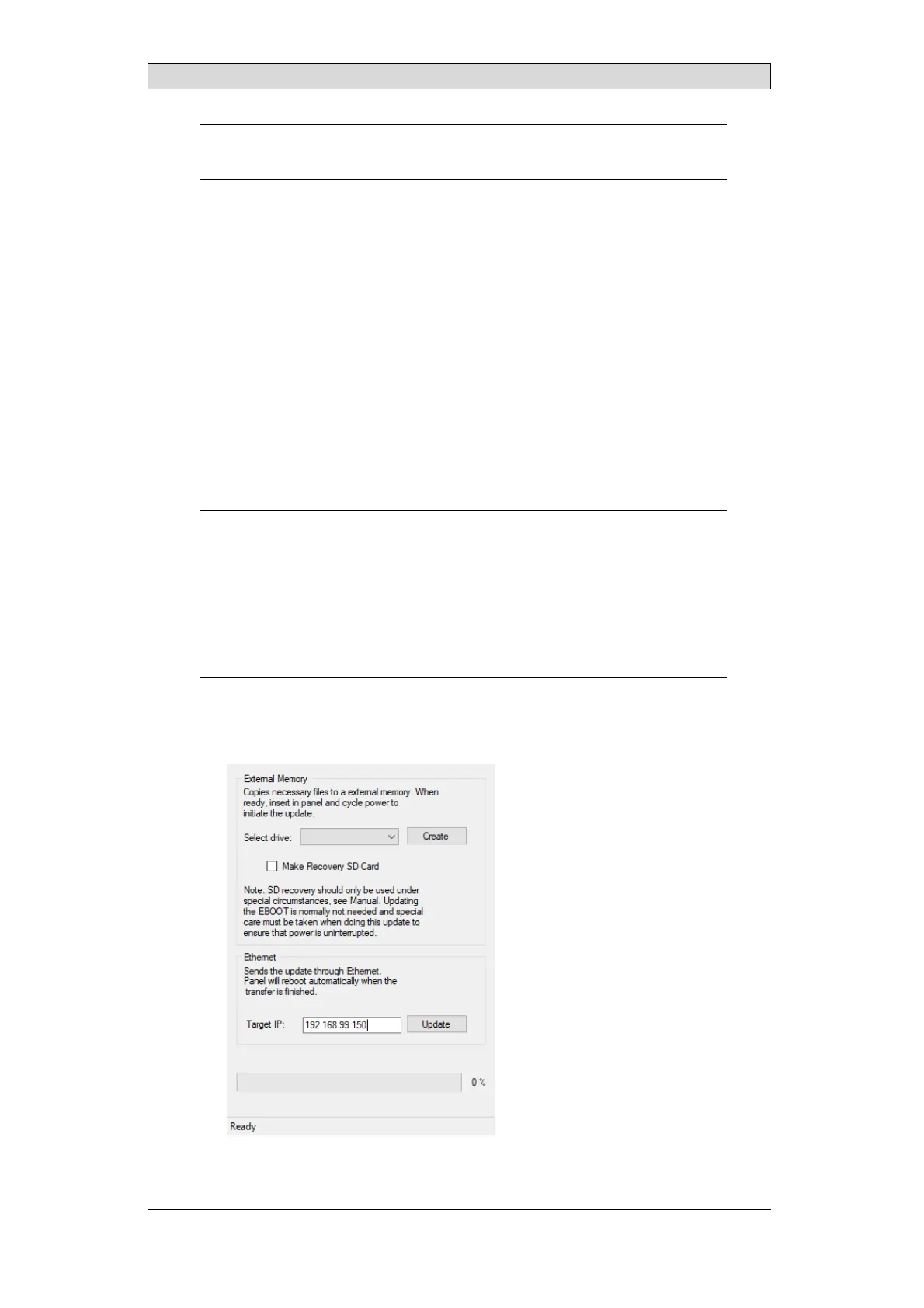

1.
Enter the panel target IP address in the dialog and click on Update to start the
update.
BeijerElectronics, MAEN205G
20
