Installation
Cloth
In order to install the cloth, some disassembly is necessary. Pay attention to how the machine is taken apart.
1) Loosen the upper locking collar on the drive rack with a 3/16” hex wrench and slide it over against
the flat washer.
2) Loosen lower locking collar of the drive rack using a 5/16” hex wrench.
3) Slide lower locking collar out away from rack and butt it against the plastic end cap.

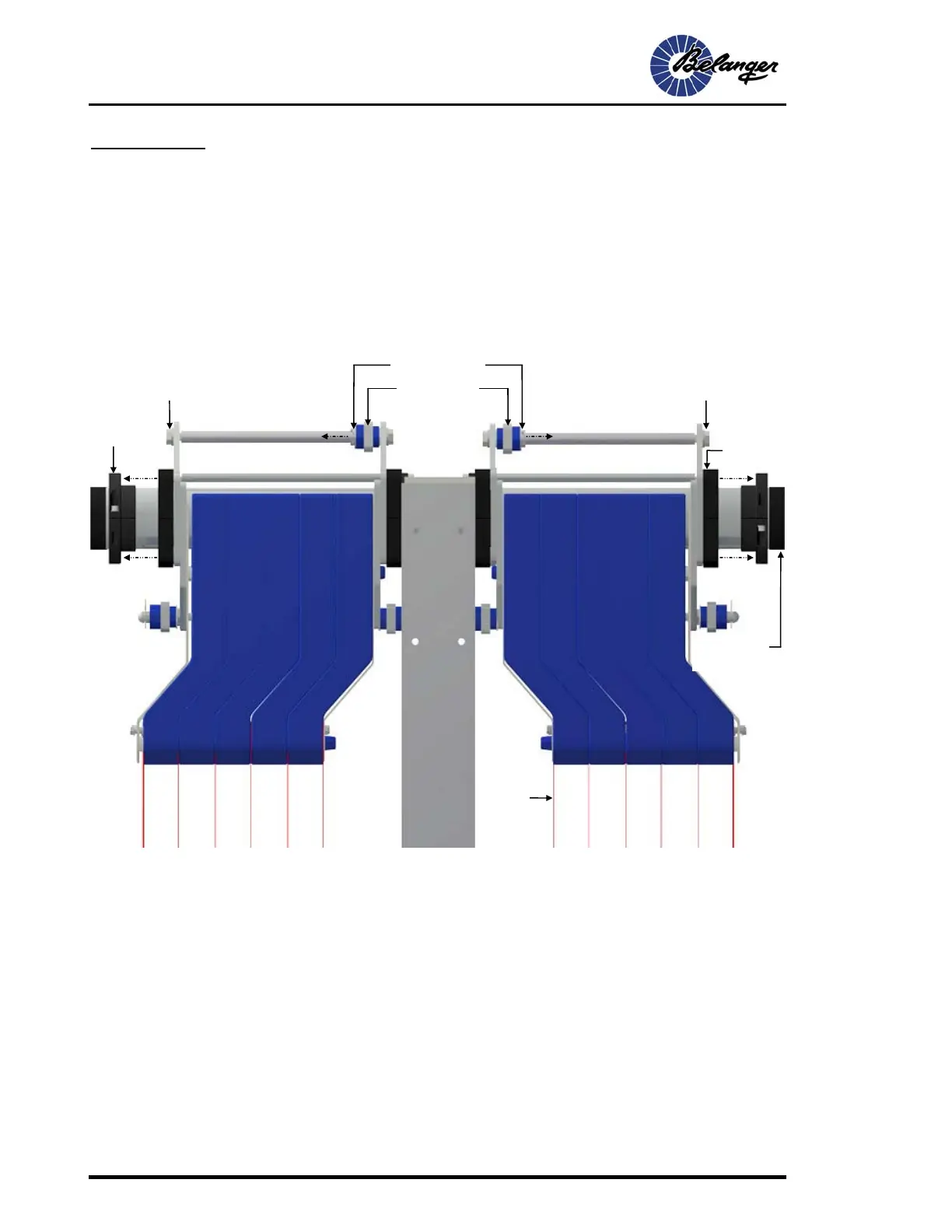

Side View
Lower locking
collar (typical)
1-1/8” bolt,
(remove for cloth installation, typical)
Cloth
(typical)
Plastic end cap
(typical)
Upper drive arm
Upper locking collar
1-1/8” bolt,
(remove for cloth installation, typical)
Shaft
bearing
(typical)
