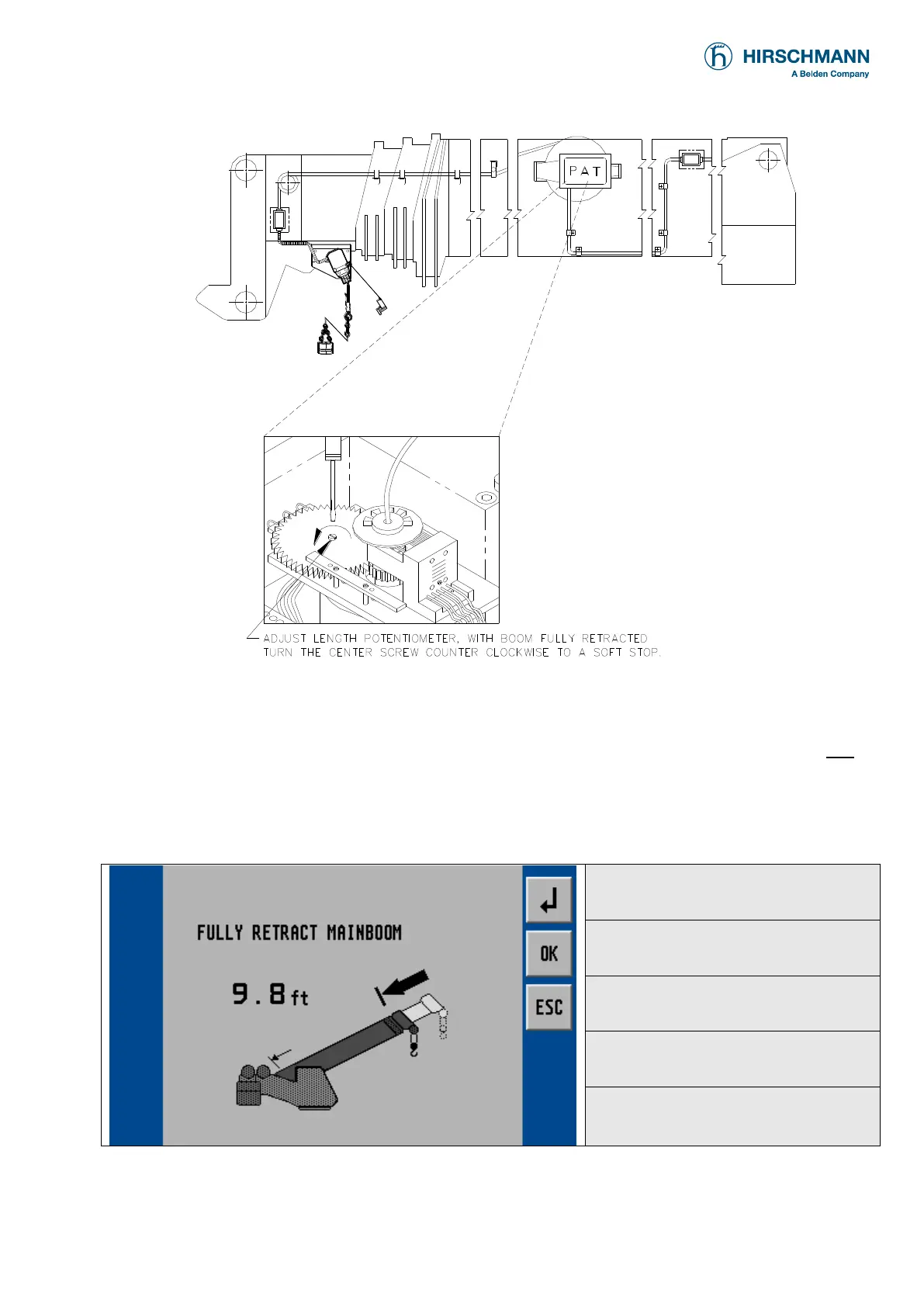

With boom fully retracted turn the center screw of the length pot unit counter clockwise to a soft
stop.
During adjustment an additional button "OK" appears. Check value and set actual length as fully
retracted length by pressing OK. Afterward next calibration screen appears.
▼ Calibration screen minimum length
cancel and return to LMI screen
