Service Manual iFLEX2 with iSCOUT expert compact
48 50 650 69 0101E_REV D (GROVE RT-TM).DOC / Rev. D / 2015-11-20 / JPD
Now extend main boom all the way out. Make sure you are within the allowed operating range
(especially maximum radius).
During telescoping out the boom an additional button "OK" appears.

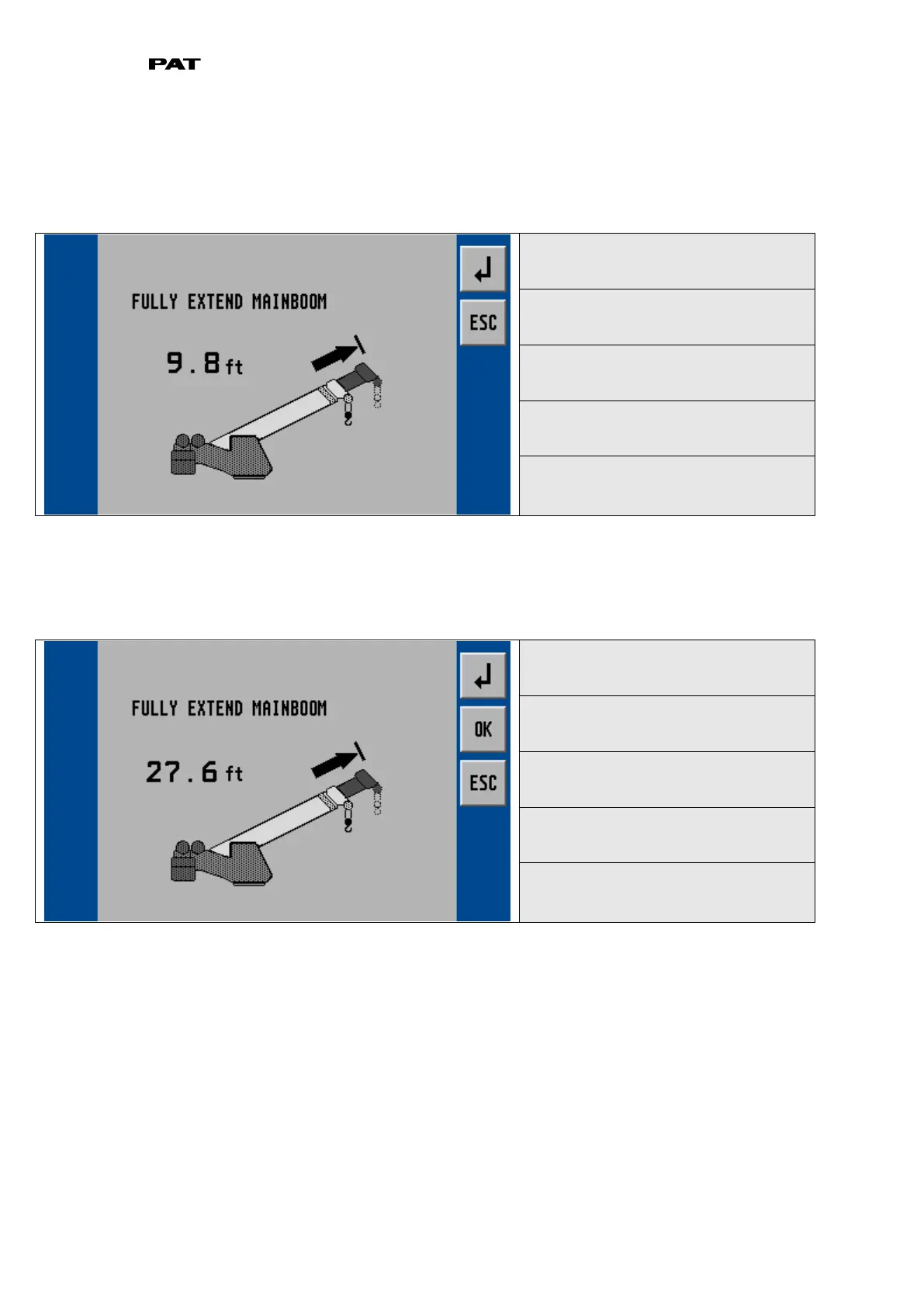

▼ Start calibration maximum length
cancel and return to LMI screen
Check whether boom is fully extended, then press "OK". Afterward next calibration step (angle)
appears.
▼ Calibration screen maximum length
cancel and return to LMI screen
To Next Page
