Belling 487 - Multifunction Selector Switch - Bottom Oven

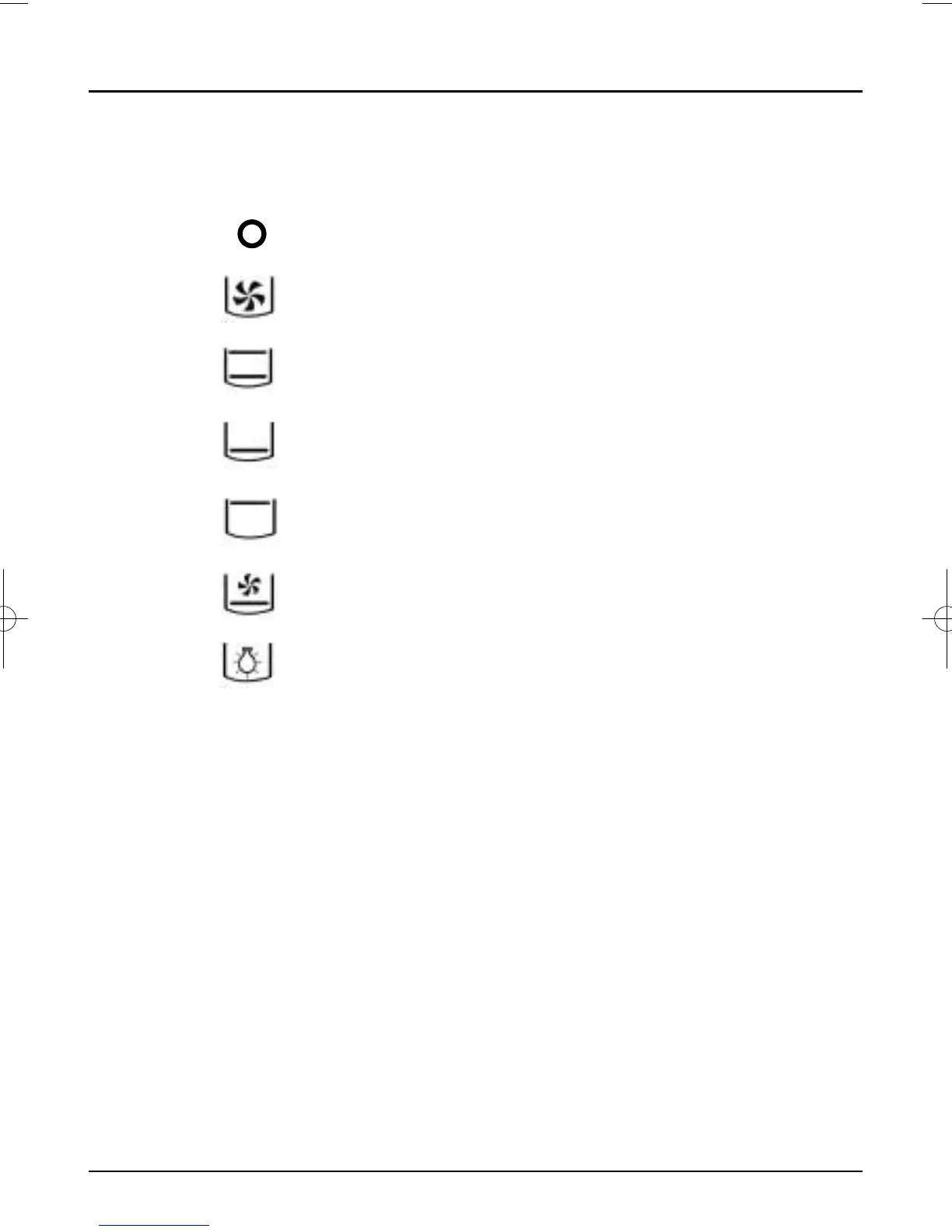

Off With the selector in this position the main oven will not heat up.
The timer will still operate.
Fan The oven fan and a rear element are controlled when this function is
Oven selected.
Use the oven thermostat control to set the required temperature.
Conventional The top and base elements are controlled when this function is
Oven selected.
Use the oven thermostat control to set the required temperature.
Base The base element only is controlled when this function is
Heat selected.
Use the oven thermostat control to set the required temperature.
Top The top element only is controlled when this function is
Heat selected.
Use the oven thermostat control to set the required temperature.
Fan Oven The oven fan, rear element and base elements will operate when this
with function is selected.
Base Heat Use the oven thermostat control to set the required temperature.
Light
Only This function switches on the oven light only.
With the exception of the O position the oven light will remain on
when this selector switch is used.
