INST
ALLA
TION INSTRUCTIONS - 90CM

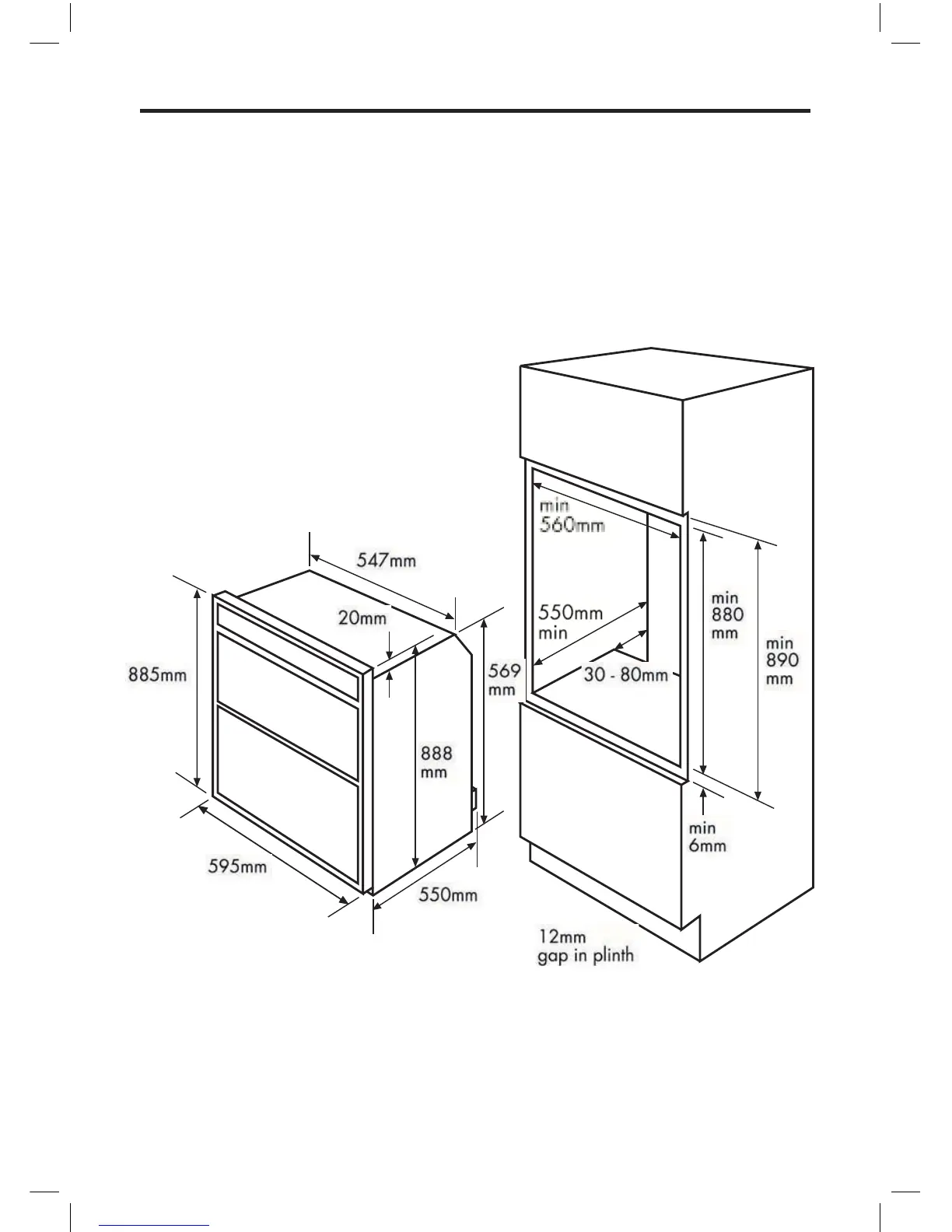

Dimensions
The appliance is designed to fit into a
standard 600mm wide housing unit, with
minimum internal dimensions as shown.
Note:
All sizes are nominal, some
variation is to be expected.
38
40
