INSTALLATION INSTRUCTIONS
Connect to the electricity supply
This appliance must be connected by a
competent person, using fixed wiring via
a double pole switched fused spur outlet,
with a contact separation of 3mm at all
poles.
Use a 13 amp fuse.
We
recommend that the appliance is
connected by a qualified electrician,
who will comply with the I.E.E. and local
regulations.
Warning: This
appliance must be earthed.
The wires in the mains lead are coloured
in accordance with the following code:
Green & Yellow = earth, Blue = neutral,
Brown = live.

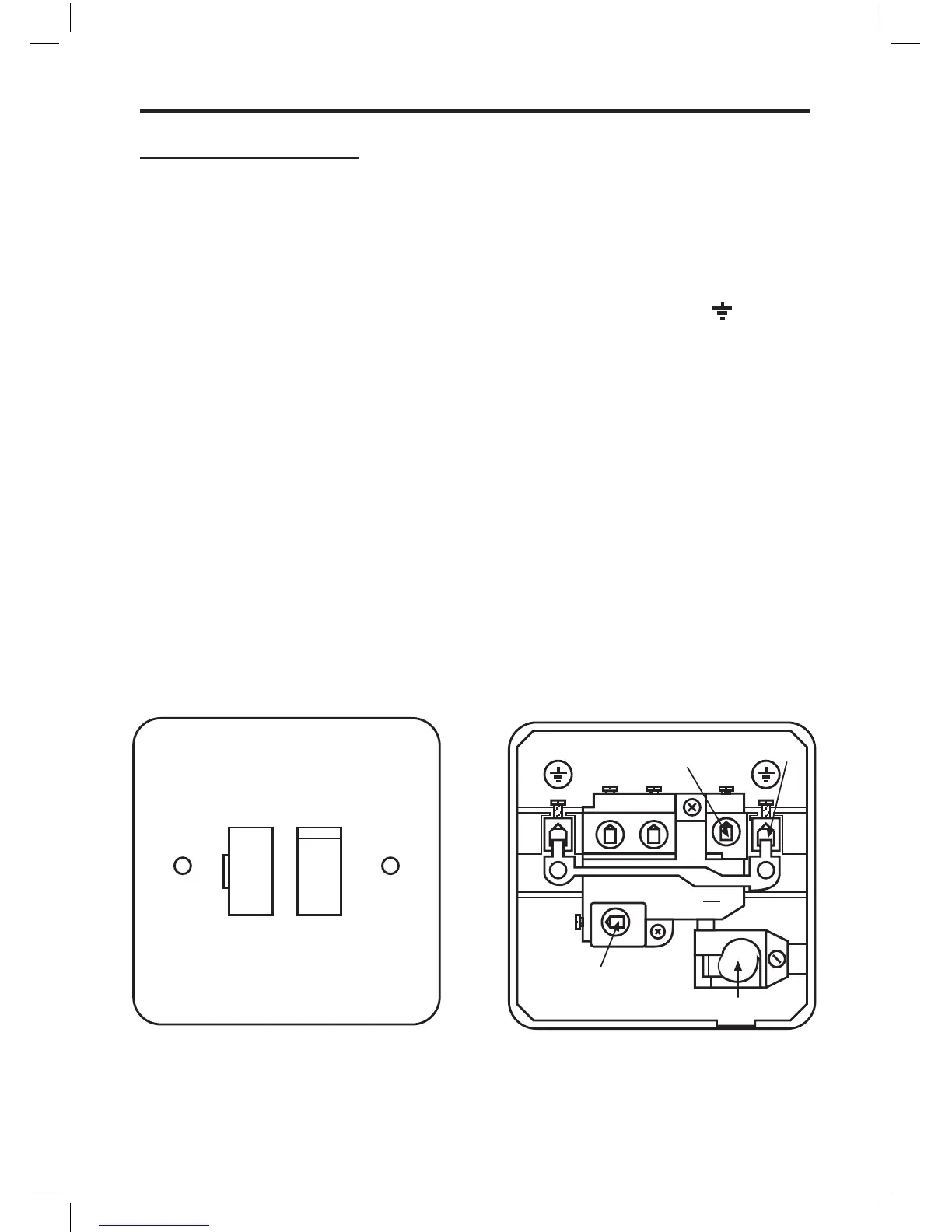

Typical example of a double pole fuse spur
outlet
As the colours of the wires in the mains
lead for the appliance may not correspond
with the coloured markings identifying the
terminals in your spur box, proceed as
follows:
1. The
wire which is coloured green and
yellow must be connected to the
terminal marked E (Earth)
or coloured green.
2. The wire which is coloured blue must
be connected to the terminal marked
N (Neutral)
LOAD or coloured Black.
3. The wire which is coloured brown must
be connected to the terminal marked L
(Live) LOAD or coloured Red.
If the supply cord is damaged, obtain a
special cord from the Customer Support
Helpline, which must be fitted by a
qualified person.
