13

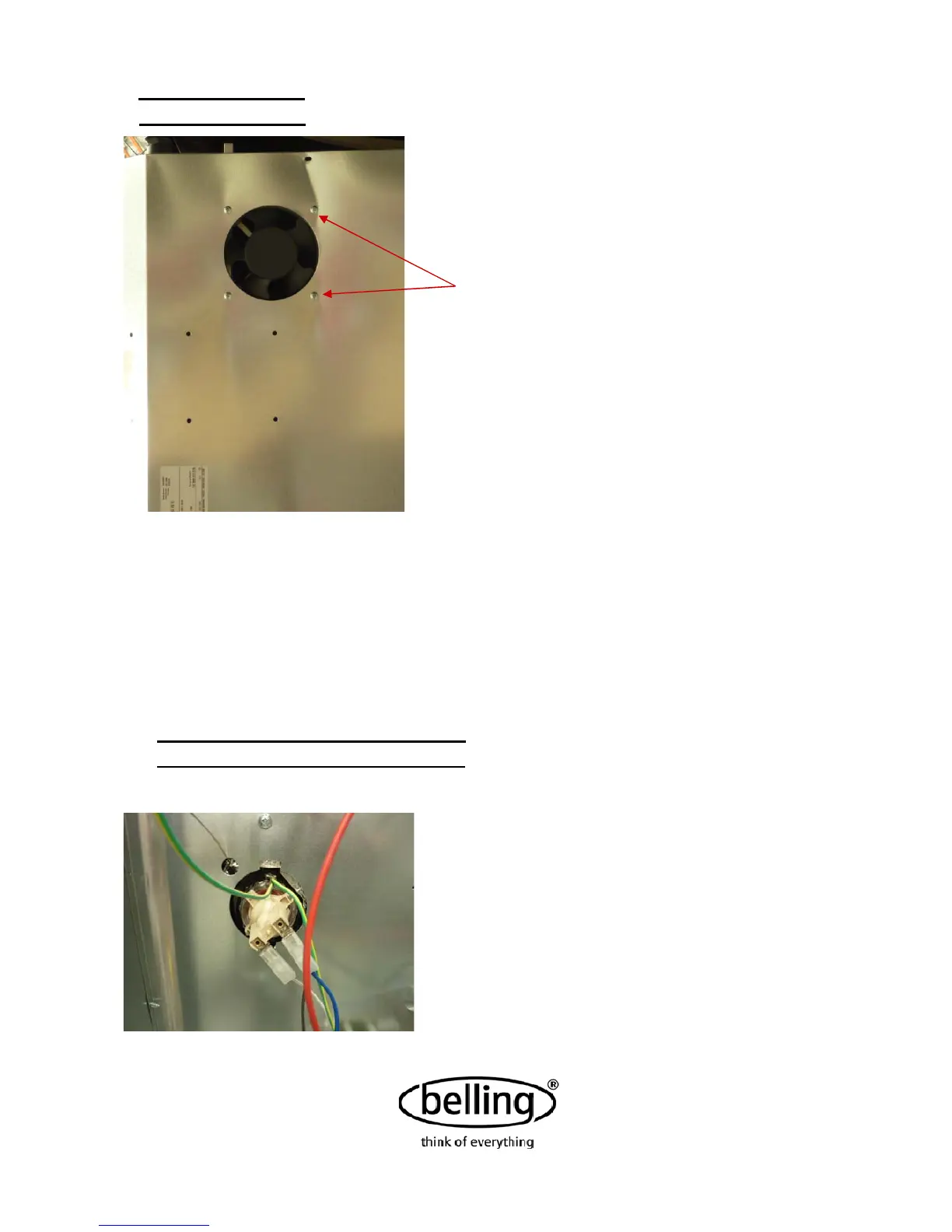

J) COOLING FAN

FOLOW STEP 5 AND REMOVE THE

REAR SERVICE PANEL

REMOVE THE 4 X SCREWS AND RE-

MOVE THE COOLING FAN

K) MAIN OVEN LIGHT FITTING

FOLLOW STEP 5 ) REMOVING REAR

SERVICE PANEL

REMOVE GLASS LAMP COVER BY

UNSCREWING

REMOVE THE EARTH LEAD

RELEASE 4 XCLIPS HOLDING LIGHT

FITTING IN PLACE

REMOVE BY PULLING LIGHT FITTING

FORWARD INTO CAVITY
