E) MAIN/TOP OVEN BURNERS

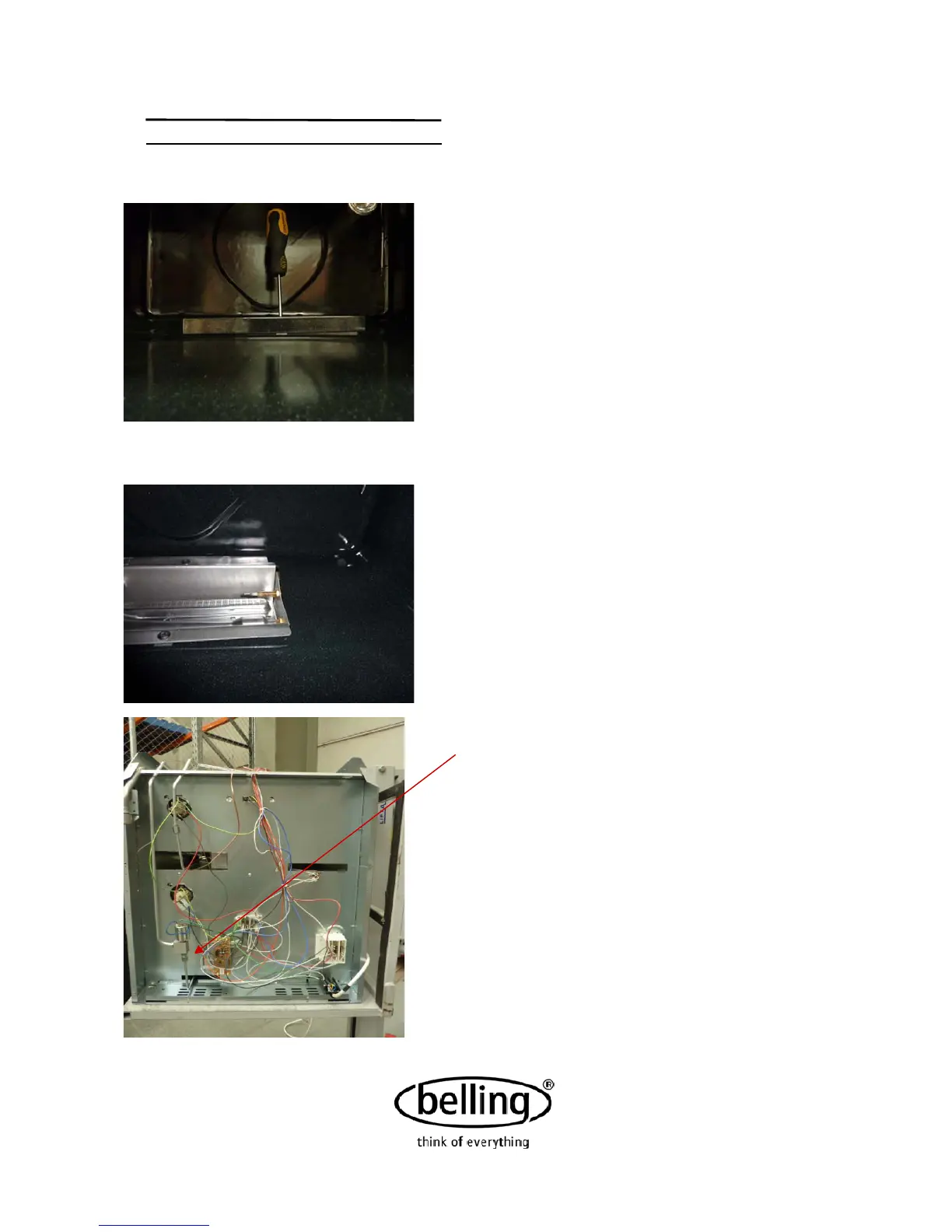

REMOVE THE BURNER SHIELD BY

LOOSENING THE SCREW AS SHOWN

SLIDE AWAY THE BURNER SHIELD

REMOVE THE THERMOCOUPLE

FROM THE BURNER ASSY BY RE-

MOVEING THE SECURING NUT AND

PULLING OUT FRON THE BURNER

DISCONNECT THE BUNDY TUBE

FROM THE SOLENOID VALVE TO THE

OVEN BURNER
