INSTALLATION INSTRUCTIONS
Connect to gas supply
1. The inlet to the appliance is ISO 7
-
Rp ½” internal thread situated
towards the top right hand rear corner.

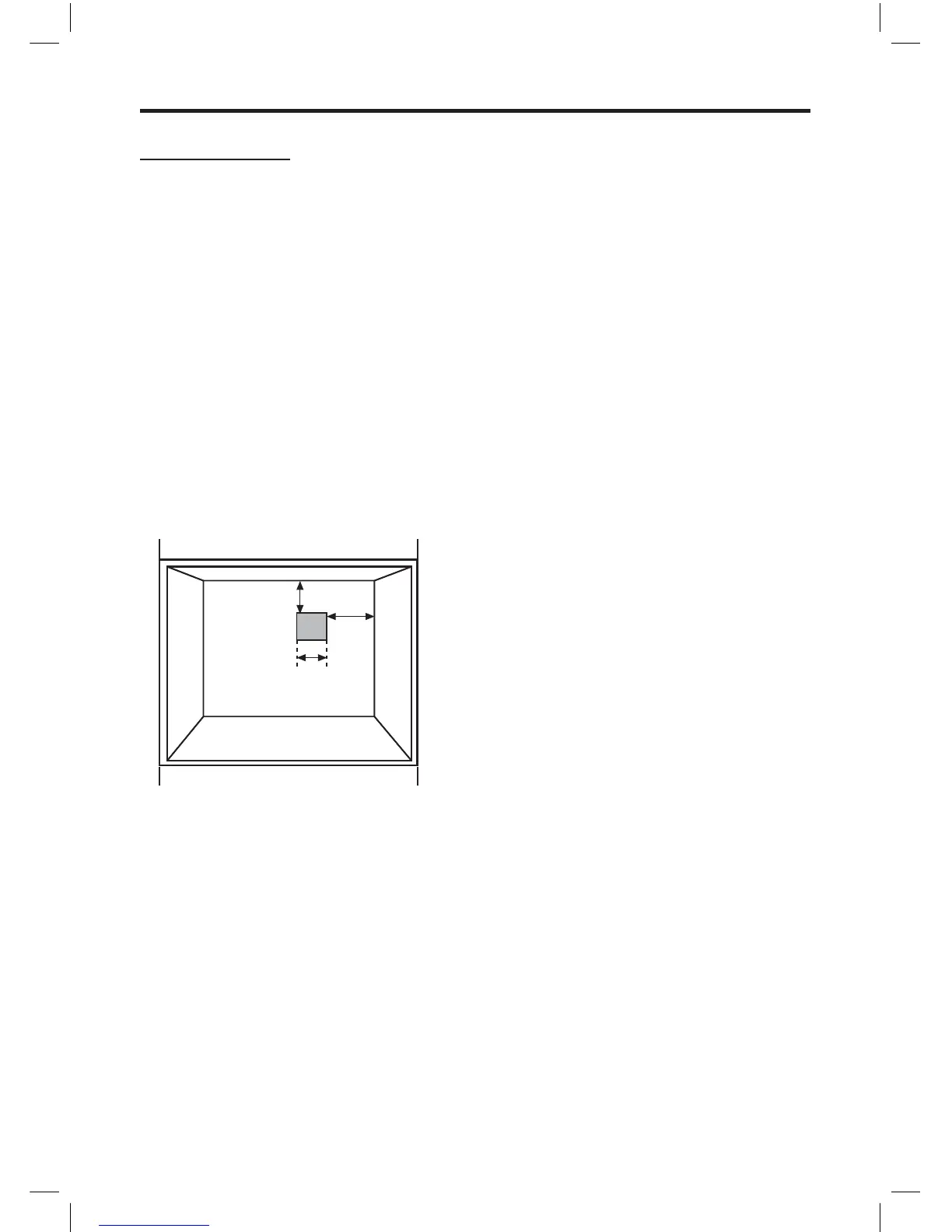

2. Fit the bayonet connection to the wall
in the shaded area as shown.
The shaded area shown is applicable to
installations in minimum depth cabinets.
If more room is available, the bayonet
fixing area can be extended, provided that
the flexible tube does not obscure the fan
intake.
3. Use
a 900mm - 1125mm length of
flexible connector. The flexible
connector shall be fitted such that it
cannot come into contact with a
moveable part of the housing unit (eg;
drawer) and does not pass through
any space susceptible of becoming
congested. Make sure that the flexible
connector does not block the cooling
fan inlet.
4. Flexible connections should comply
with BS 669. Parts of the appliance
likely to come into contact with a
flexible connector have a temperature
rise of less than 70°C.
5. Rigid connections must be accessible
to disconnect for servicing. Cut a
150mm square hole in the right hand
rear corner of the support shelf for the
supply pipe.
6. Make sure all connections are gas
sound.
):
):
):
@
