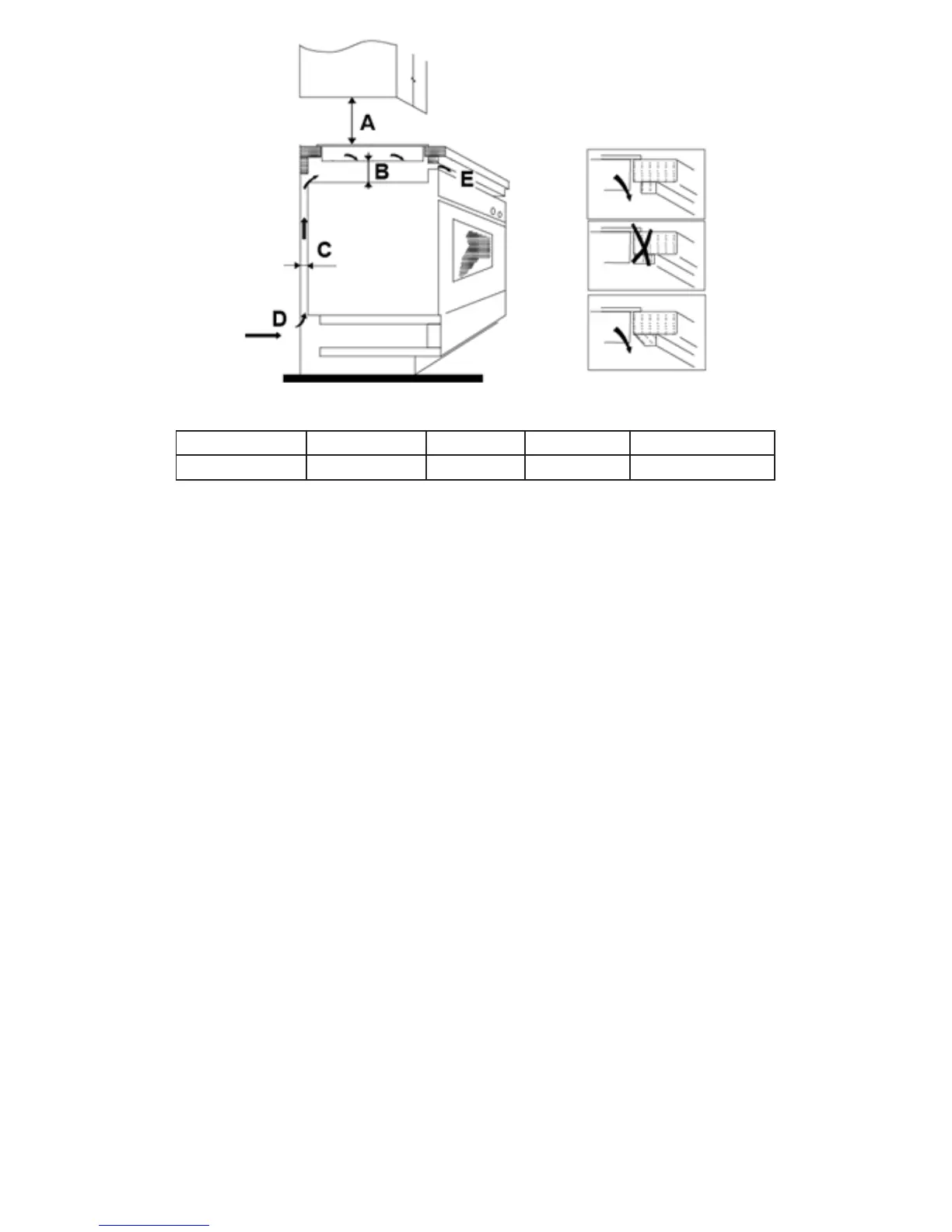

A(mm) B(mm) C(mm) D E
760 50 mini 20 mini Air intake Air exit 10mm
Before installation
• The work surface is square and level, and no structural members interfere with space requirements.
• The work surface is made of a heat-resistant material.
• If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regula-
tions.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated
in the permanent wiring, mounted and positioned to comply with the local wiring rules and regula-
tions.
• The isolating switch must be of an approved type and provide a 3 mm air gap contact separation
in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the
requirements).
• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation.
• You use heat-resistant and easy-to-clean nishes (such as ceramic tiles) for the wall surfaces sur-
rounding the hob.
After installation
• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate ow of fresh air from outside the cabinetry to the base of the hob.
• If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed
below the base of the hob.
• The isolating switch is easily accessible by the customer.
