11

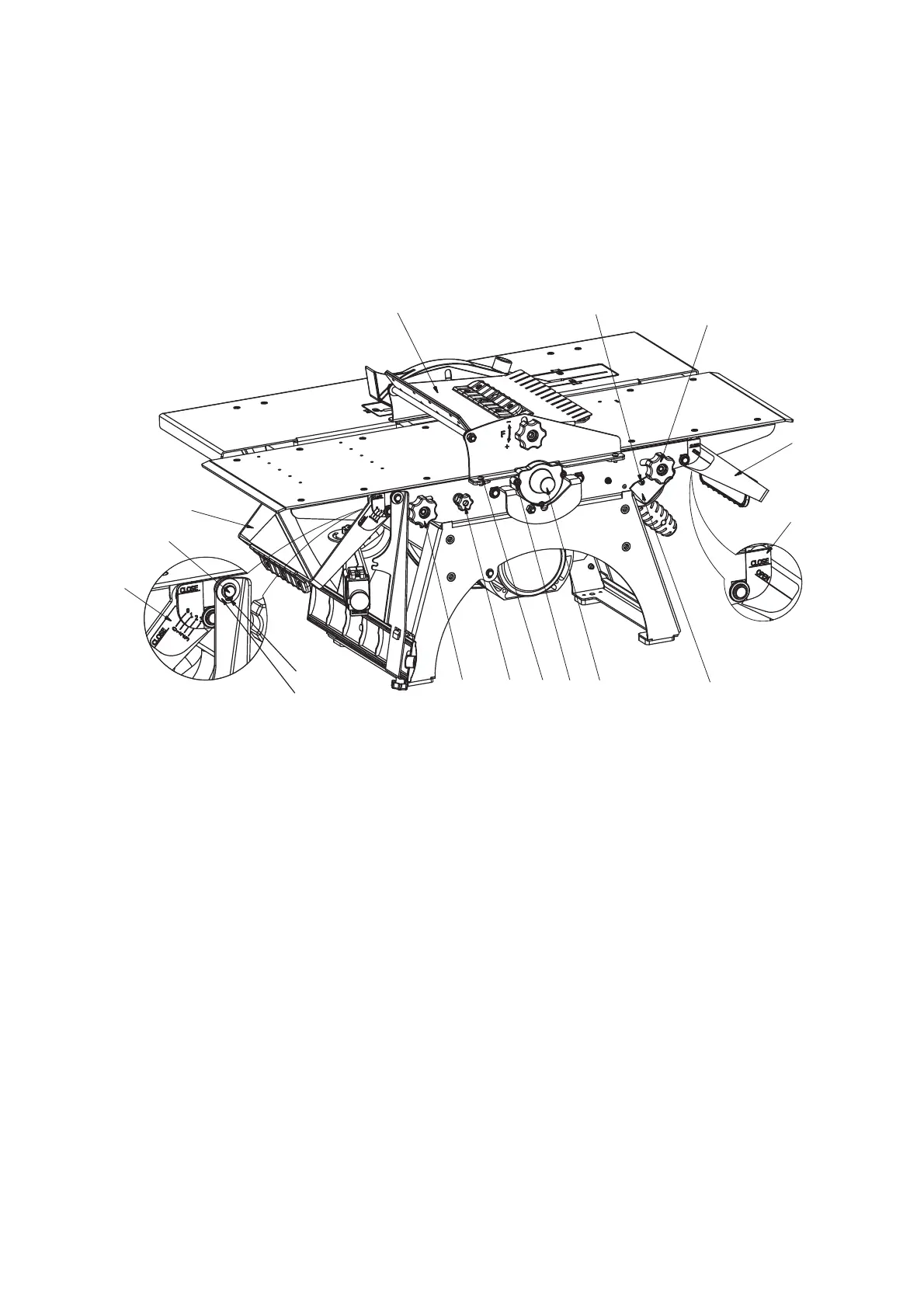

Fig. Е
Planing with holding down device
4 – Lever-stick for lifting and lowering the loading table and transferring the machine
5 – Lever-stick for lifting and lowering the outfeed table and transfer machine
6 – Flywheels for fixing loading and outfeed tables
14 – Planing depth scale
15 – Loading table scale
19 – Handwheel for fixing bracket 8
22 – Holding down device
23 – Fixing screws for holding down device
24 – Pipe for cutting wastes
61 – Washer locks for swing bracket of knife’s block fencing
62 – Lock ring for swing bracket of knife’s block fencing
63 – Axis for bracket 8
64 – Fixing screws for end mill fencing 51/knife’s end block fencing 65
65 – Knife’s end block fencing
66 – Fixing screws for cutting wastes pipe 24
6
62
22
66
6
63
14
4
61
19
23
64
65
15
5
24
