18
Install fencing of saw blade together with the splitting knife (p. 10.1.2);
Install the device for angular cross cutting (p. 10.1.3);
Install the knife’s block fencing together with the bracket (p. 10.1.4);
Install the milling table (p. 10.1.5), in case you are going to perform planning with end mill
cutter or drilling;
Assemble the holding down device (p. 10.1.6).
10.1.1 Adjusting the saw blade
The saw blade insert 31 must be adjusted so that the mark “▼” 31b (Fig. G) shall coincide
with the center of the saw blade 25, and the slot 31 shall be parallel to the plane of the saw
blade 25. It requires releasing the screws 31c, adjusting the insert 31 and setting it back.

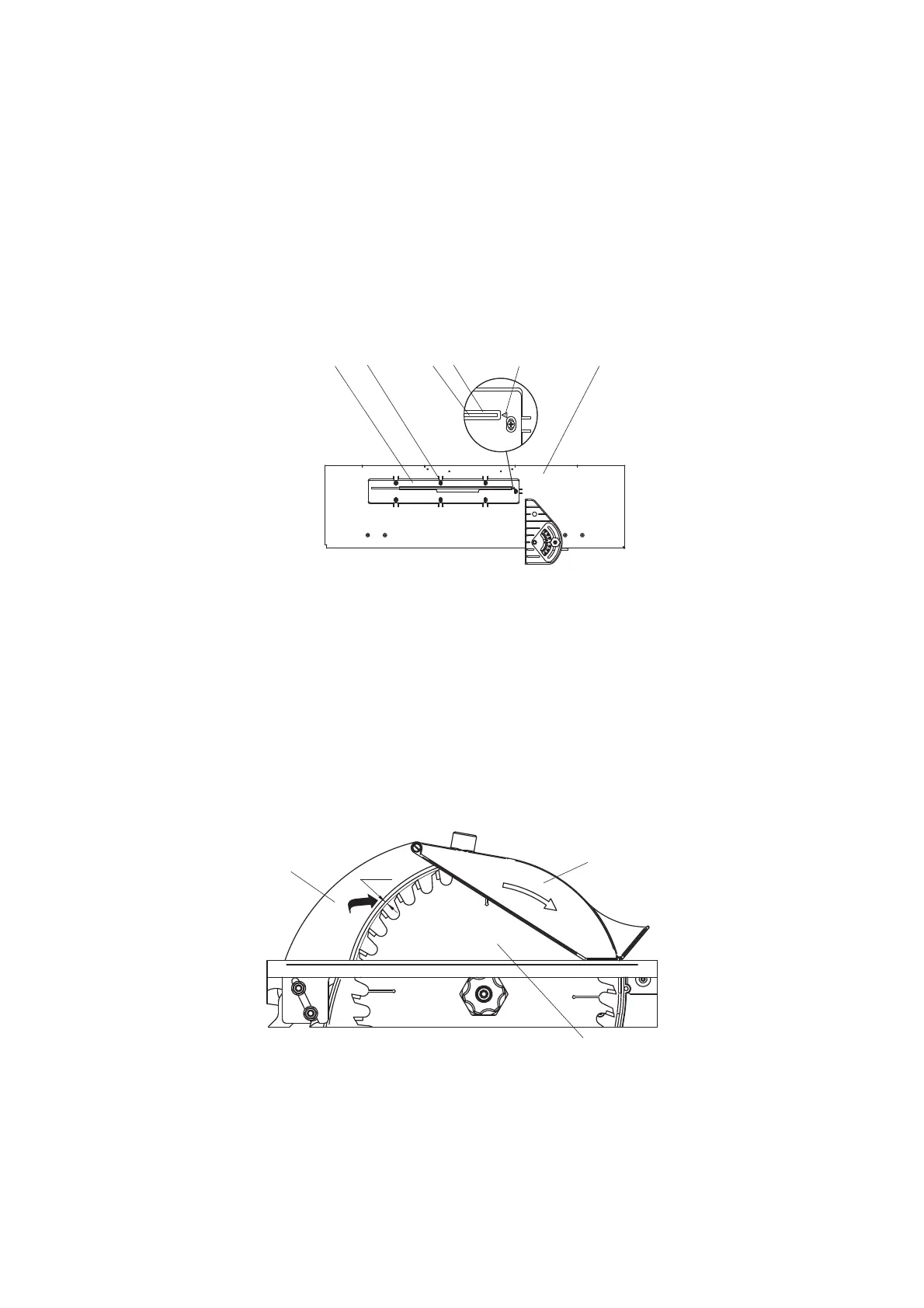

Fig. G
Adjusting the saw blade insert
25 – saw blade, 26 – cutting table; 31 – cutting table insert; 31а – slot; 31b – mark; 31c – screws
10.1.2 Installing the fencing of saw blade with the splitting knife
In order to install the fencing of saw blade with the splitting knife it is necessary to pull its
end with the sweep slot to the slotted hole of the insert and push on two threaded rods until
the sweep slot is positioned between the washers 60 and screw nuts 59 (Fig. B), pre-installed
on the threaded rods.
Next, you need to adjust the position of the splitting knife.
Fig. H
Radial distance
25 – saw blade, 28 – splitting knife; 29 – fencing of saw blade
31c31
25
31b
31a
26
29
28
25
5 mm min
