This requires inserting the saw blade to the maximum cutting depth. The splitting knife shall
be placed symmetrically in the center in the plane of the saw blade, providing radial distance
between the splitting knife 28 and the crown of the saw blade equal to 5 mm (Fig. H). It is
achieved by moving the washers with screw nuts 59, 60 (Fig. B1) and the splitting knife 28
with a sweep slot along the threaded rods 59.
Fencing of saw blade shall be mounted on the machine during all types of processing.
10.1.3 Installing the device for angular cross cutting
Installation of the device for angular cross cutting 34 (Fig. В) is carried out by putting it into
the cam with a flange of the cutting table 26, which serves as a guideway for supplying the
workpiece along the cut line. To remove the device from the machine, perform the
mentioned above actions in the inverse order.
10.1.4 Installing the knife’s block fencing together with the bracket

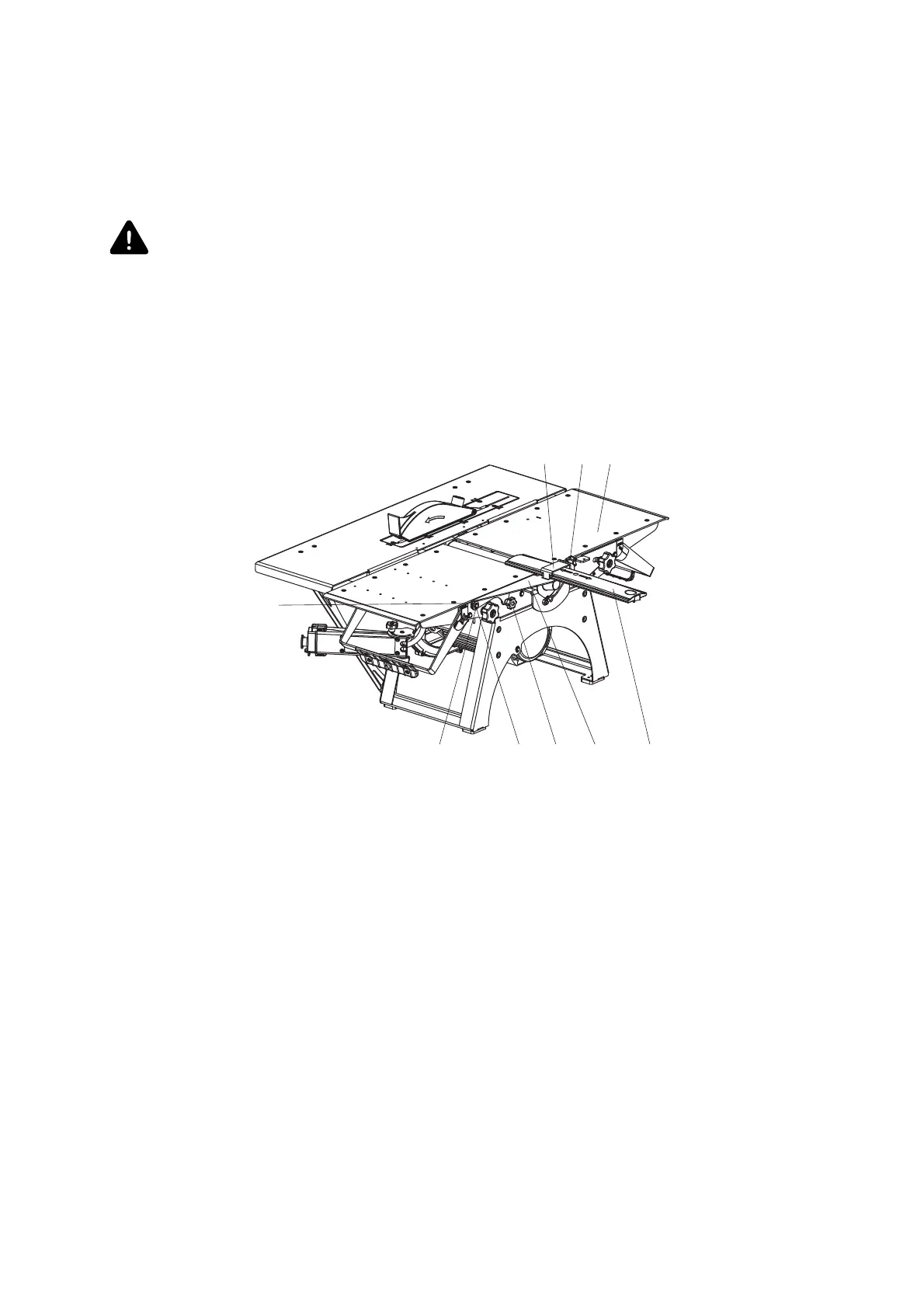

Fig. I
Installing the knife’s block fencing together with the bracket
3 – outfeed table; 7 – fencing; 8 – bracket; 9 – clip; 10 – flywheel for clip fixation; 19 – flywheel for bracket fixation,
63 – axis; 61 – washer, 62 – lock ring
To install the knife’s block fencing, insert the fencing 7 (Fig. I) between the bracket 8 and the
clip 9 and then fix it with the help of the flywheel 10.
The bracket with the fencing should be installed on the axis 63 and fixed with the help of the
washer 61 and the lock ring 62.
The fencing should be installed on the plane of the outfeed table 3 and fixed with the
flywheel 19.
10.1.5 Installing the milling table
The install the milling table 46, fix it to the machine stand with cap screws 19 (Fig. D).
10.1.6 Assembling the holding down device
The holding down device 22 (Fig. E) is designed for safe processing of the workpieces with
781963 61
