[3d] INSTALLATION OF RKII TYPE
1. Fix the base on the oor with lag bolts (supplied)
or with appropriate means.
:MAKE SURE THE BASE IS
FIXED ON THE FLOOR FIRMLY.
2. Insert the sliding post with column cover into the
column.
3. Install the column on the base with mounting
bolts. Make it vertical with adjusting bolts.
4. Put the thrust washer to top of the sliding post and
install the swing arm assembly to sliding post.
5. Set the stopper screw into lower threaded hole of
swing arm 2.
6. Set the brake plug then brake spring and brake
screw into the upper hole of swing arm 2.
Tighten the brake screw IF ARM DRIFTS.
DO NOT FULLY TIGHTEN
.
7. Run the cable from swing arm 1 through a cable
guide.
8. Slide up the backrest cushion to the top of column.
9. Insert the gas pump into the gas pump bracket.
Mount the seat on the gas pump.
10. Refer to page 16 for Head assembly installation.
11. Refer to page 17 for Control box installation.

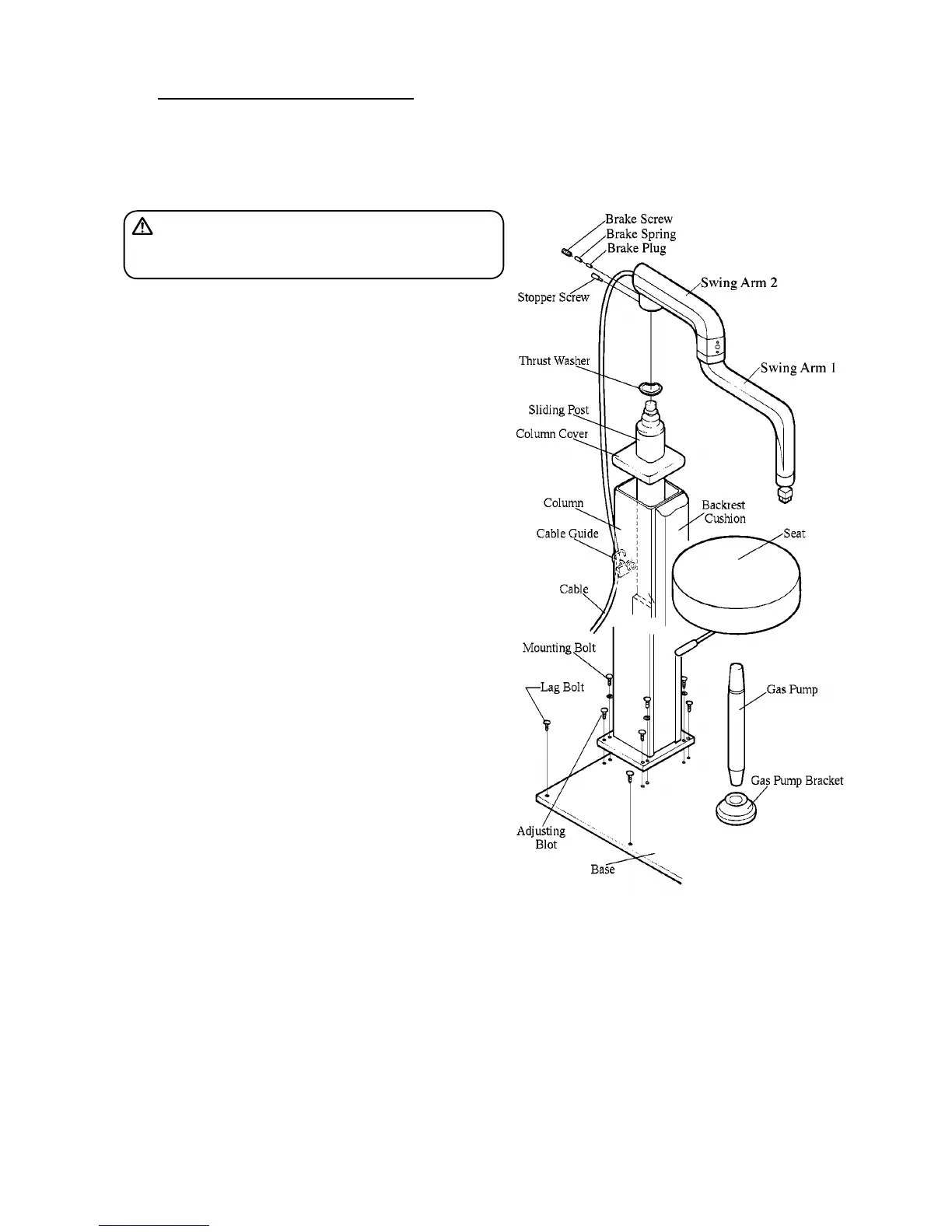

FIGURE 16
12. Perform the post installation inspection.(page 19~20)
(SEE FIGURE 16)
