Graph 2 - Low Frequency FFT - AC Line-Related Hum
The DAC3 shows no evidence of AC line-related hum to a measurement limit of about -160 dBFS.
The cursors are placed at 60 Hz and 180 Hz (frequencies where we would expect to see
interference from the 60 Hz AC input. In the idle channel noise spectrum there is absolutely no sign
of any AC hum! At full output, these line-related frequencies still measure better than -133 dB (see
Graph 4
).
This graph demonstrates one of the advantages of switching power supplies. The switching power
supplies in the DAC3 operate at frequencies above the audio band and this eliminates the strong
line-frequency magnetic fields that would have been created by line-frequency power transformers.
Audio Precision
DAC3 - FFT Idle Channel Noise - Low Frequency, 0 dBr = 0 dBFS = 27.5 dBu

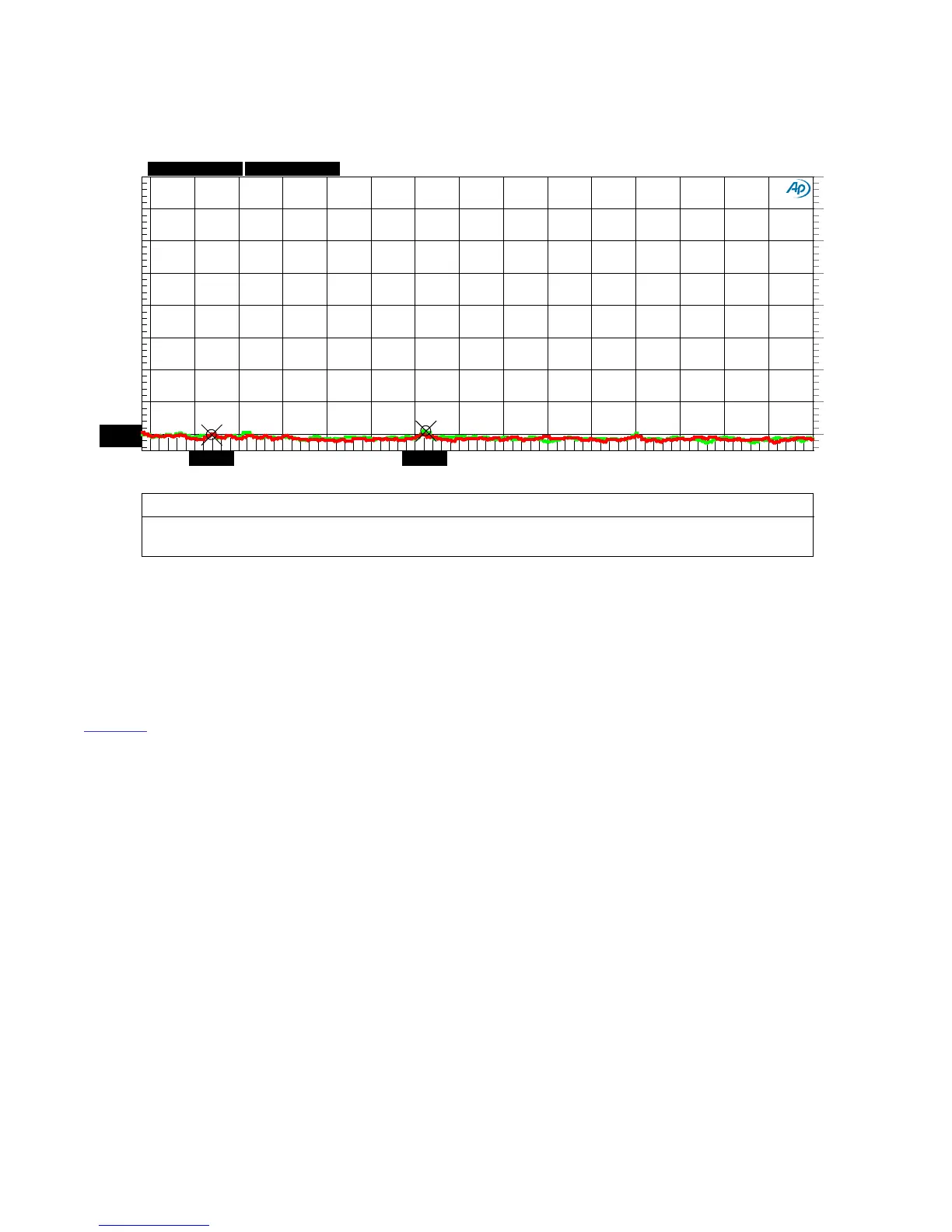

DAC3 - FFT Idle Channel Noise - Low Frequency.at27
