12 iso415R-x_D00401_00_M_XXEN / 04.2021
Mounting and connection
3 Mounting and connection
i
Only qualified personnel are permitted to carry out the work necessary to install, com-
mission and run a device or system.
I
risk of fatal injury due to electric shock! Touching live parts of the system carries the
risk of:
– a fatal eleCtriC shoCk
– Damage to the eleCtriCal installation
– DestruCtion of the DeviCe
Before installing anD ConneCting the DeviCe, make sure that the installation has Been
De-energiseD. the rules for Working on eleCtriCal systems must Be oBserveD.
3.1 Mounting

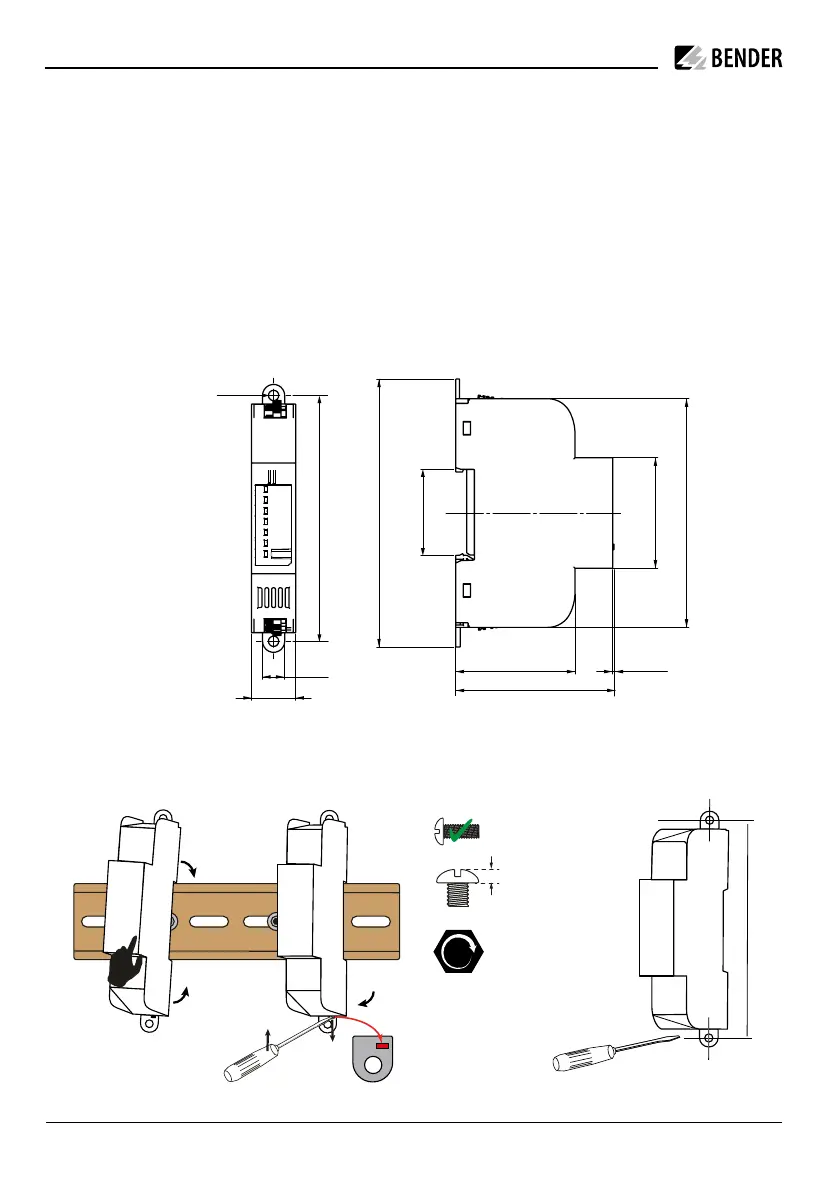

Abb. 3–1 Dimensions in mm
18
8,8
100
109
93
64
48.5
45
1
65
35
2 x Ø 4,2
18
8,8
100
109
93
64
48.5
45
1
65
35
2 x Ø 4,2
Screw mountingDIN rail mounting
1.
2.
2.
1.
Click!
Removal
100
Nm
1.0
max. 2.5 mm
M4 ISO7380-1, DIN84
!
