TGH1442en/06.2012
4. Installatio
n and connection

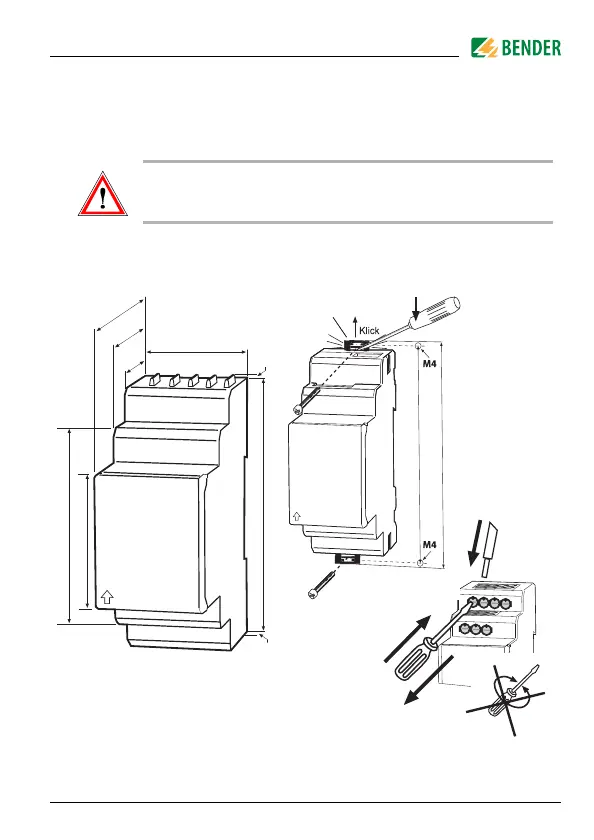

Dimension diagram, drawing for sc
rew mounting, push-wire ter-
minal connection
The front plate cover is easy to open at the lower part marked by an arr
ow.
Ensure safe isolat
ion from supply in the instal
lation area. Ob-
serve the instal
lation rules for l
ive working.
90 mm
45
67,5
36 mm
31,1
47,5
70,5
2
2
1
2
3
100 mm
116 mm
Zubehör/
Accessory
12
14
