Operation and sett
ing
25
TGH1442en/06.2012

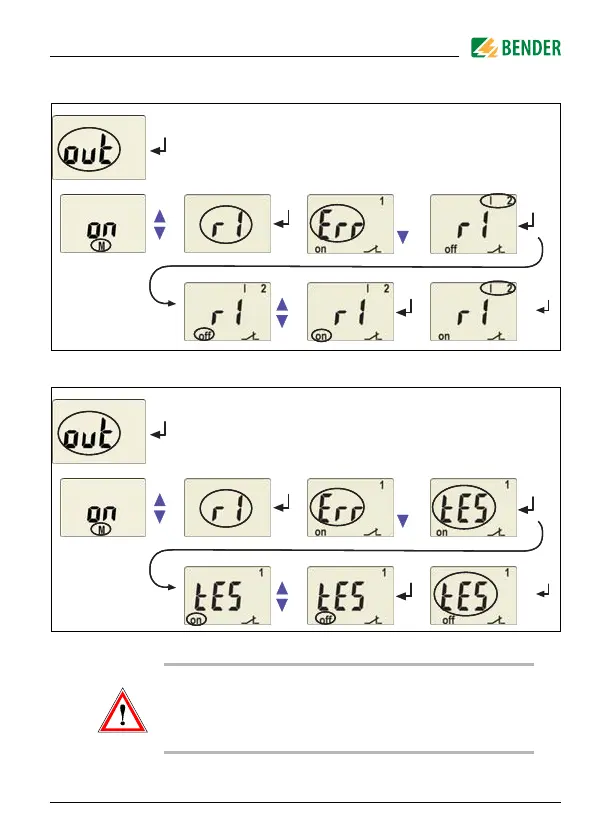

Alarm relay K1: Acti
vating the category response value I
2
Alarm relay K1: Deactivating the ca
tegory "Alarm by device test"
When an alarm re
lay (K1/K2) has bee
n deactivated in the
menu, an alarm will not be si
gnalled by the respectiv
e
changeover contac
t! An alarm will only be
indicated by
the respective a
larm LED (AL1/AL2)!
4x
3x
>1,5 s
2x
4x
3x
>1,5 s
3x
24
26
