BENDIX VORAD VS-400

To Next Page

To Previous Page

General Information

Pretest Procedures

Step Procedure

K 1. VehicleIgnition:Key-ON,Engine-OFF.

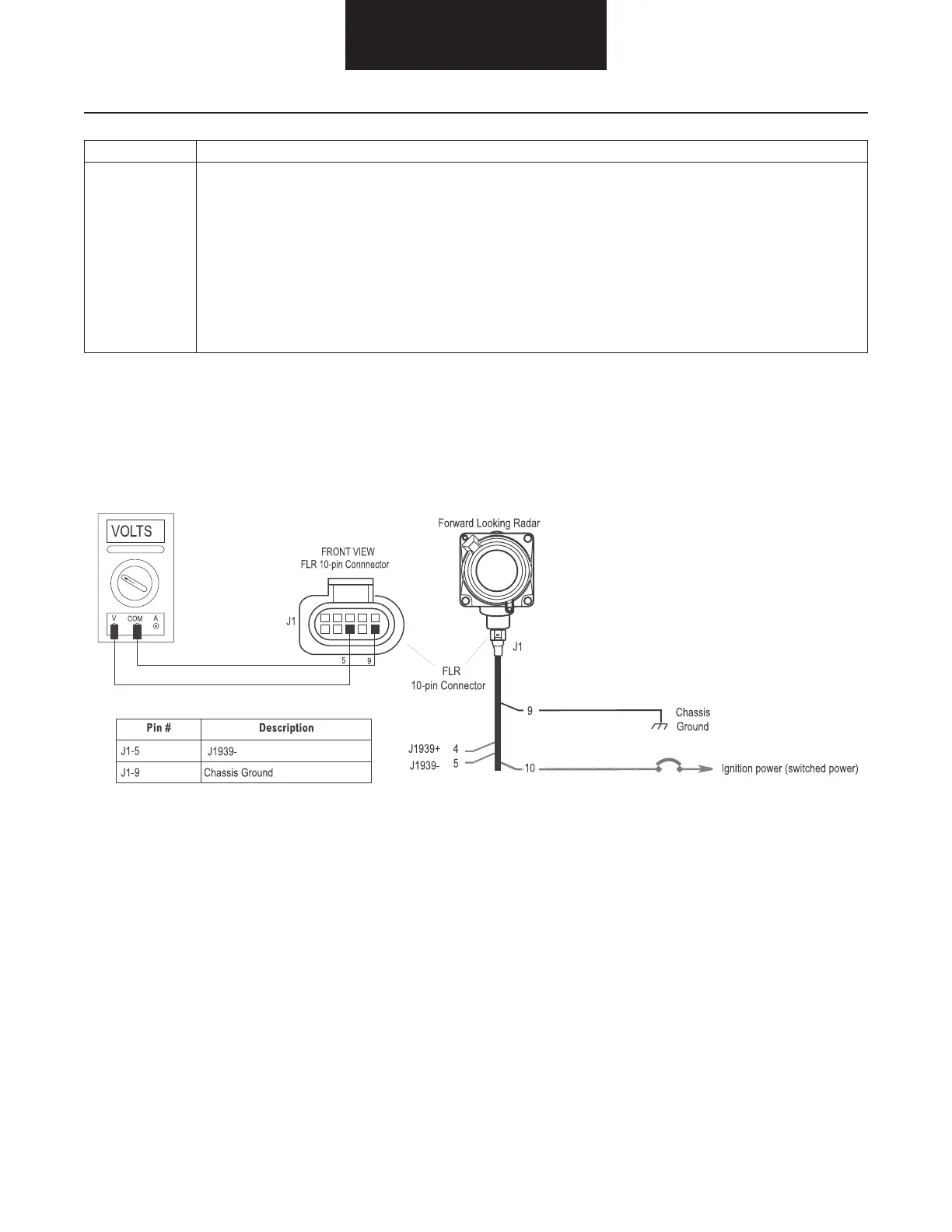

2. Measure for J1939 data voltage on pins 5 and 9 of the FLR harness connector.

(J1939 Low to Ground)

a. If the voltage is ﬂuctuating between 0 to 3 volts.

i. Proceed to Step L.

b. If the voltage is a constant 0 volts.

     i.TestFailed.Checkforopen/looseconnectionsinthevehicle’sJ1939datalinkharness.

(See Note)

Note: Refer to vehicle OEM repair manual or contact the OEM for more information on the J1939 data link harness.

Other manuals for BENDIX VORAD VS-400
