BENDIX VORAD VS-400

General Information
42
Appendix 3 continued

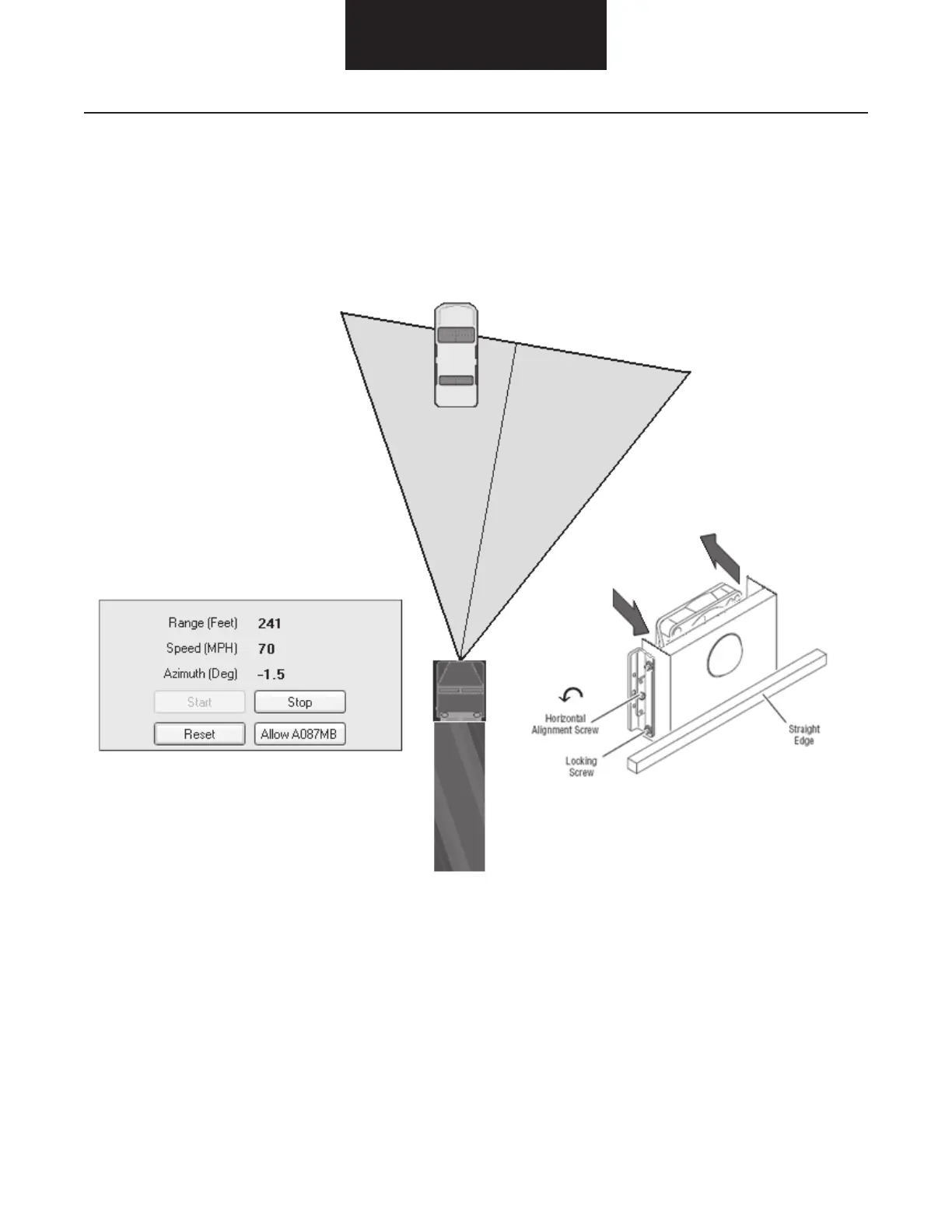

Positive Azimuth Adjustment (FLR too far to the Right)
If the alignment function shows a negative value, then the FLR is adjusted too far to the right, when looked at from the driver's seat. The
radar needs to be adjusted to the driver's left. To accommodate this, adjust the horizontal alignment screw, by turning it in a counter-
clockwisedirection,whenviewedfromthefrontofthevehicle.Eachfullrotationofthealignmentscrewadjustsforapproximately0.2°of
azimuthpositionfromthealignmentfunction.Forexample,iftheazimuthpositionwas-0.5°,thenthealignmentscrewshouldbeadjusted
2
1
/2 turns counter-clockwise.
After adjustment of the FLR, perform the calibration procedure again to verify proper alignment.
