Appendix 3 continued

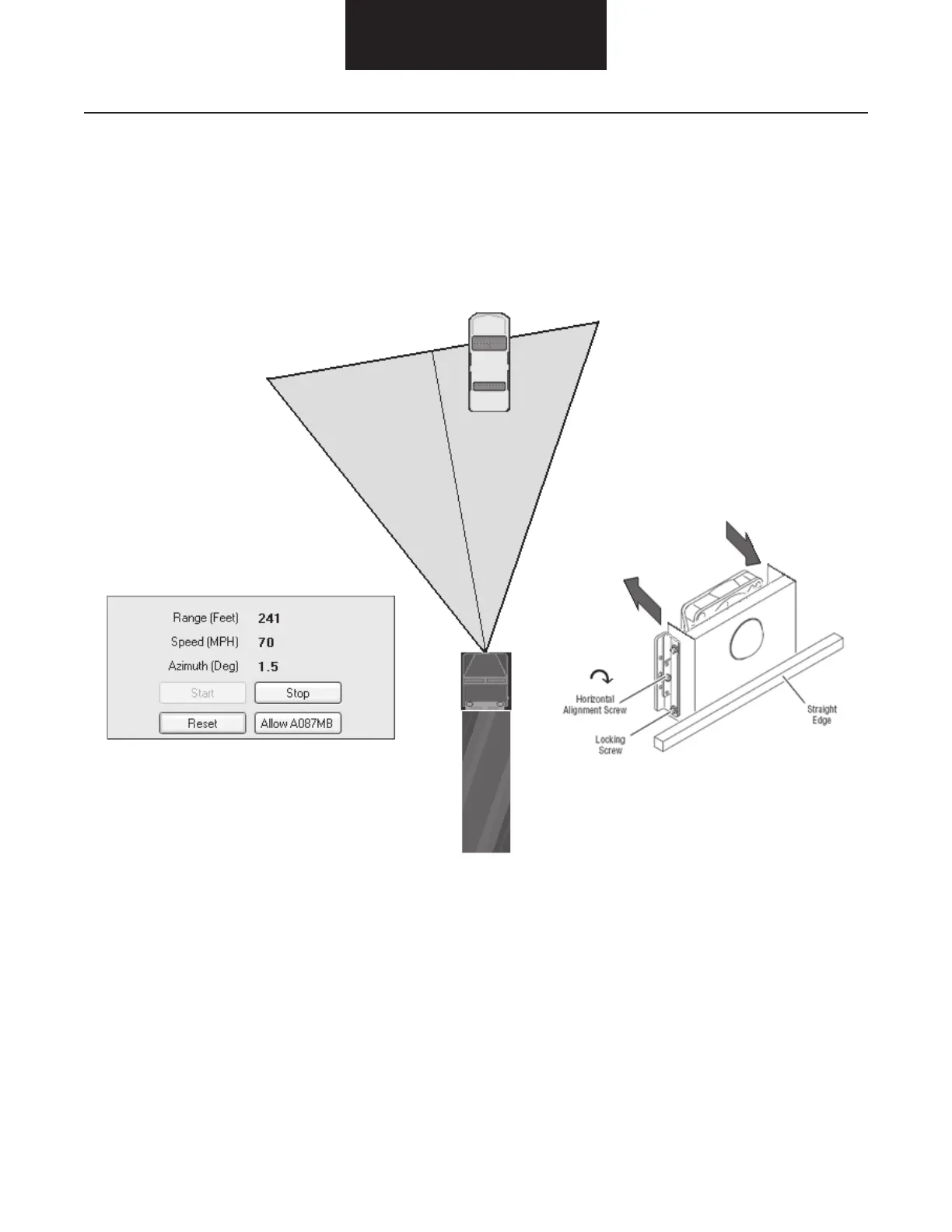

Negative Azimuth Adjustment (FLR too far to the left)
If the alignment function shows a positive value, then the FLR is adjusted too far to the left, when looked at from the driver's seat. The radar
needs to be adjusted to the driver's right. To accommodate this, adjust the horizontal alignment screw by turning it in a clockwise direction,
whenviewedfromthefrontofthevehicle.Eachfullrotationofthealignmentscrewadjustsforapproximately0.2°ofazimuthpositionfrom
thealignmentfunction.Forexample,iftheazimuthpositionwas0.5°,thenthealignmentscrewshouldbeadjusted2
1
/2 turns clockwise.
After adjustment of the FLR, perform the calibration procedure again to verify proper alignment.
