HD-14T Four Post Lift 18 P/N 5900037 — Rev. F — February 2022
Deciding the Lift Orientation
Before going any further, decide how you want to orient your Lift. This decision affects where you will
place your Power Post and also the positioning of the Runways, which are
not
interchangeable.
The Powerside Runway and
must
be installed next to the Power Post. You can choose to position
your Power Post at either the Front Driver-Side or the Rear Passenger-Side. The Drive-up
Ramps are not affected by the Power Post location.
The drawings in this manual show the Power Post at the Rear Passenger-Side, but that does not
mean you have to. In many cases, the main factor is the location of the power source; many
customers prefer to place their Power Post (which holds the Power Unit) near the power source. If
power is not an issue, choose the option below that best fits your setup.
Important: Installers, you need to have the Lift owner make this decision no later than when
moving the Posts into position.

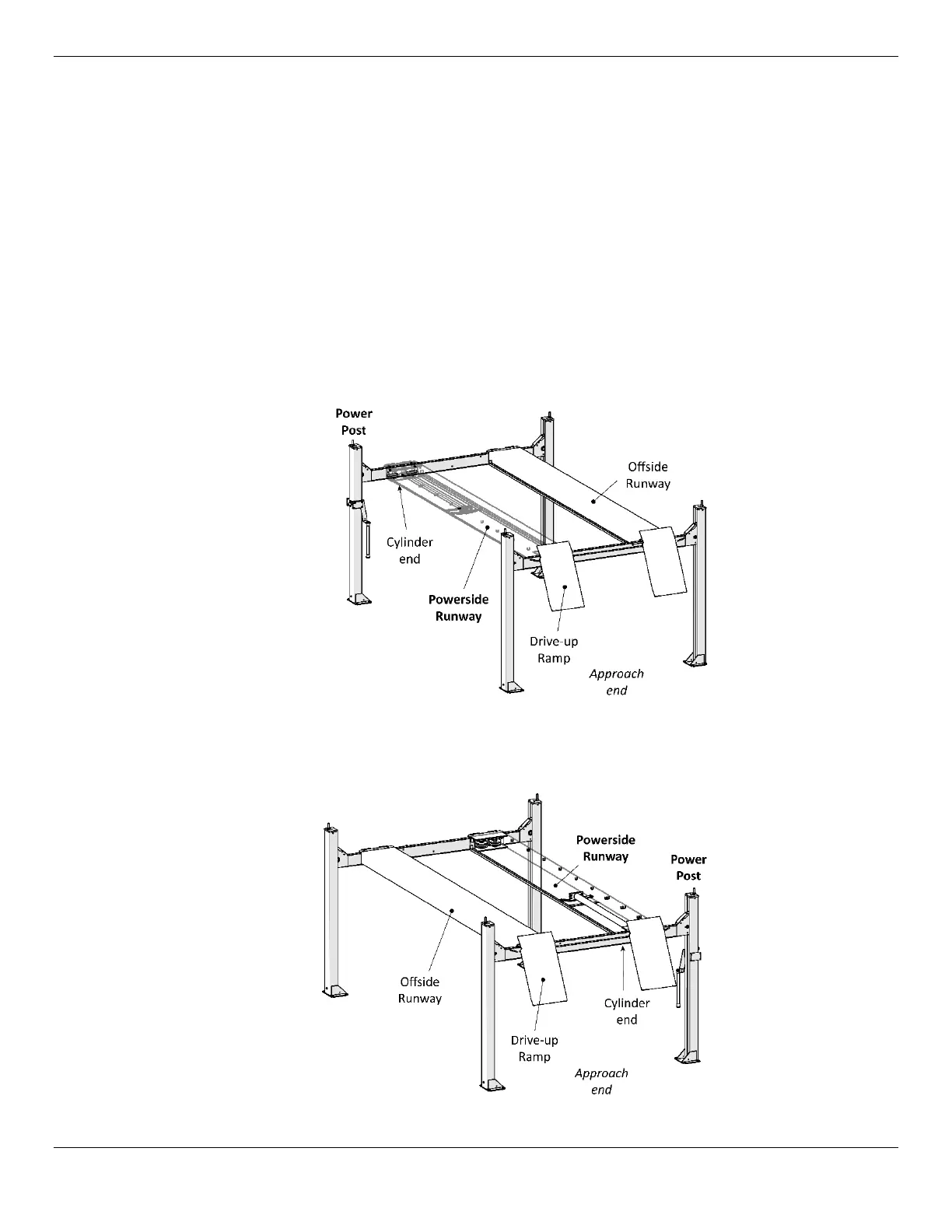

Power Post Location –
Front Driver-side
Power Post Location –
Rear Passenger-side
