Installing the Ladders and Top Cap
Your Lift has four Ladders (one per Post); each gets installed on the inside back of a Post. Ladders are
secured at the top and the bottom.
The Top Caps secure the Ladder at the top of each Post and hold the ends of the Cables.
Note: It is much easier to secure the bottom of the Ladders once the Crosstubes have been
raised, so that portion of installing the Ladders is described in Securing the Ladders.

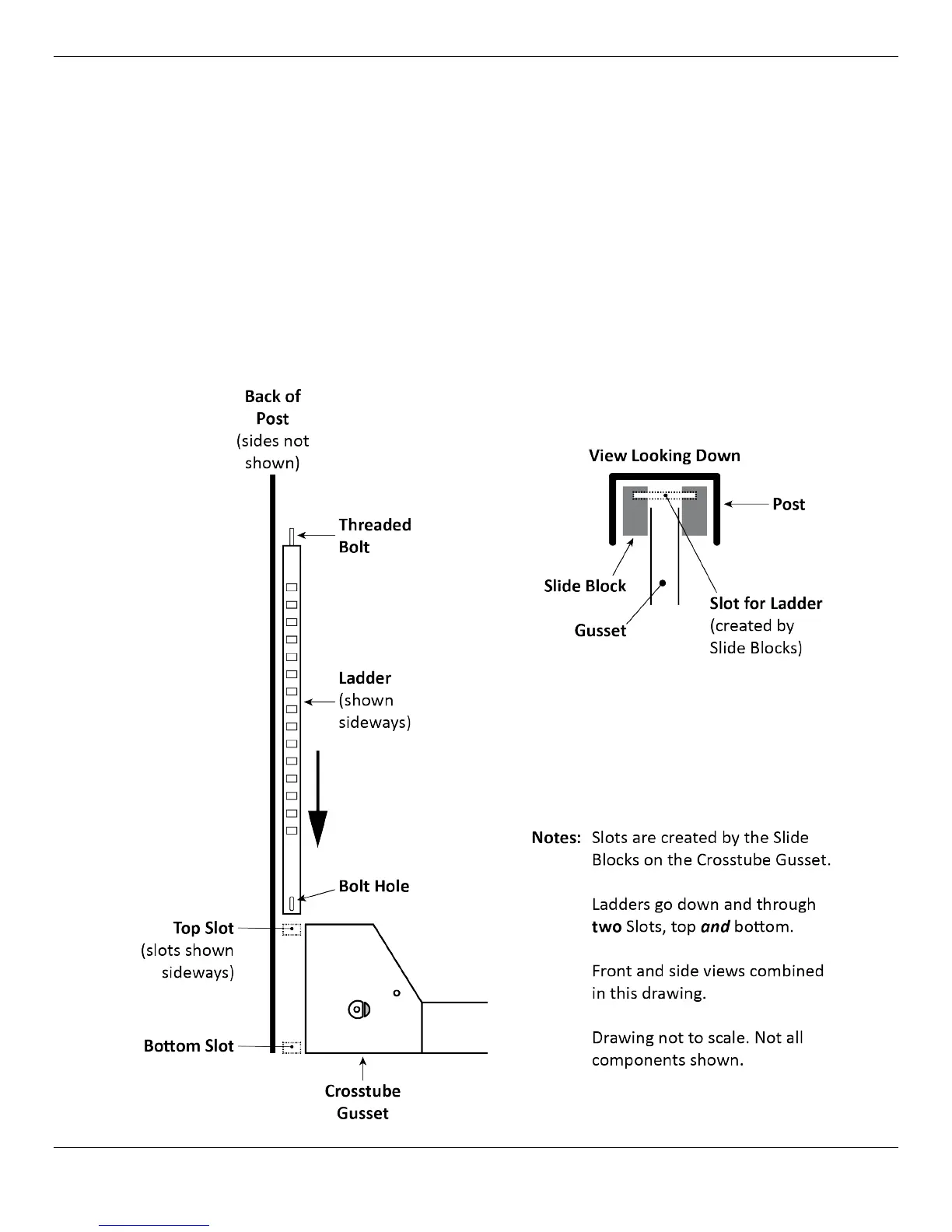

Each Ladder has 15 holes in it, spaced four inches apart; these holes are the Safety Locks. Each
Ladder has a Bolt Hole at the bottom and a Threaded Bolt at the top.
⚠ WARNING Make sure to install the Ladders correctly. If they are not installed correctly, the
Safety Locks on your Lift may not hold the weight of a vehicle, putting anyone
under the Lift in danger.
