HDS-14LSX / HDS-14LSXE Lifts 28 P/N 5900162 — April 2018 — Rev. F3
Installing the Return Line
The Return Line takes excess Hydraulic Fluid coming out of the Hydraulic Cylinder and sends it back
into the Fluid Reservoir on the Power Unit.
The Return Line is a single piece of ¼ inch, black, polyethylene Tubing with Elbow Compression
Fittings on each end. You need to cut off a piece of the supplied Tubing — of the right length, 18 to 20
feet — to create the Return Line.
Important: The Return Line uses the same ¼ inch, black, polyethylene Tubing as the Air Lines. Be
sure not to confuse the two; the Return Line and the Air Lines do completely different
things and must be kept separate from each other.

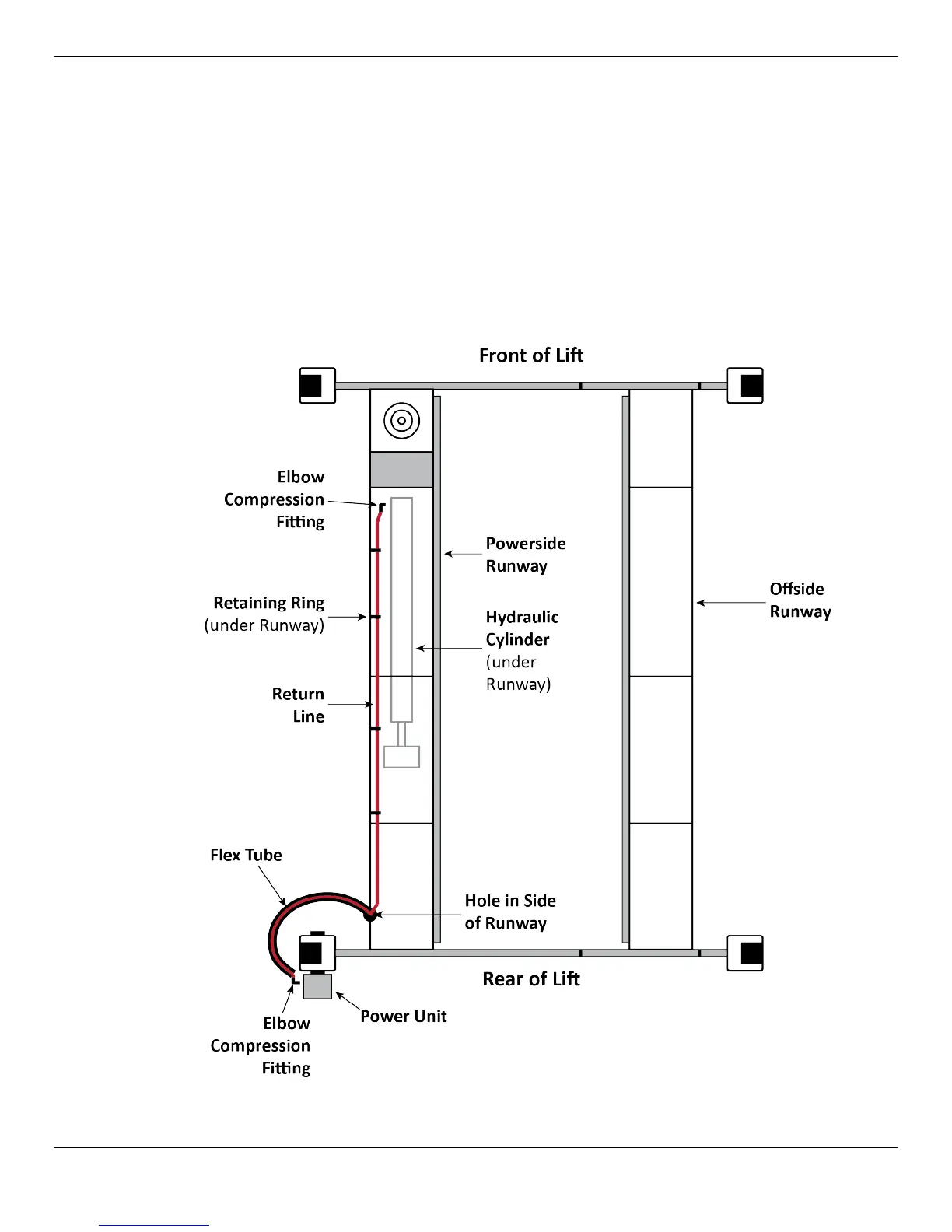

The following drawing shows where the Return Line connects on the Lift.
