HDS-14LSX / HDS-14LSXE Lifts 30 P/N 5900162 — April 2018 — Rev. F3
Installing the Air Lines
The Air Lines use air pressure to disengage the Safety Locks in each Post so that you can lower the
Runways.
It is your responsibility to supply the air pressure (minimum of 30 PSI /
3 CFM required).
You will need more of the ¼ inch, black, polyethylene Tubing that came with the Lift and three Air Line
Tee Connectors to install the Air Lines.
Important: Do not confuse the Air Lines with the Return Line. They use the same Tubing and
similar-looking connectors, but they are used for completely different things; the two
systems cannot be connected to each other.
The Air Line Elbow Connectors on the Crosstube Gussets come installed from the factory.

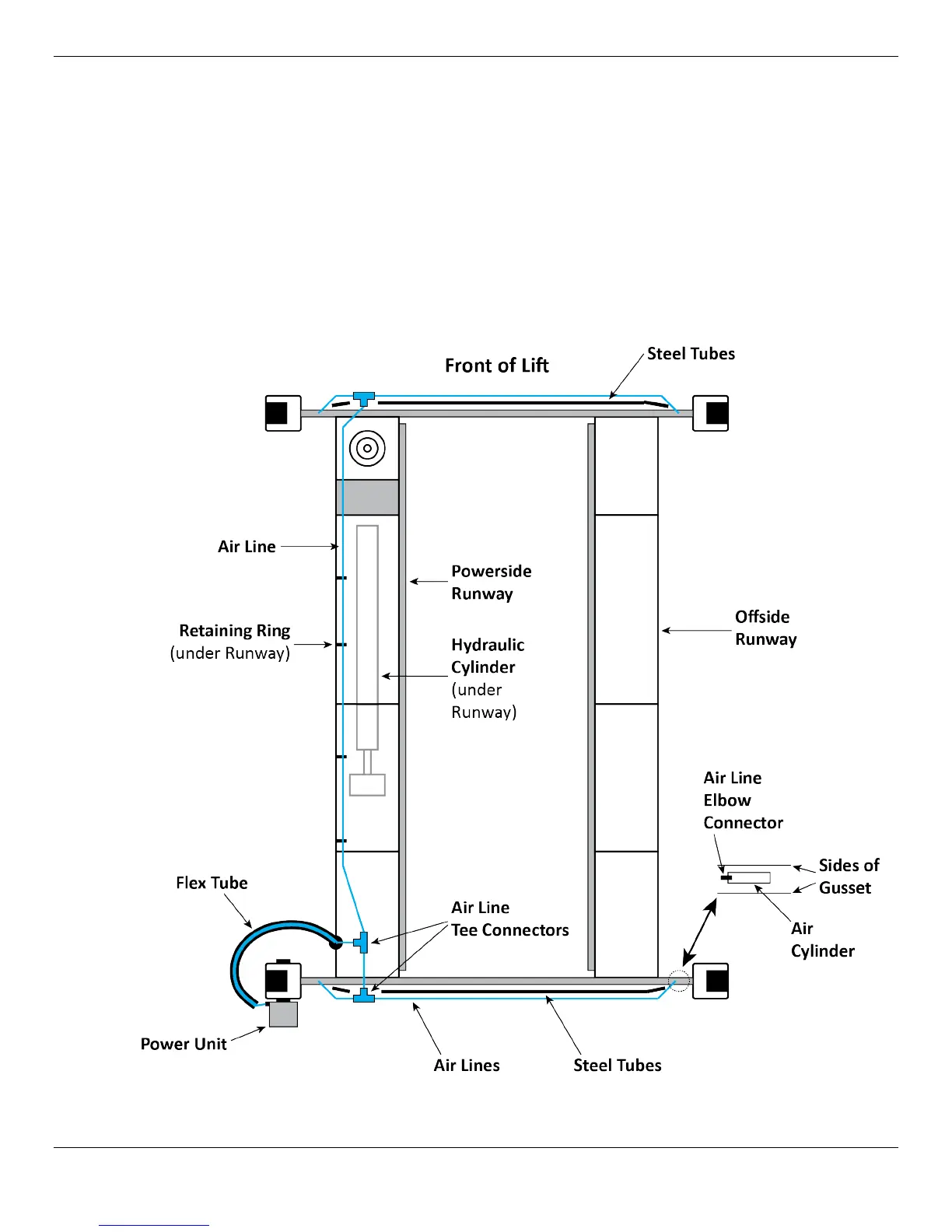

Drawing not to scale. Some components not shown. Air Lines shown outside Steel Tubes for clarity.
