HDS-14LSX / HDS-14LSXE Lifts 42 P/N 5900162 ā April 2018 ā Rev. F3
To finish the Cable routing:
1. Put both Sheave Pins back into place (remember the two are not interchangeable), then insert and
tighten the Sheave Pin Lock Screw.

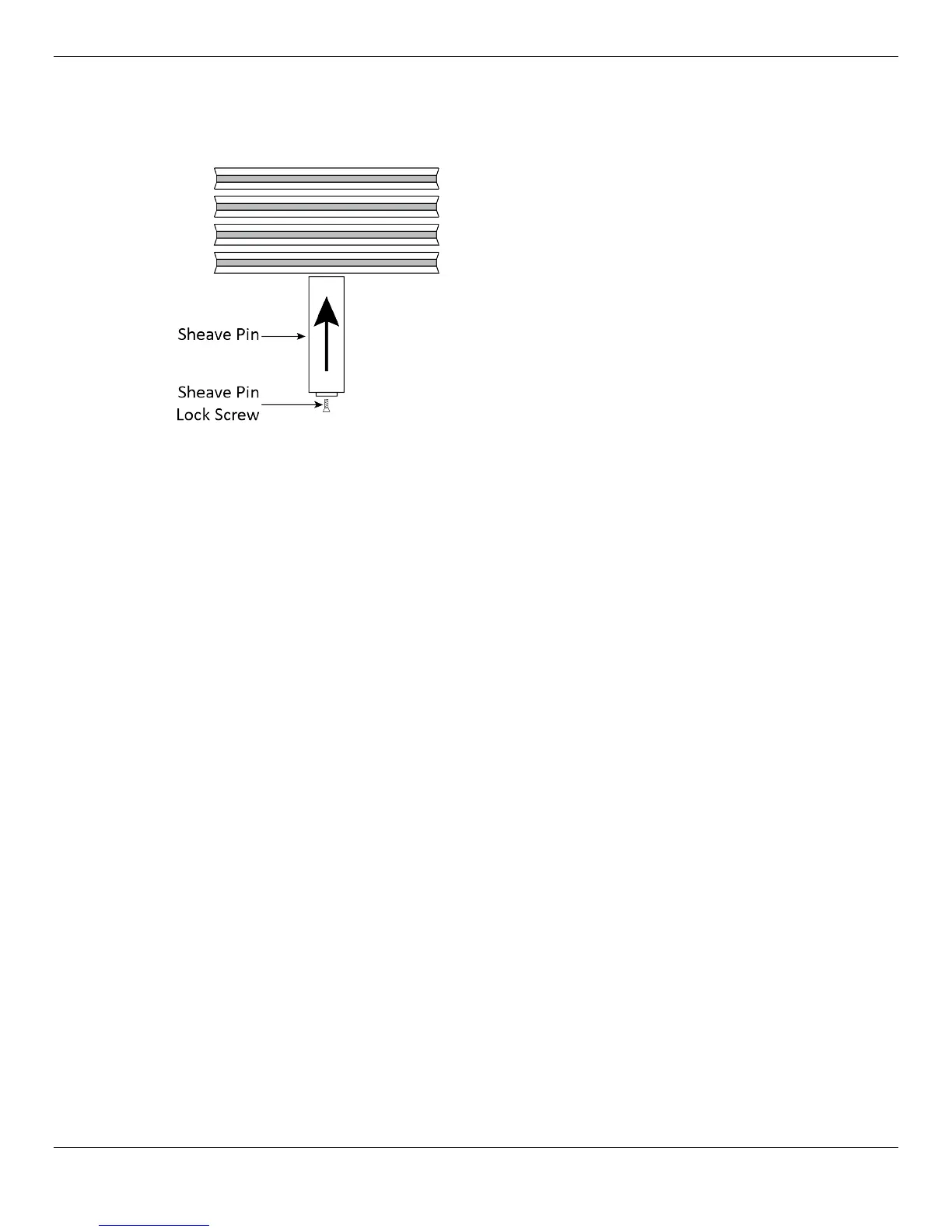

Drawing shows Sheave Pin being pushed
up into the four Cable Sheaves at the Rear
of the Lift.
Not to scale. Not all components shown.
You may have to move the Cable Sheaves around some to get the Sheave Pins back into place;
they will not go in all the way until all of the Cable Sheaves are aligned.
Make sure to install the correct Sheave Pin in the correct location
; they are not
interchangeable. The Sheave Pin at the Front of the Lift, which holds two Cable Sheaves, has two
lubrication holes inside it. The Sheave Pin at the Rear of the Lift, which holds four Cable Sheaves,
has four lubrication holes in it.
2. Go back and make sure that each Cable goes up its Post between the Slack Safety Sheave and
the Gusset Sheave.
3. Go back and check each Cable carefully to make sure each one is seated in the middle of each
Sheave (Cable Sheave and Gusset Sheave) that it passes through.
If you find one that is not seated correctly, adjust it until it is.
4. Check all four Cable Lock Pins (at the bottom of each Crosstube Gusset) to make sure they are
securely in place with the Cables
above
them.
5. Cable routing is now complete.
