HDS-14LSX / HDS-14LSXE Lifts 44 P/N 5900162 ā April 2018 ā Rev. F3
Drawing not necessarily to scale. Not all components shown.

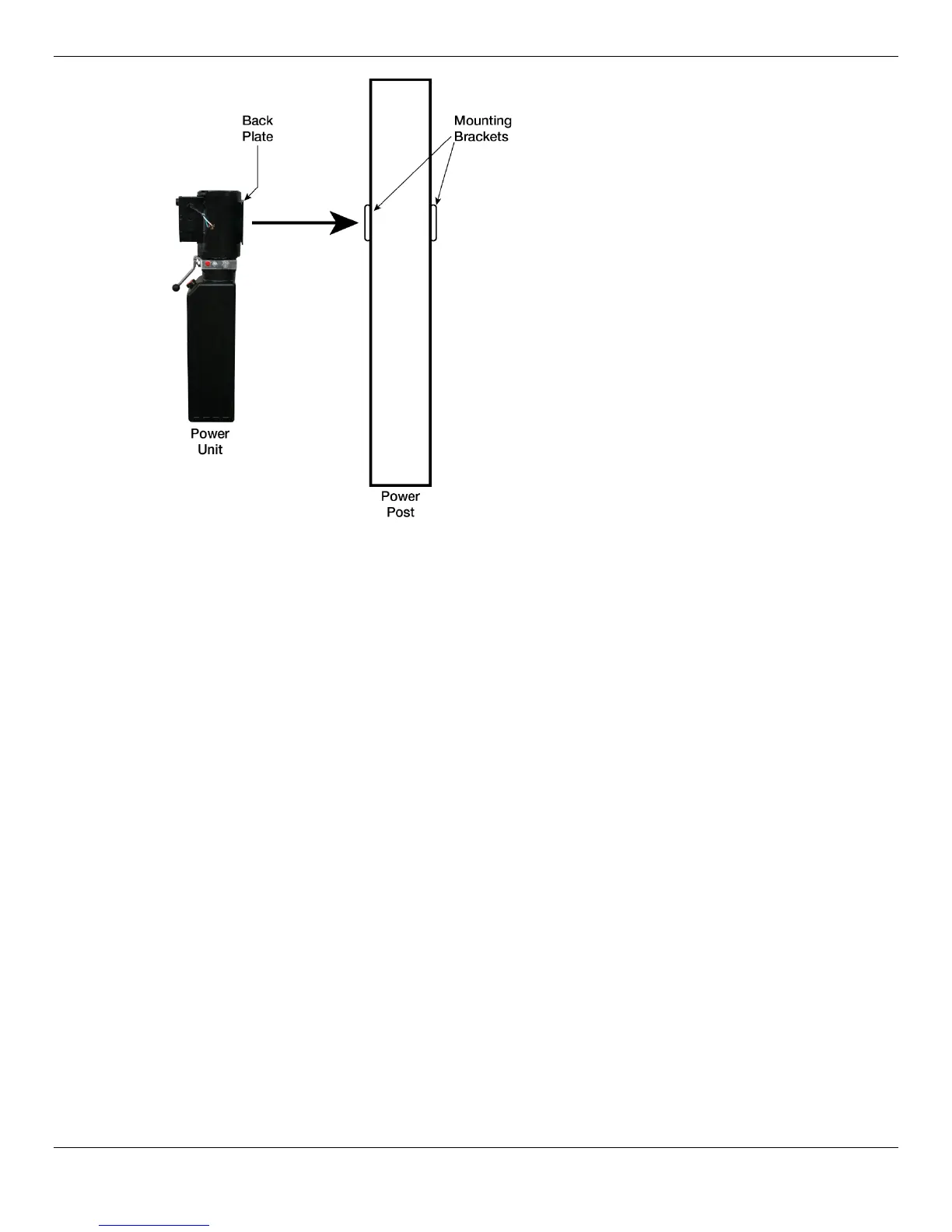

3. Connect the Power Unit to the desired Mounting Brackets on the Power Post.
4. Fill the Hydraulic Reservoir on the Power Unit with approved fluids.
The Hydraulic Reservoir holds approximately 3.6 gallons (14 litres). Use care to keep the fluid clean
when filling the reservoir.
Approved fluids are any general purpose ISO-32, ISO-46, or ISO-68 hydraulic fluid or approved
automatic transmission fluids such as Dexron III, Dexron VI, Mercon V, Mercon LV, or any synthetic
multi-vehicle automatic transmission fluid.
Do not connect the Power Unit to a power source at this point.
