HDS-14LSX / HDS-14LSXE Lifts 46 P/N 5900162 — April 2018 — Rev. F3

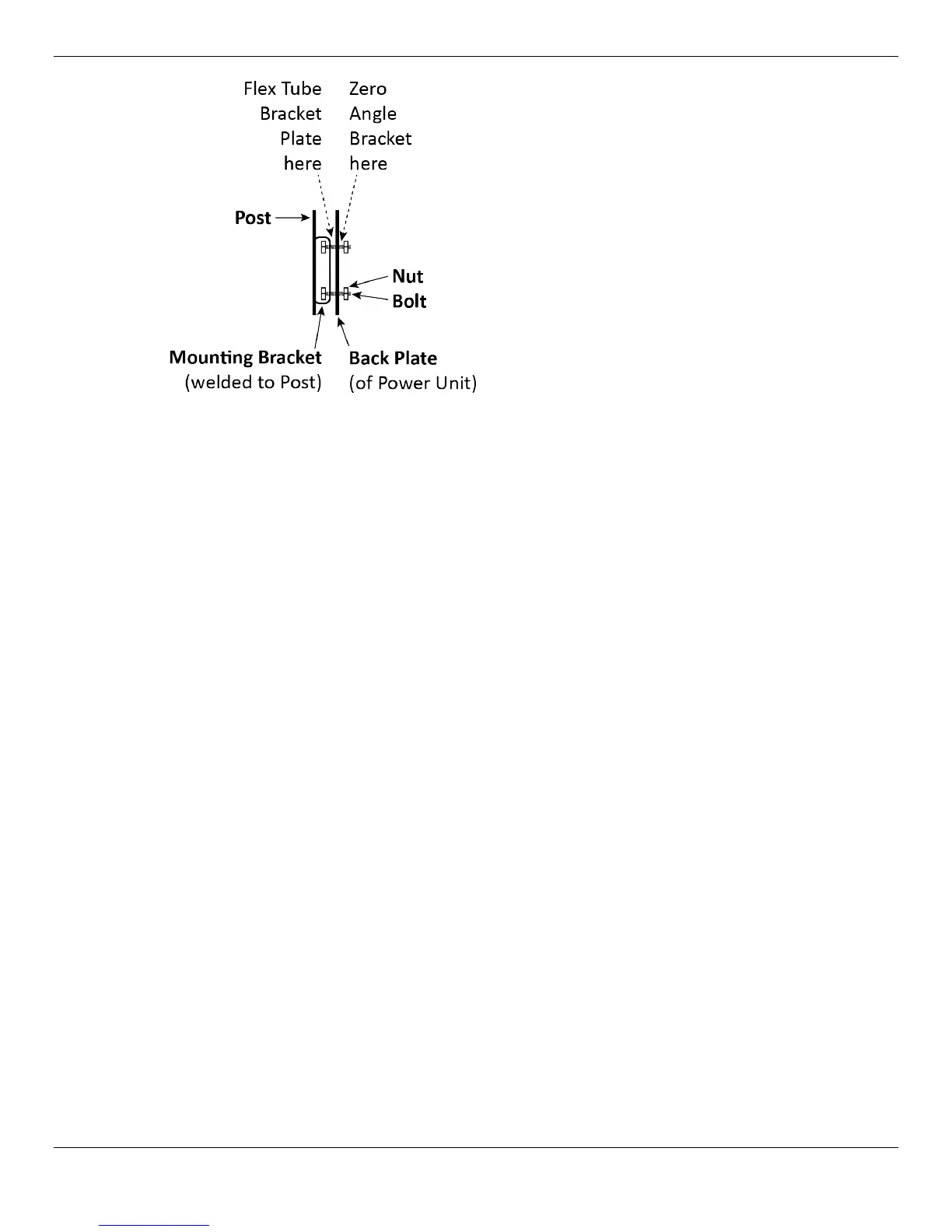

Drawing not necessarily to scale. Not all components shown. Side view of where the Power Unit
attaches to the Power Post. Some aspects exaggerated for clarity.
3. Connect the Flex Tube Angle Plate to the Flex Tube Bracket Plate so that the hole for the Flex
Tube is best positioned for connecting the Return Line, the Air Line, and the Hydraulic Line.
The Flex Tube Angle Plate can be connected on either side of the Flex Tube Bracket Plate.
4. When the Flex Tube Angle Plate is in place, unscrew the Plastic Nut from the end of the Flex Tube.
5. Holding the Flex Tube by the Plastic Collar, put the Threads through the hole on the Flex Tube
Angle Plate
from underneath .
6. Screw the Plastic Nut back onto the Threads and tighten.
