HDS-14LSX / HDS-14LSXE Lifts 7 P/N 5900162 — April 2018 — Rev. F3

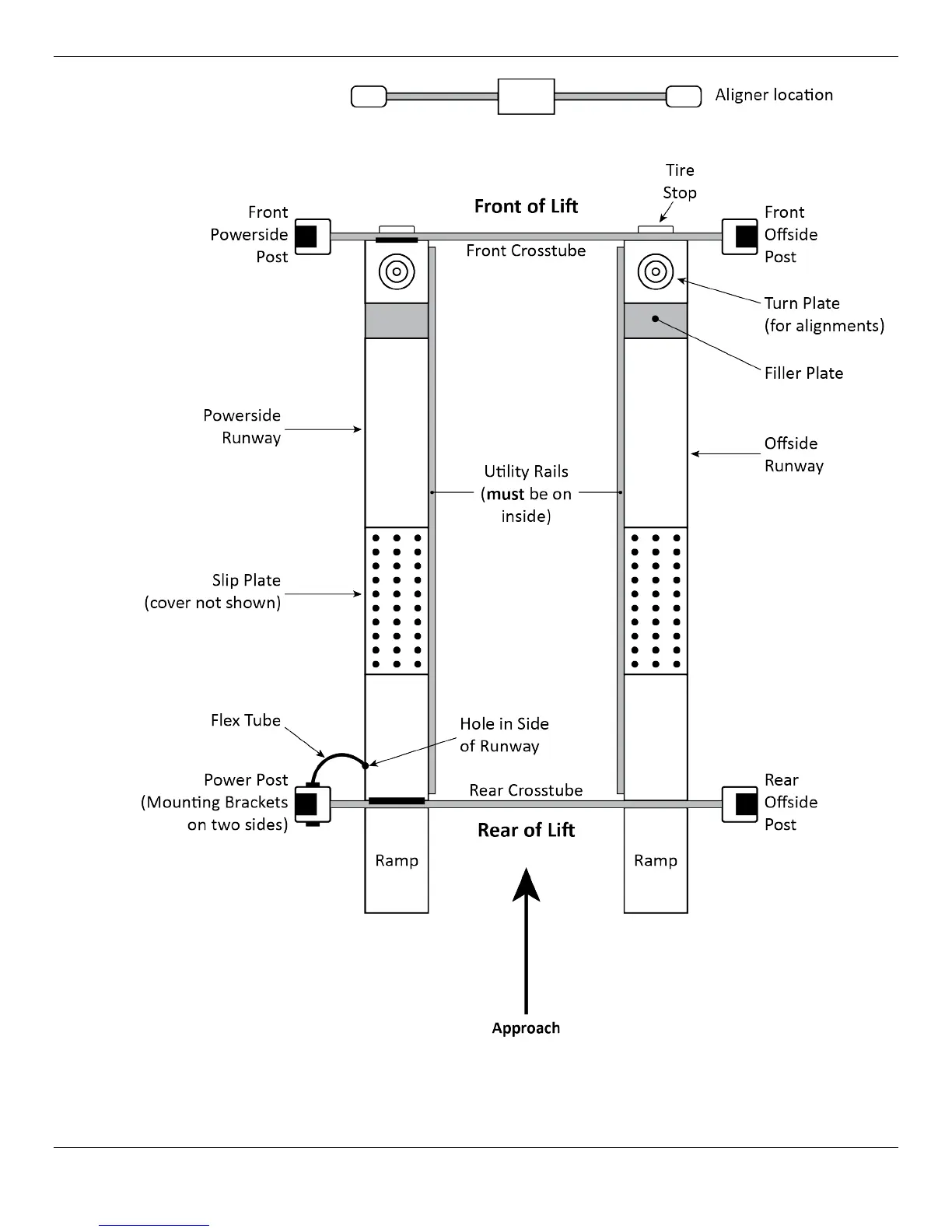

Drawing not necessarily to scale. Some components not shown. Aligner is a separate product; it is not
included with the Lift. The Front of the Lift is the end
opposite the Ramps.
