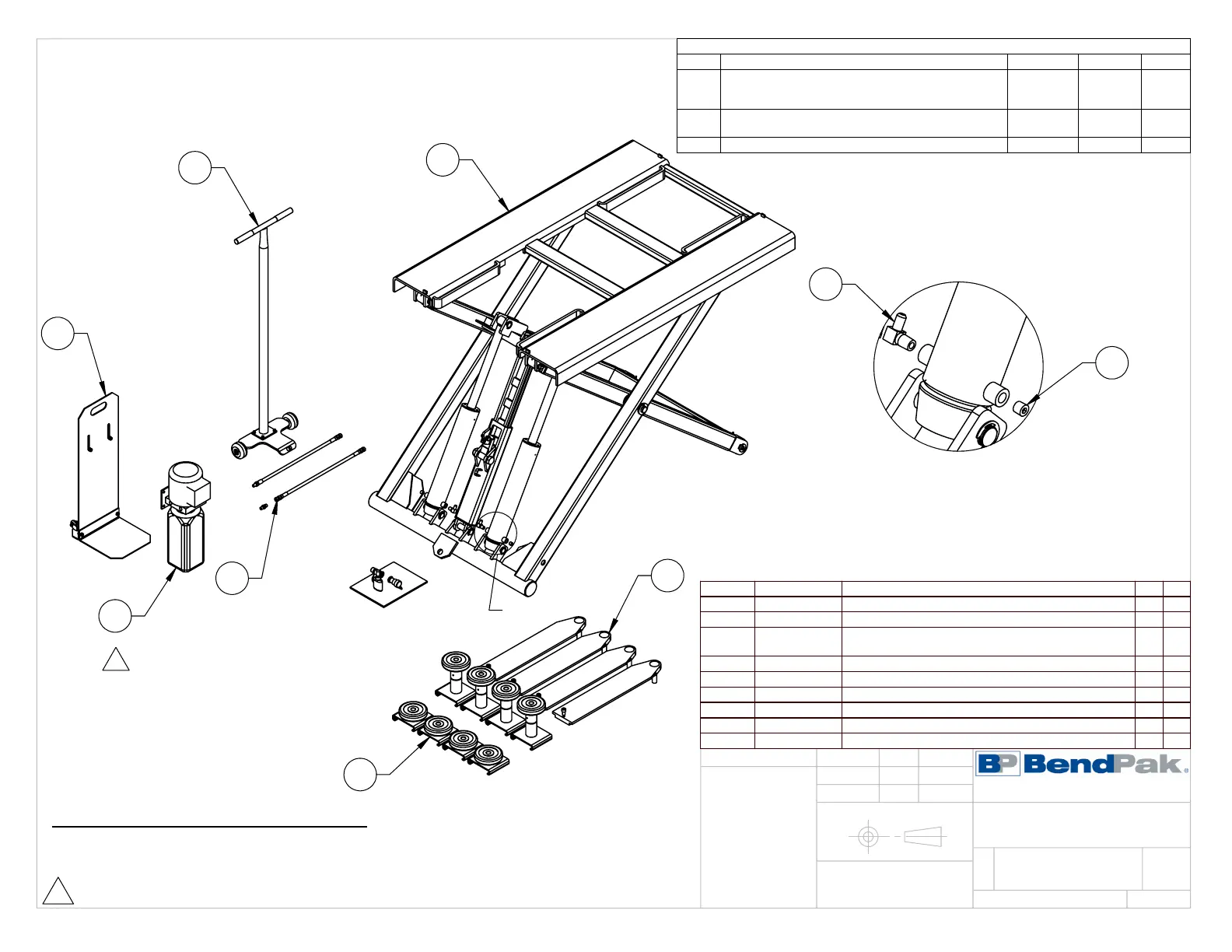

DIMENSIONS ARE IN MM
☺
A
2
5
3
1
6
4
9
4
DETAIL A
SCALE 1 : 5
7
8
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
C
REPLACED LABELS WITH COLORS & GRAPHICS
NOTE, REPLACED 5940070 WITH PACKAGING
INSTRUCTION NOTE
09/30/2021
CA
01350
D
ADDED POWER UNIT AND REFERENCE NOTE,
UPDATED BOM REVISION
12/17/2021
CA
01368
E
UPDATED BOM REVISION
03/02/2022
CA
01397
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5245128
MD-6XP LIFT SUPERSTRUCTURE
1
N
2 5215871
LOW RISE TOW CART ASSEMBLY
1
C
3 5215983
LOW RISE WHEELED POWER UNIT STAND
ASSEMBLY
1
C
4 5250128
MD-6XP PARTS BOX
1
W
5 5570054
HYDRAULIC HOSE ASSEMBLY Ø6.4 x 540mm DS
1
C
6 5600237
MD-6XP LIFT ARM WELDMENT
4
C
7 5550086
FTG ELB -04 NPT x -04 JIC
2
-
8 5550145
FTG PLG -04 NPT
2
-
9
REF
POWER UNIT
1
-
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
E
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
OR
5260652
MD-6XP PRODUCTION
LIFT VER C
06/03/2021
DO NOT SCALE DRAWING
1:20
SCALE:
THIRD ANGLE PROJECTION
OR
03/02/2022
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT
3.
POWER UNIT REFERENCE ON PURCHASE ORDER
4.
