12

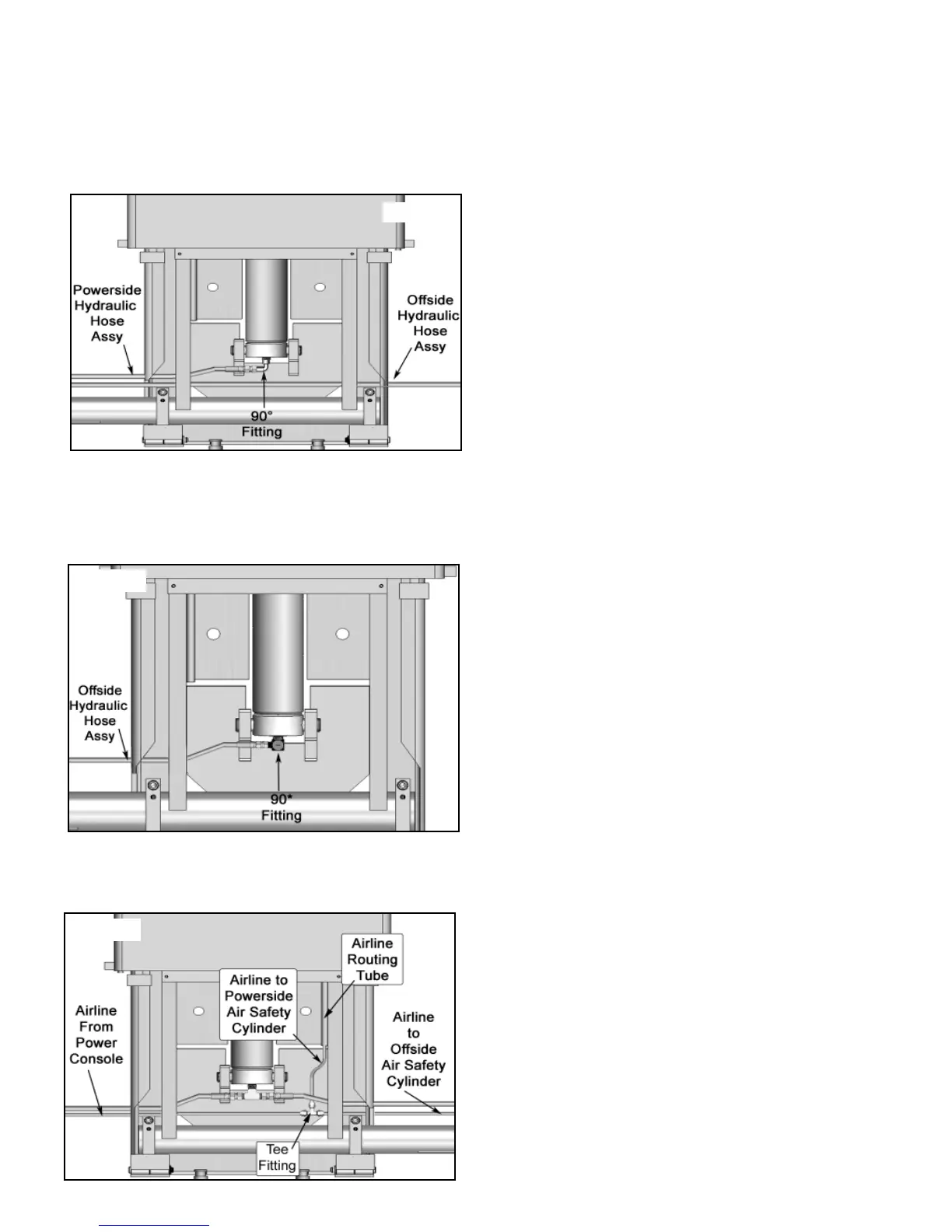

2. Route the two Hydraulic Hoses through the hole at the
Powerside of the Lift Frame and connect the Powerside
(medium) Hose to the 90° Fitting of the Powerside Cylinder.
(See Fig. 5.2)
DO NOT use Tefl on tape or other sealant on
JIC fi ttings. DO NOT OVER-TIGHTEN.
3 Route the Offside Hydraulic (Long) Hose to the Offside
Cylinder and connect it to the 90° Fitting (See Fig. 5.3 )
DO NOT use Tefl on tape or other sealant on
JIC fi ttings. DO NOT OVER-TIGHTEN.
4. Route the 1/4” Poly-Flow Air Tubing through the hole at
the Powerside of the Lift Frame connect it to the Tee Fitting.
(See Fig. 5.4)
Fig. 5.3
Fig. 5.4
Fig. 5.2
