BendPak XPR-10A User Manual

5252

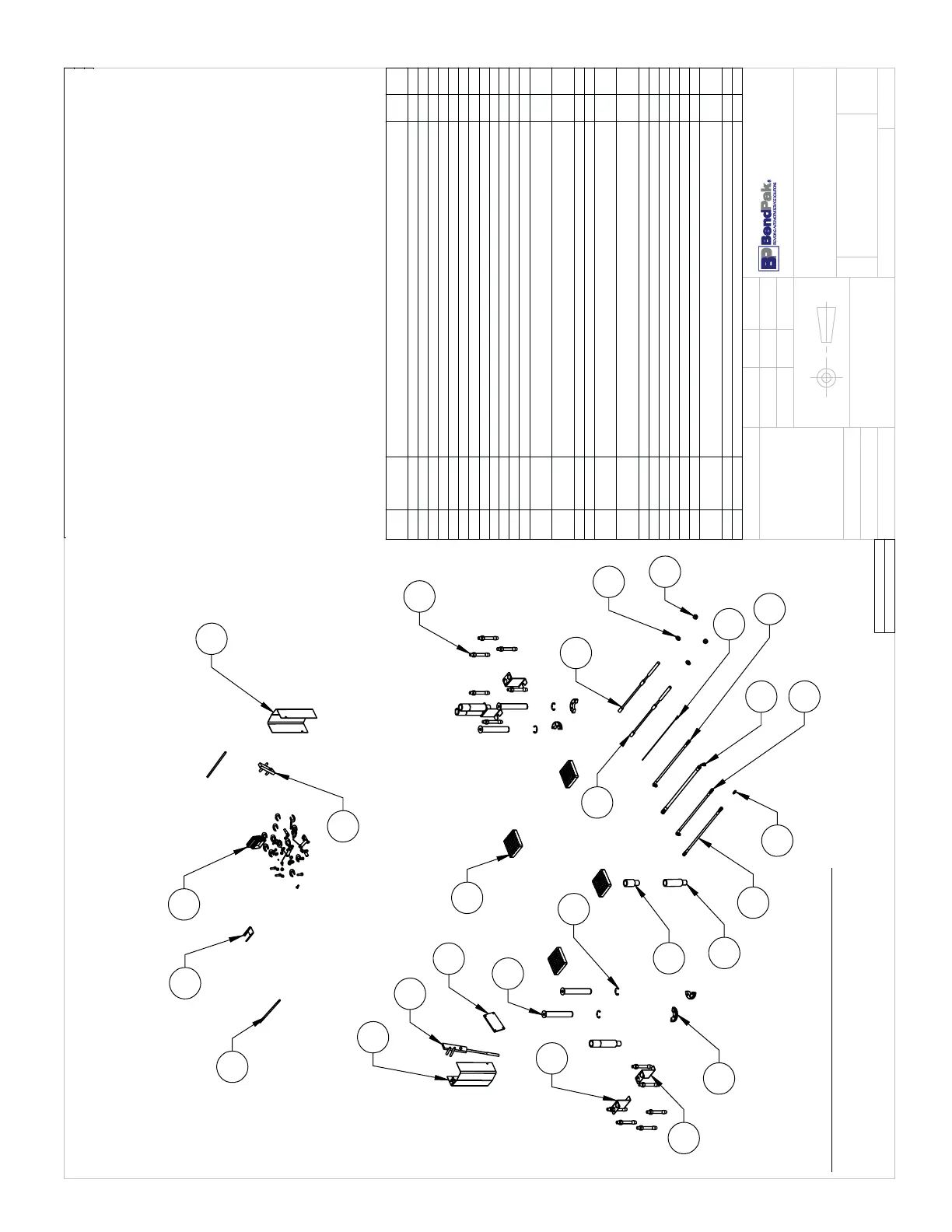

DIMENSIONS ARE IN MM
☺
1
17
10
12
3
7
5
6 8
19
15
2
13
18
11
9
16
14
20
21
4
22
23
24
25
26
27
NEXT ASSEMBLY
5260324
ITEM
NO
PART
NUMBER
DESCRIPTION
QTY
REV
1 5174518
XPR-10/12C/15C/18C PARTS BAG
1
C
2 5505116
MX-10, XPR-7/9/10 LIFT HEAD PIN WELDMENT
4
B
3 5595366
XPR-10A CABLE ASSEMBLY Ø10 x 10014mm DBST
1
A
4 5595358
XPR-10A CABLE ASSEMBLY Ø10 x 10130mm DBST
1
A
5 5570832
XP/XPR/MX HYDRAULIC HOSE ASSY Ø6.35 x 2299mm SB
1
B
6 5570017
XP/XPR HYDRAULIC HOSE ASSY Ø10 x 1219mm SB
1
A
7 5595047
XP/XPR-10ACX/CX, XPR-7TR Ø2.4 x 7747 SAFETY CABLE
1
B
8 5570038
XP/XPR-10C/AC HYDRAULIC HOSE ASSY Ø6.35 x 8040 SB
1
B
9 5210007
XP/XPR POWER SIDE SAFEY ASSEMBLY
1
B
10 5210010
XP/XPR OFF SIDE SAFETY WELDMENT
1
B
11 5715003
POWER UNIT VIBRATION DAMPENER
1
B
12 5215250
MD-6XP, ALL XP/XPR SLIP ON LIFT PAD ASSEMBLY
4
B
13 5730663
XP/XPR-9/10, XPR-7 POST ASSEMBLY LIFT HEAD FOOT
GUARD R.H.
2
B
14 5730664
XP/XPR-9/10, XPR-7 POST ASSEMBLY LIFT HEAD FOOT
GUARD L.H.
2
B
15 5736171
MX, XPR-9/10 BOLT ON ARM RESTRAINT GEAR
4
B
16 5600163
XPR-7TR/10/12C/15/18C POWER SIDE SAFETY COVER
1
B
17 5210009
XP/XPR-7TR/7TRFD/ 9FD/9FDX/10/12/12FD/15/18C OFF
SIDE SAFETY COVER
1
B
18 5746390
XP/XPR/RJ/MX/MD-6XP SHORT LIFT PAD EXTENSION
(113mm LG.)
4
A
19 5746395
MX/XP/XPR LONG LIFT PAD EXTENSION (182mm LG.)
4
A
20 5545342
WASHER M18 FLAT
2
-
21 5535358
NUT M18 x 2.5 NL
2
-
22 5540129
E RING Ø38mm OD
4
-
23 5746167
DOUBLE THREADED ROD M10 x 1.5 x 275
2
B
24 5700400
MX/XP/XPR MICROSWITCH COVER PLATE
1
A
25 5570176
XPR-9D/10/10A HYDRAULIC HOSE EXTENSION ASSY Ø6.35
x 330mm DS
1
A
26 5550095
FTG NPL -04 JIC x -04 JIC
1
-
27 5530307
AB 3/4" x 5"
12
-
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE, DERIVED FROM 5250230
08/30/2010
TM
00396
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
A
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
TM
5250322
XPR-10A PARTS BOX
---
---
08/30/2010
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
AC
09/20/2010
NOTE: UNLESS OTHERWISE SPECIFIED
.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
INSERT PARTS BAG INTO PARTS BOX FOR SHIPMENT
2.
THREAD 5535358 WITH 5545342 ONTO CABLES FOR SHIPMENT
3.
HOSES AND CABLES IN REPRESENTATIONAL FORM
4.
