STEP 14
(Installing the Lift Arms)
1. Place the appropriate lift arm assembly in the lift
heads. (See Fig. 14.7 - 14.8)
2. Install the lift head pins into the lift head and through
the holes in the arm assembly. (See Fig. 14.1)
3. Install the snap ring into the groove in the lift head pin
on under side of the lift head. (See Fig. 14.2)
4. Each arm restraint gear can be oriented in a Left
or Right con guration on the arms. Each arm and arm
restraint gear must be positioned in the proper location in
the lift head. (See Fig. 14.3 - 14.4)
5. Loosen the arm restraint gear bolts and adjust the
arm restraint gears so that the teeth on the gear ring
mesh smoothly with the teeth on the gears of the arm
restraint pin. (See Fig. 14.5)
22

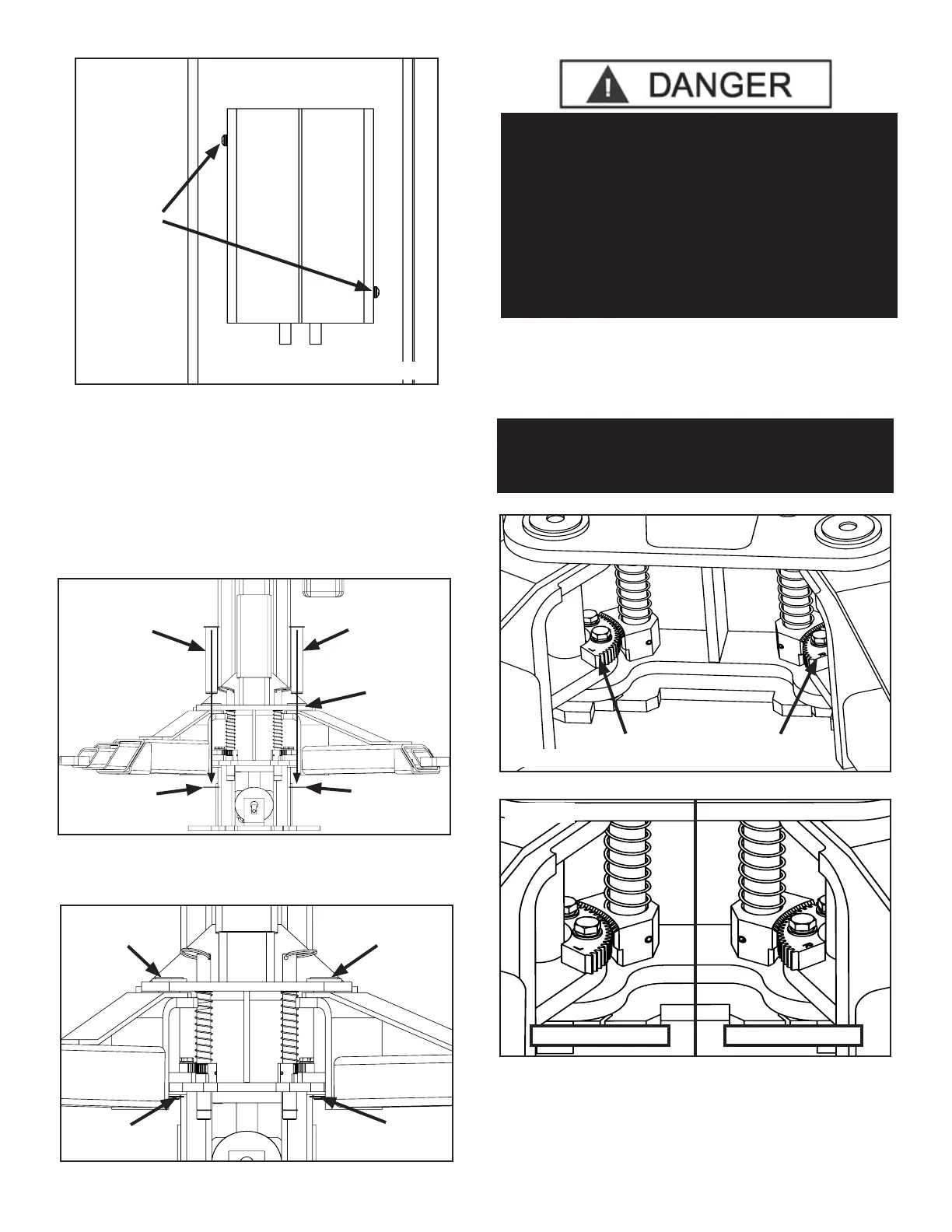

Fig. 13.5
Screw
Fig. 14.1
Lift Head
Pin
Lift Head
Pin
Snap
Ring
Snap
Ring
Lift Head
Fig. 14.2
Lift Head
Pin
Lift Head
Pin
Snap
Ring
Snap
Ring
DANGER!
THE ARM RESTRAINT GEARS MUST BE
POSITIONED AND ADJUSTED PROPERLY.
CONFIRMATION OF PROPER GEAR ENGAGEMENT
MUST BE MADE PRIOR TO THE OPERATION OF THE
LIFT. PERIODIC INSPECTION AND ADJUSTMENT
IS REQUIRED. FAILURE TO INSPECT AND ADJUST
THE ARM RESTRAINT GEARS ON ALL FOUR ARMS
PROPERLYCAN RESULT IN DAMAGE TO THE
VEHICLE OR INJURY AND/OR DEATH.
Fig. 14.3
NOTE: Arm gears rings have
Left and Right orientations
Fig. 14.4
LEFT RIGHT
NOTE:
LEFT AND RIGHT ARE DETERMINED WHEN FACING
THE INSIDE/OPEN SIDE OF THE LIFT POST.
