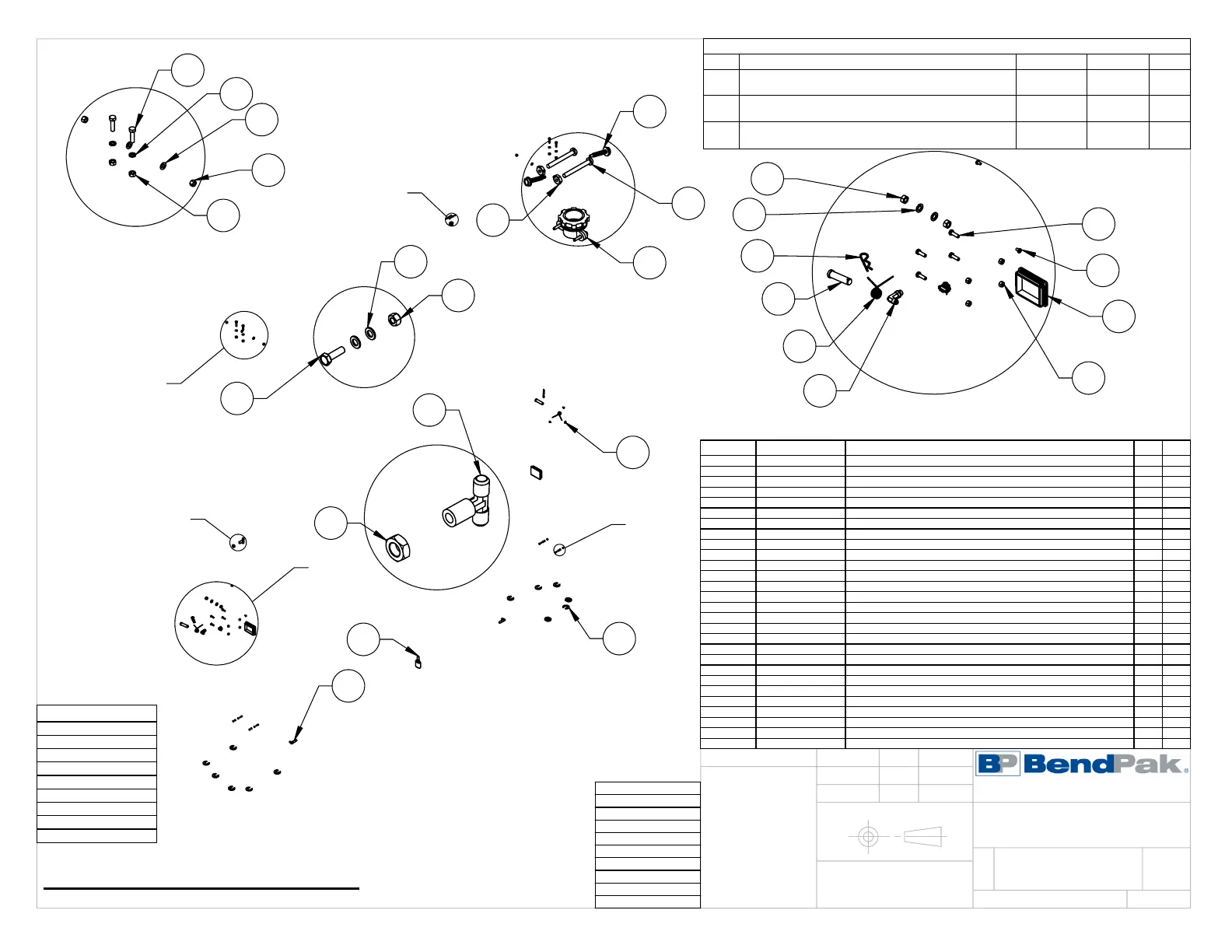

BendPak XPR-10S Service Manual

DIMENSIONS ARE IN MM
☺
A
B
C
E
D
4
18
21
28
DETAIL A
SCALE 1 : 12
15
13
14
20
19
DETAIL B
SCALE 1 : 12
1
16
7
8
12
11
2
9
10
5
DETAIL C
SCALE 1 : 4
3
6
DETAIL E
SCALE 1 : 4
23
17
22
24
DETAIL D
SCALE 1 : 4
25
27
26
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
L
REMOVED 5520001, UPDATED NEXT
ASSEMBLIES
10/10/2018 TM 01011
M
ADDED 5535357, 5530093, 5545005, AND
5580012, REPLACED 5530750 WITH 5530799
02/20/2020 TM 01107
N
REPLACED 5505001 WITH 5505113, REMOVED
(2) 5540075
10/05/2020 TM 01215
NEXT ASSEMBLY
5250083
5250084
5250088
5250203
5250254
5250266
5250268
5250314
5250315
ITEM NO PART NUMBER DESCRIPTION QTY REV
1 5505113 2 POST SAFETY CLEVIS PIN 2 H
2 5715196 D2/XPR POLYETHYLENE COVER BLOCK 105 x 80 2 D
3 5535022 NUT 9/16"-18 JN 1 -
4 5550113 FTG ELB -04 NPT L x -04 JIC 2 -
5 5550183 FTG ELB -06 JIC -06L ORB 1 -
6 5550003 FTG TEE -04JIC -04JIC -06JIC 1 -
7 5505350 MODEL#211 HAIR PIN/ LARGE 2 -
8 5530261 PHPS M6 x 1 x 10 4 -
9 5545347 WASHER, M12 FLAT WASHER 2 -
10 5535354 NUT, M12 x1.75 2 -
11 5535001 NUT M8 x 1.25 NL 4 -
12 5530010 HHB M8 x 1.25 x 25 4 -
13 5545200 WASHER M10 x Ø18 SL 4 -
14 5535998 NUT M10 x 1.5 4 -
15 5530760 HHB M10 x 1.5 x 38 4 -
16 5540075 R.H., 2.5 WIRE DIA., Ø20.5 x 75 LG 2 B
17 5530799 HSDS M4.2 x 1.41 x 20 2 -
18 5545535 C WASHER SHIM FOR LIFTS 20 -
19 5545341 WASHER M10 x Ø20 FLAT 4 -
20 5535013 NUT M10 x 1.5 NL 4 -
21 5505031 ROTOR CLIP 12mm SS 1 -
22 5530115 BHS 6-32 x 1.25 2 -
23 5535190 HN 6-32 2 -
24 5520140 ROMEX CONNECTOR 3/8 #6623 2 -
25 5530093 HHB M6 x 1 x 20 4 -
26 5545005 M6 FLAT WASHER 8 -
27 5535357 NUT M6 x 1.0 NL 4 -
28 5580012 LIQUID PTFE THREAD SEALANT 50ml 1 -
WHERE USED
D2-12C
D2-15C
XPR-10AXLS
XPR-10AS
XPR-10S
XPR-10XLS
XPR-12CL
XPR-12CL-LTA/15CL
XPR-18CL
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
N
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5174518
D2-12/15, XPR
CLEARFLOOR PARTS BAG
02/11/2010
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
OR 10/19/2020
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 1.

BendPak XPR-10S Specifications

General

Brand	BendPak
Model	XPR-10S
Category	Lifting Systems
Language	English
