10
Reminder: on AC Models rotate Cylinder so the
Hydraulic Fitting points as indicated in Fig 3.5.
6. Route both Hoses in their respective Columns PRIOR
to raising Columns to their vertical position. When routing
the Hydraulic Hose through the Columns, make sure to
route through the Retaining Clips welded inside each
Column. Make sure that the Hose is clear of any moving
parts. It may be necessary to tie Hose clear of
obstructions by using nylon tie straps or wire. Refer to
Step 10.
CAUTION !
Be sure to route the Hydraulic Hoses through the
retaining clips welded inside each Column.

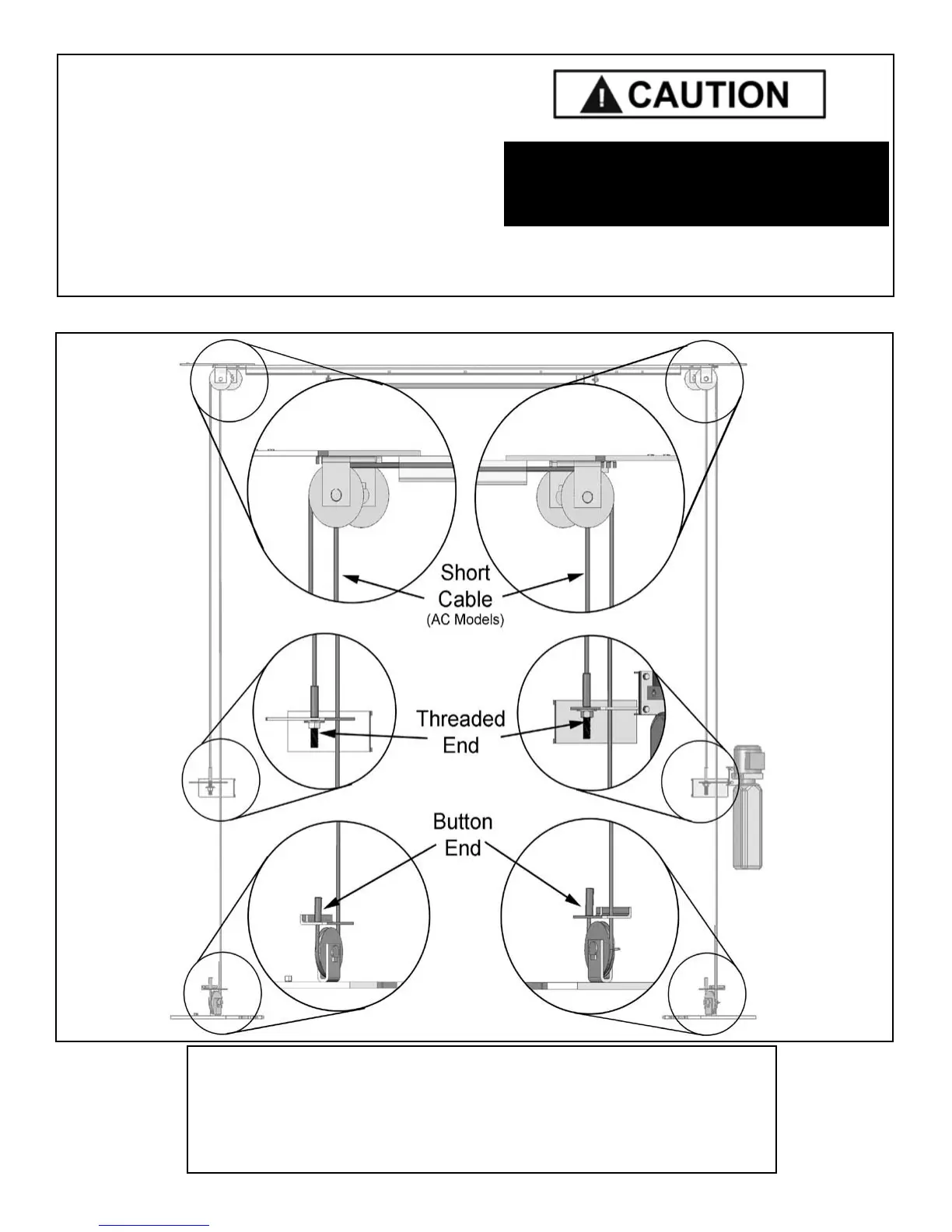

Fig 3.6
NOTE:
“C” models: both Equalizer Cables are the same length.
Top Trough Pulley ARE NOT staggered.
“AC” models: have one short and one long Equalizer Cable.
Top Trough Pulleys ARE staggered.
EQUALIZER CABLE ROUTING
To Next Page
