STEP 6
(Mounting The OFFSIDE Column)
1. Position the OFFSIDE Column at the designated chalk
locations and secure to the floor following the same
procedures as outlined in STEP FIVE; Items 1-6.
STEP 7
(Mounting the Top Trough Assembly)
1. Remove all of the Equalizer pulleys in preparation of
installing the Top Trough Assembly.
2. Using a lifting device, raise the Top Trough Assembly
into position on top of the Columns. Bolt to the columns
using the 10 mm Hex Bolts, Nuts and Washers.
3. YOU MUST POSITION THE SWITCH ENCLOSURE
ADJACENT POWERSIDE COLUMN. (See Fig. 7.1)
14
NOTE:
In order to route the Equalizer Cables
the Pulleys must be removed.
WARNING !
If the anchor bolts were loosened to aid on the
installation of the Top Trough, tighten anchor bolts
as indicated in Step 5 items 4 - 6.

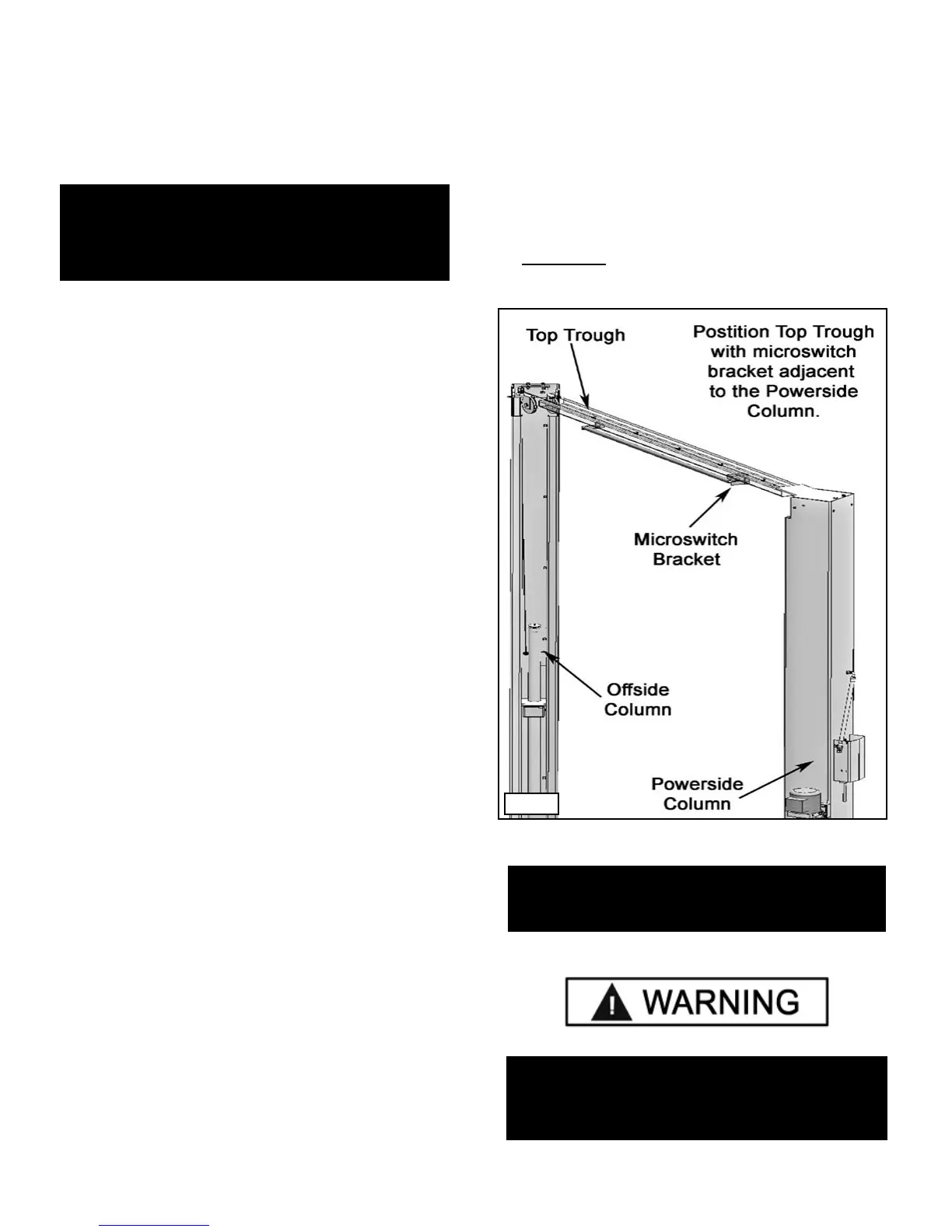

Fig 7.1
NOTE:
To ease the installation of the Top Trough, it helps
to keep the anchor bolts loose on one of the
Columns until the Top Trough is Mounted.
