BendPak XpR-18C User Manual

21

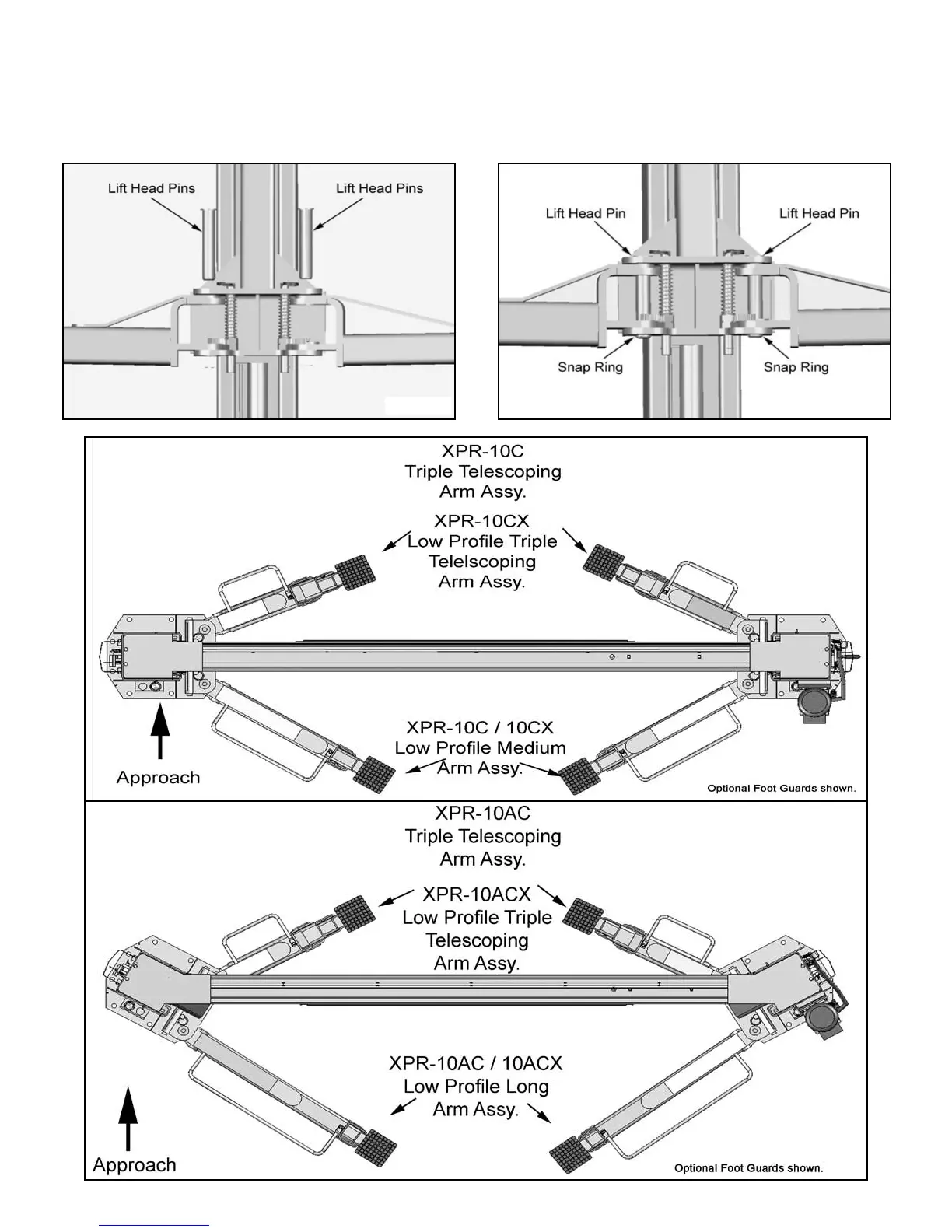

STEP 14
(Installing the Lift Arms)
1. Place the appropriate Lift Arm Assembly in the Lift
Heads. (See Fig. 14.3- 14.4)
2. Install the Lift Head Pins into the Lift Head and through
the holes in the Arm Assembly. (See Fig. 14.1)
3. Install the Snap Ring into the groove in the Lift Head
Pin on under side of the Lift Head. (See Fig. 14.2)
.
Fig. 14.1
Fig. 14.2
Fig. 14.4
Fig. 14.3
