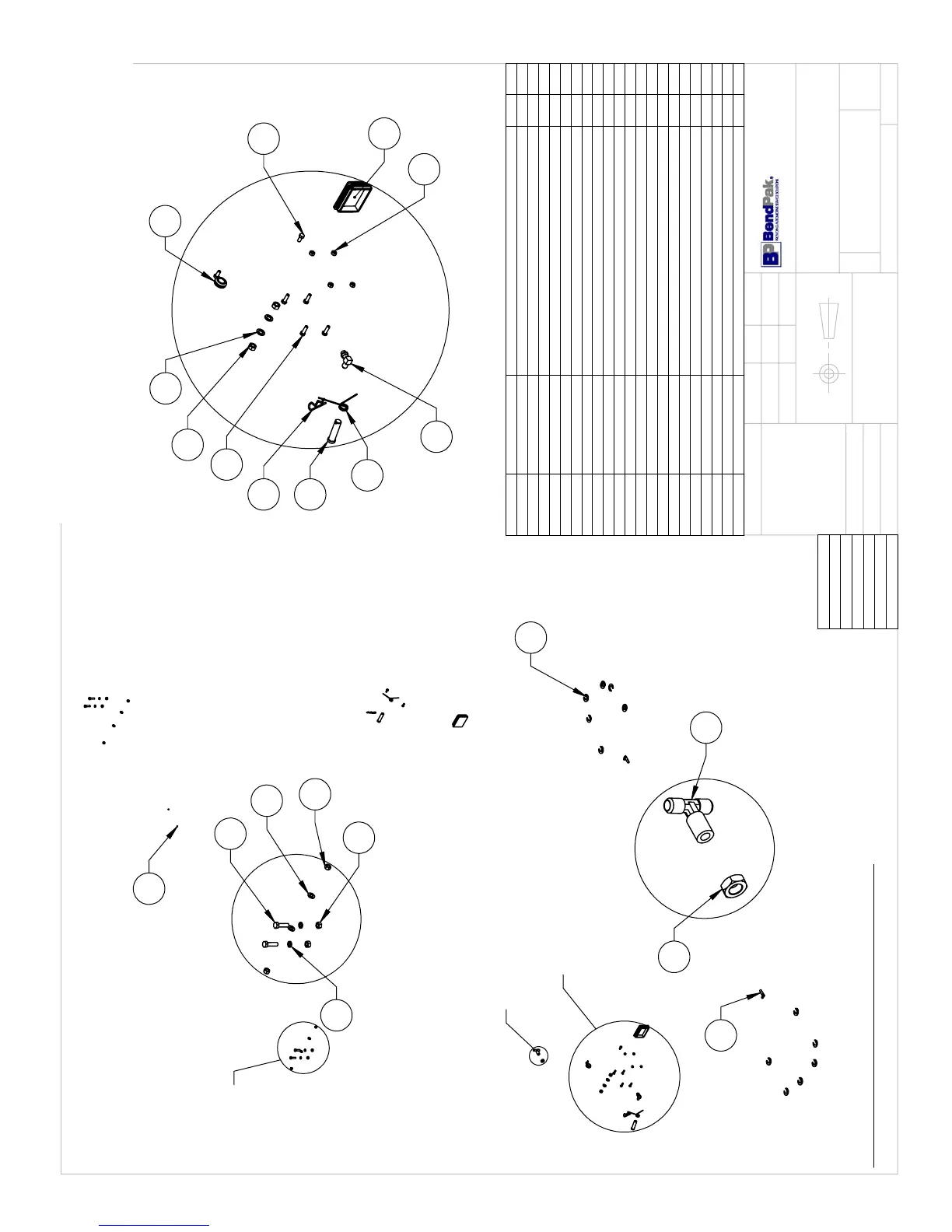

DIMENSIONS ARE IN MM
☺
A
B
C
4
18
19
DETAIL A
SCALE 1 : 12
16
14
15
21
20
DETAIL B
SCALE 1 : 12
1
17
7
11
8
5
13
12
2
9
10
DETAIL C
SCALE 1 : 4
3
6
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE
02/11/2010
TM
00293
B
REMOVED 5545202 AND 5700400, ADDED
(4) 5535013, (4) 5545341
04/15/2010
TM
00346
NEXT ASSEMBLY
5250125
5250133
5250230
5250231
5250232
5250233
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5505113
PL-6000/XPR SERIES SAFETY CLEVIS PIN
2
D
2 5715196
XPR PLASTIC COVER BLOCK 105 x 80
2
A
3 5535022
NUT 9/16"-18 JN
1
-
4 5550113
FTG ELB -04 NPT L x -04 JIC
2
-
5 5550183
FTG ELB -06 JIC -06L ORB
1
-
6 5550003
FTG TEE -04JIC -04JIC -06JIC
1
-
7 5505350 MODEL#211 HAIR PIN/ LARGE 2
-
8 5530114
HHB M8 x 1.25 x 18
4
-
9 5545347
WASHER, M12 FLAT WASHER
2
-
10 5535354
HEX NUT M12 x1.75
2
-
11 5520001
RUBBER GROMMET, 3/4 I.D.
1
-
12 5535001
NUT M8 x 1.25 NL
4
-
13 5530010
HHB M8 x 1.25 x 25
4
-
14 5545251
WASHER M10 x 18mm SL
4
-
15 5535998
NUT M10 x 1.5
4
-
16 5530760
HEX HEAD BOLT M10x1.25x35
4
-
17 5540001
2.5 WIRE DIA., Ø25.5x150 LG.
2
-
18 5530750
STS M4.2 x 1.7 x 6
2
-
19 5545535
C WASHER SHIM FOR LIFTS
20
-
20 5545341
WASHER M10 x Ø20 FLAT
4
-
21 5535013
NUT M10 x 1.5 NL
4
-
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
SIZE:
MATERIAL:
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5174518
XPR-10/12C/15C/18C
PARTS BAG
---
---
02/11/2010
DO NOT SCALE DRAWING
1:30
SCALE:
THIRD ANGLE PROJECTION
AC
04/30/2010
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
