XPR-9 Series Two-Post Lifts
64
P/N 5900371 — Rev. D2 — May 2023

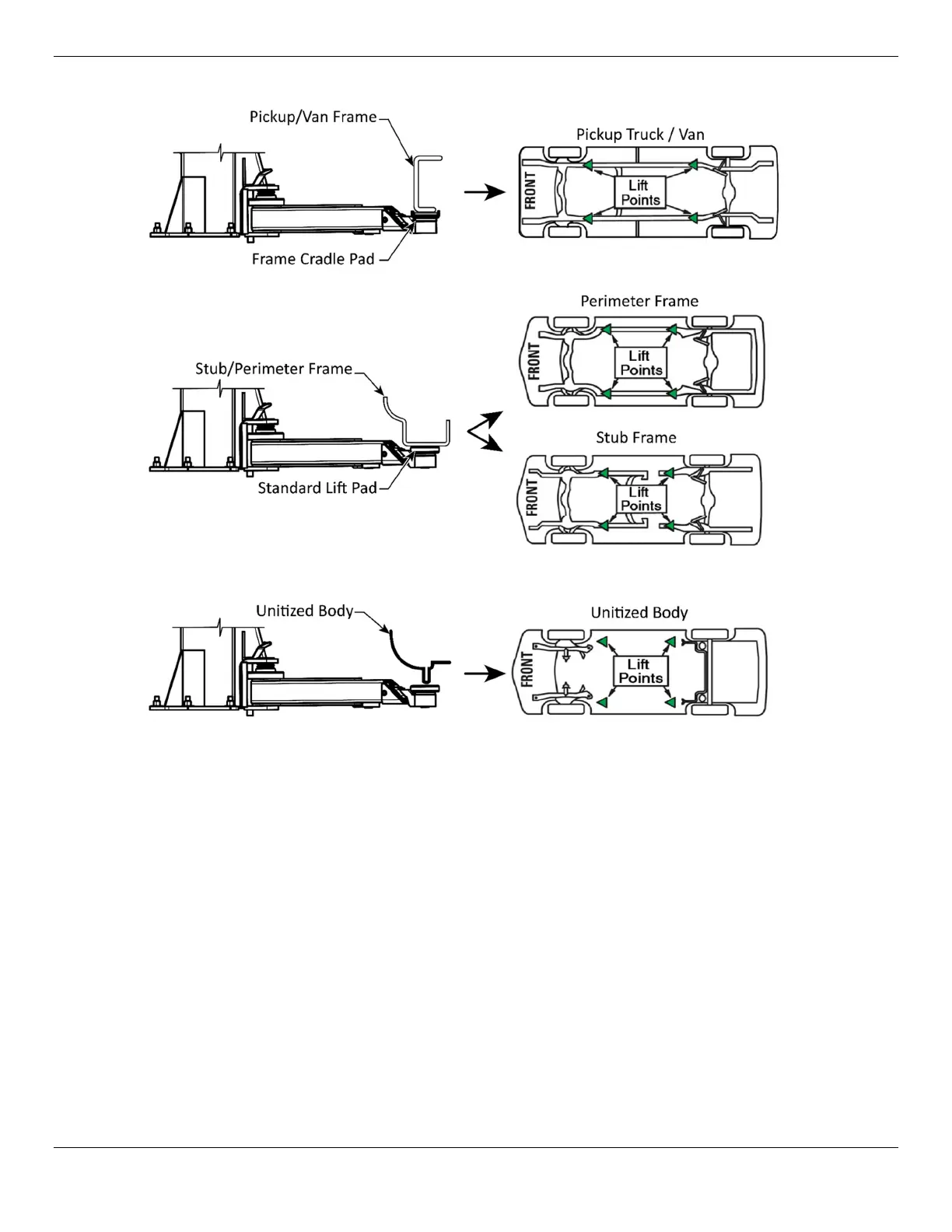

Typical Lifting Points
⚠ WARNING Before attempting to lift a Vehicle verify:
The Vehicle Frame is strong enough to support its weight and has not been weakened or
compromised by modification, damage, or corrosion.
The Vehicle individual axle weight does not exceed one-half the Lift capacity.
The Lift Adapters are in secure contact with the Frame at the Vehicle manufacturers’
recommended Lift Points.
The Vehicle is stable on the Lift and the center of gravity is not shifted making the Vehicle
off balance.
7. Adjust the Lift Arms under the Vehicle so the Adapters are directly under the Lifting Points for
the Vehicle you are raising.
If necessary, use optional Auxiliary Adapters for extra height.
8. Raise the Lift until just before the Adapters contact the Lifting Points.
9. Check the Arm Restraint Gears on all four Lift Arms to make sure they are engaged.
If they are not engaged, move the Lift Arms back and forth until they engage.
