BendPak XPR-9FD User Manual

13
STEP 8
( Installing the Safeties and Safety cable )

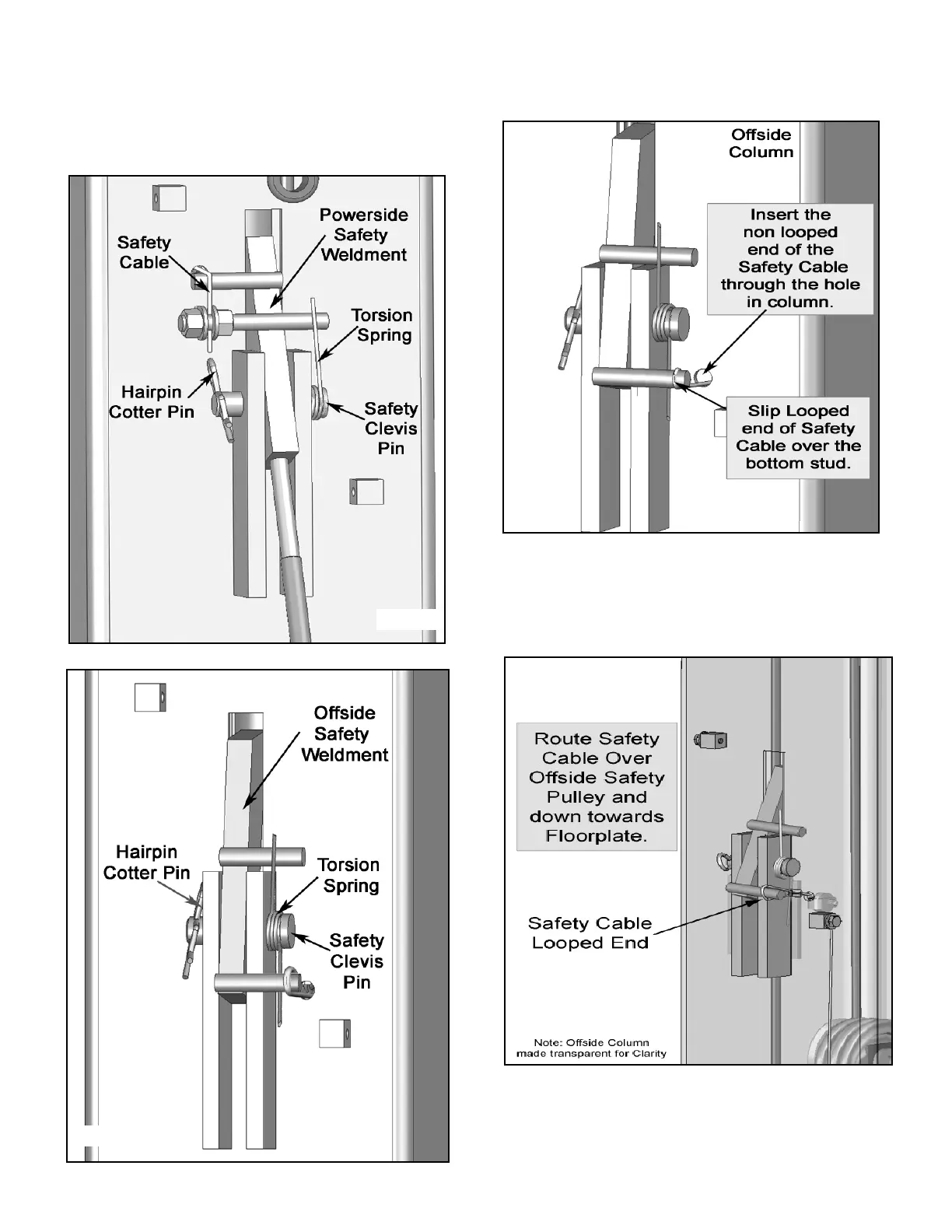

1. Install Safety Weldments into each respective Column.
(See Figs 8.1 & 8. 2.)
2. From the Offside Column insert the non looped end of
the Safety Cable through the hole located to the right of the
Offside Safety Weldment. (See Fig 8.3)
3. Route the Cable over the Safety Cable Pulley and take
it down to the Base Plate Pulley. (See Fig 8.4)
Fig 8.1
Fig 8.2
Fig 8.3
Fig 8.4.
